Home » Shop By Category » Drill Spares and Parts » Elu Core Drills and Diamond Drills Spares and Parts

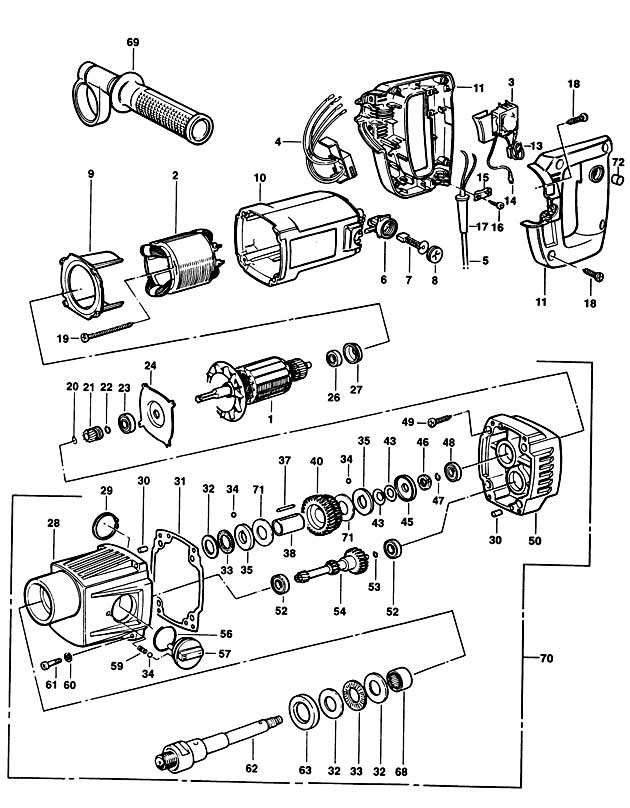

Elu DIAMANT-1-B Type 1 Diamond Drill Spare Parts

DIAMANT-1-B

Popular Parts

Elu DIAMOND DRILL SWITCH KIT [No Longer Available] 249579-00 Elu DIAMOND DRILL SWITCH KIT [No Longer Available] 249579-00 No Longer Available
Elu [NO LONGER AVAILABLE] BRUSH CAP 448084-01 Elu [NO LONGER AVAILABLE] BRUSH CAP 448084-01 No Longer Available
Elu BRUSHBOX SA 448083-01 Elu BRUSHBOX SA 448083-01 £6.99 (inc VAT)

    (Ex VAT) Inc VAT
Elu ARMATURE SA 1 - Elu ARMATURE SA
DIAMANT-1-B-1-1-248158-00 		£125.60 £150.72

ADD
Elu FIELD No Longer Available 2 - Elu FIELD No Longer Available
DIAMANT-1-B-1-2-587020-00 		- - No Longer Available
Elu DIAMOND DRILL SWITCH KIT [No Longer Available] 3 - Elu DIAMOND DRILL SWITCH KIT [No Longer Available]
DIAMANT-1-B-1-3-249579-00 		- - No Longer Available
Elu BRUSHBOX SA 6 - Elu BRUSHBOX SA
DIAMANT-1-B-1-6-448083-01 		£5.83 £6.99

ADD
Elu BRUSH 240v 7 - Elu BRUSH 240v
DIAMANT-1-B-1-7-248155-00 		£11.66 £13.99

ADD
Elu [NO LONGER AVAILABLE] BRUSH CAP 8 - Elu [NO LONGER AVAILABLE] BRUSH CAP
DIAMANT-1-B-1-8-448084-01 		- - No Longer Available
Elu BAFFLE FAN 9 - Elu BAFFLE FAN
DIAMANT-1-B-1-9-447786-00 		£3.33 £3.99

ADD
Elu FIELDCASE 10 - Elu FIELDCASE
DIAMANT-1-B-1-10-447799-00 		£9.99 £11.99

ADD
Elu HANDLE SA [No Longer Available] 11 - Elu HANDLE SA [No Longer Available]
DIAMANT-1-B-1-11-572000-01 		- - No Longer Available
Elu CAPACITOR [NO LONGER AVAILABLE] 13 - Elu CAPACITOR [NO LONGER AVAILABLE]
DIAMANT-1-B-1-13-320842-03 		- - No Longer Available
Elu CABLE CLAMP 15 - Elu CABLE CLAMP
DIAMANT-1-B-1-15-910556 		£1.66 £1.99

ADD
Elu Black & Decker and Elu SCREW 16 - Elu Black & Decker and Elu SCREW
DIAMANT-1-B-1-16-949896-12 		£1.66 £1.99

ADD
Elu CORD PROTECTOR 17 - Elu CORD PROTECTOR
DIAMANT-1-B-1-17-403395-00 		£1.66 £1.99

ADD
Elu SCREW 18 - Elu SCREW
DIAMANT-1-B-1-18-330019-13 		£1.66 £1.99

ADD
Elu SCREW 19 - Elu SCREW
DIAMANT-1-B-1-19-844217-03 		£1.66 £1.99

ADD
Elu CIRCLIP 20 - Elu CIRCLIP
DIAMANT-1-B-1-20-248311-00 		£1.66 £1.99

ADD
Elu PINION 21 - Elu PINION
DIAMANT-1-B-1-21-248035-00 		£66.66 £79.99

ADD
Elu O RING 22 - Elu O RING
DIAMANT-1-B-1-22-248036-00 		£4.16 £4.99

ADD
Elu BEARING 23 - Elu BEARING
DIAMANT-1-B-1-23-330003-64 		£4.99 £5.99

ADD
Elu PLATE 24 - Elu PLATE
DIAMANT-1-B-1-24-448079-00 		£3.33 £3.99

ADD
Elu BEARING 26 - Elu BEARING
DIAMANT-1-B-1-26-330003-04 		£4.16 £4.99

ADD
Elu SLEEVE 27 - Elu SLEEVE
DIAMANT-1-B-1-27-445217-02 		£1.66 £1.99

ADD
Elu GEARCASE SA 28 - Elu GEARCASE SA
DIAMANT-1-B-1-28-248075-00 		- - No Longer Available
Elu CIRCLIP 29 - Elu CIRCLIP
DIAMANT-1-B-1-29-278814-00 		£1.66 £1.99

ADD
Elu GASKET [NO LONGER AVAILABLE] 31 - Elu GASKET [NO LONGER AVAILABLE]
DIAMANT-1-B-1-31-248049-00 		- - No Longer Available
Elu RING 32 - Elu RING
DIAMANT-1-B-1-32-278811-00 		£2.49 £2.99

ADD
Elu No Longer Available BEARING 33 - Elu No Longer Available BEARING
DIAMANT-1-B-1-33-278810-00 		- - Contact Us For Price
Elu BALL 34 - Elu BALL
DIAMANT-1-B-1-34-832343 		£1.66 £1.99

ADD
Elu PIN 37 - Elu PIN
DIAMANT-1-B-1-37-278821-00 		- - No Longer Available
Elu 5 PIECE CLUTCH KIT 38 - Elu 5 PIECE CLUTCH KIT
DIAMANT-1-B-1-38-279196-00 		£82.49 £98.99

ADD
Elu GEAR SA 40 - Elu GEAR SA
DIAMANT-1-B-1-40-248057-00 		£117.49 £140.99

ADD
Elu WASHER 43 - Elu WASHER
DIAMANT-1-B-1-43-248058-00 		£1.66 £1.99

ADD
Elu CUP 45 - Elu CUP
DIAMANT-1-B-1-45-248060-00 		£19.16 £22.99

ADD
Elu NUT 46 - Elu NUT
DIAMANT-1-B-1-46-248061-00 		£4.99 £5.99

ADD
Elu SEAL 47 - Elu SEAL
DIAMANT-1-B-1-47-278699-00 		£1.66 £1.99

ADD
Elu BEARING 6001 RSZ 48 - Elu BEARING 6001 RSZ
DIAMANT-1-B-1-48-050830000 		- - No Longer Available
Elu SCREW 49 - Elu SCREW
DIAMANT-1-B-1-49-330019-42 		£1.66 £1.99

ADD
Elu GEARCASE 50 - Elu GEARCASE
DIAMANT-1-B-1-50-248065-04 		£79.99 £95.99

ADD
Elu BEARING [NO LONGER AVAILABLE] 52 - Elu BEARING [NO LONGER AVAILABLE]
DIAMANT-1-B-1-52-832337 		- - No Longer Available
Elu SEAL No Longer Available 53 - Elu SEAL No Longer Available
DIAMANT-1-B-1-53-278778-00 		- - No Longer Available
Elu INTERGEAR 54 - Elu INTERGEAR
DIAMANT-1-B-1-54-248069-00 		£107.49 £128.99

ADD
Elu RING 56 - Elu RING
DIAMANT-1-B-1-56-832348 		£1.66 £1.99

ADD
Elu KNOB 57 - Elu KNOB
DIAMANT-1-B-1-57-248071-00 		£27.49 £32.99

ADD
Elu SPRING 59 - Elu SPRING
DIAMANT-1-B-1-59-832344 		£1.66 £1.99

ADD
Elu WASHER 60 - Elu WASHER
DIAMANT-1-B-1-60-832364 		£1.66 £1.99

ADD
Elu SCREW.TEMP 61 - Elu SCREW.TEMP
DIAMANT-1-B-1-61-248063-00 		£1.66 £1.99

ADD
Elu SEAL [NO LONGER AVAILABLE] 63 - Elu SEAL [NO LONGER AVAILABLE]
DIAMANT-1-B-1-63-278812-00 		- - No Longer Available
Elu BEARING [No Longer Available] 68 - Elu BEARING [No Longer Available]
DIAMANT-1-B-1-68-278809-00 		- - No Longer Available
Elu (NO LONGER AVAILABLE) HANDLE SIDE SA 69 - Elu (NO LONGER AVAILABLE) HANDLE SIDE SA
DIAMANT-1-B-1-69-248190-00 		- - No Longer Available
Elu BLANK No Longer Available 174 - Elu BLANK No Longer Available
DIAMANT-1-B-1-174-917650-01 		- - No Longer Available
Elu SOCKET [NO LONGER AVAILABLE] 836 - Elu SOCKET [NO LONGER AVAILABLE]
DIAMANT-1-B-1-836-559505-99 		- - No Longer Available
Elu SOCKET [NO LONGER AVAILABLE] 837 - Elu SOCKET [NO LONGER AVAILABLE]
DIAMANT-1-B-1-837-559569-99 		- - No Longer Available
