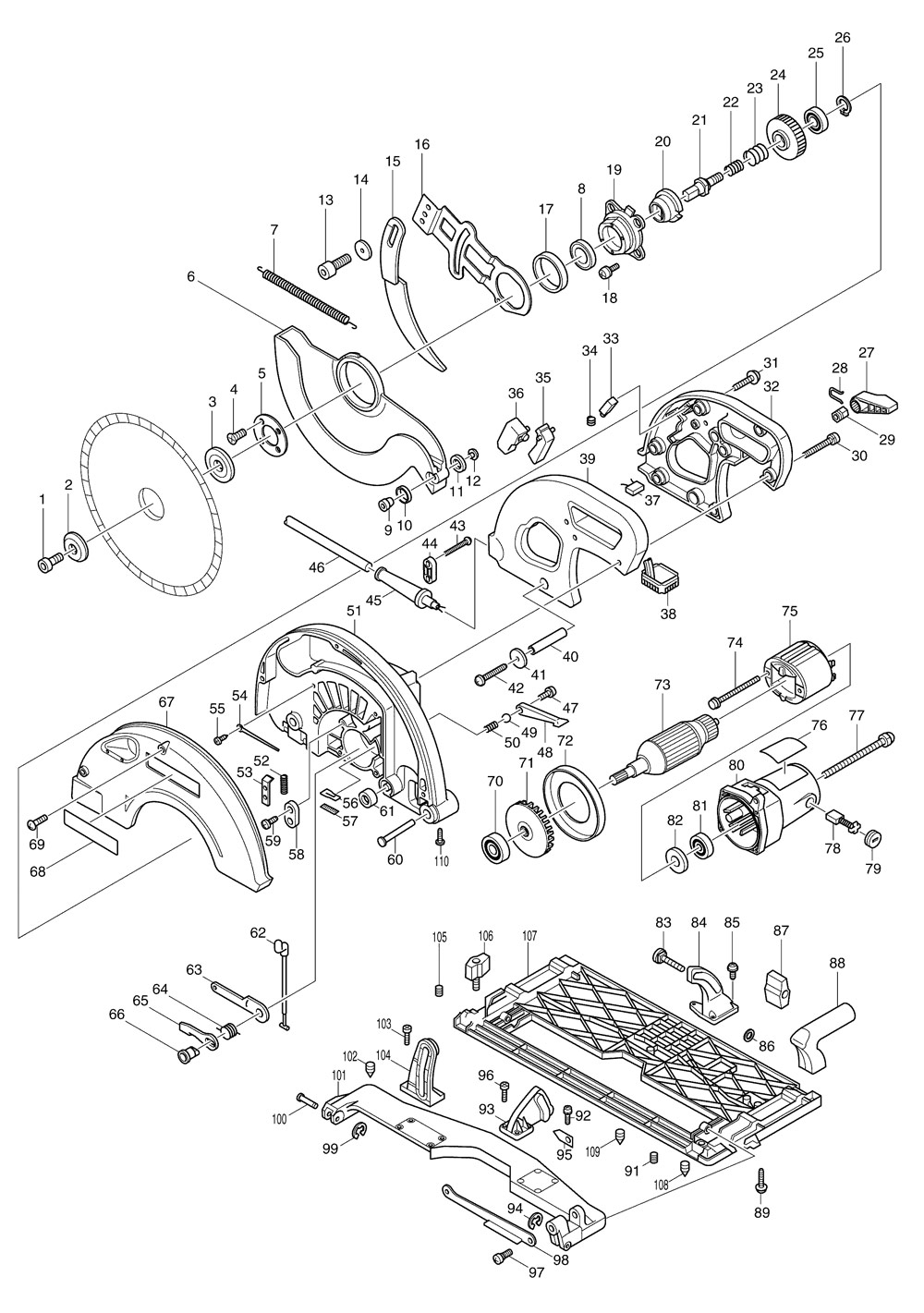

Makita 5143R Corded 355mm Circular Saw 110v & 240v Spare Parts

5143R

	(Ex VAT)	Inc VAT
1 - Makita HEX SOCKET HD BOLT M10X25 5103 5143R--1-266083-2	£5.83	£6.99	ADD
2 - Makita OUTER FLANGE 65 5143R 5143R--2-224327-6	£9.16	£10.99	ADD
3 - Makita INNER FLANGE 65 5143R 5143R--3-224328-4	£10.83	£12.99	ADD
4 - Makita COUNTERSUNK SCREW M5X16 5143R--4-912222-9	£0.83	£0.99	ADD
5 - Makita BEARING RETAINER 42-68 5143R 5143R--5-285683-9	£4.16	£4.99	ADD
6 - Makita SAFETY COVER 5143R 5143R--6-316751-8	£42.49	£50.99	ADD
6 - Makita SAFETY COVER 5143R 5143R--6-318063-5	£42.49	£50.99	ADD
6 - Makita INSULATION WASHER 5903R/3612/2 5143R--6-681633-6	£1.66	£1.99	ADD
7 - Makita TENSION SPRING 5143R* 5143R--7-231803-3	£5.83	£6.99	ADD
7 - Makita TENSION SPRING 5143R 5143R--7-231842-3	£5.83	£6.99	ADD
8 - Makita BALL BEARING 6204DDW 5143R--8-211329-1	£6.66	£7.99	ADD
9 - Makita ROLLER PIN 6 5903R/5603R/5604R 5143R--9-415437-2	£1.66	£1.99	ADD
10 - Makita ROLLER 20 5903R/5603R/5604R 5143R--10-415438-0	£1.66	£1.99	ADD
11 - Makita ROLLER 20 5903R/5603R/5604R 5143R--11-415438-0	£1.66	£1.99	ADD
12 - Makita ROLLER PIN 6 5903R/5603R/5604R 5143R--12-415437-2	£1.66	£1.99	ADD
13 - Makita HEX SOCKET HD BOLT M8X16 3 5143R--13-922422-3	£1.66	£1.99	ADD
14 - Makita FLAT WASHER 8 5143R--14-267147-5	£2.49	£2.99	ADD
14 - Makita FLAT WASHER 8 DCS230T/5103R 5143R--14-267284-5	£1.66	£1.99	ADD
15 - Makita RIVING KNIFE 5143R--15-165151-7	£38.33	£45.99	ADD
15 - Makita RIVING KNIFE 5143R 5143R--15-345751-1	£31.66	£37.99	ADD
16 - Makita RIVING KNIFE HOLDER 5143R--16-344297-4	£9.99	£11.99	ADD
16 - Makita RIVING KNIFE HOLDER 5143R 5143R--16-345753-7	£23.33	£27.99	ADD
17 - Makita THICKNESS RING 5143R 5143R--17-344304-3	£3.33	£3.99	ADD
18 - Makita PAN HD SCREW 5X16 W/CP 5143R--18-911223-4	£0.83	£0.99	ADD
19 - Makita BEARING BOX 5143R 5143R--19-316753-4	£22.49	£26.99	ADD
20 - Makita LOCK SLEEVE 5103R/5143R 5143R--20-322830-2	£38.33	£45.99	ADD
21 - Makita SPINDLE 5143R 5143R--21-322828-9	£21.66	£25.99	ADD
22 - Makita BALL BEARING 629LLB BPJ141/181 5143R--22-210042-8	£2.49	£2.99	ADD
22 - Makita BALL BEARING 629LLB HR160DWH* 5143R--22-211056-0	£2.49	£2.99	ADD
22 - Makita LOCK SPRING 20 5143R 5143R--22-231969-9	£9.16	£10.99	ADD
23 - Makita LOCK SPRING 27 5103R/5143R 5143R--23-231968-1	£18.33	£21.99	ADD
24 - Makita HELICAL GEAR 57 5143R 5143R--24-226453-7	£42.49	£50.99	ADD
25 - Makita BALL BEARING 6001 HM1300B/5103 5143R--25-211104-5	£6.66	£7.99	ADD
26 - Makita EXT DIN 471 CIRCLIP-12 5143R--26-961052-5	£0.83	£0.99	ADD
27 - Makita LEVER 54 5903R/5603R/BSR730S 5143R--27-272230-5	£2.49	£2.99	ADD
28 - Makita RING SPRING 12 5143R--28-231955-0	£1.66	£1.99	ADD
29 - Makita VERY SPECIAL HEX NUT 5903R 5143R--29-252134-7	£3.33	£3.99	ADD
30 - Makita PAN HDSCREW M5X40 W/CP 5143R--30-911263-2	£1.66	£1.99	ADD
31 - Makita PT SCREW 5X25 5143R--31-266041-8	£1.66	£1.99	ADD
32 - Makita HANDLE SET 5103R/5143R 5143R--32-182773-8	£31.66	£37.99	ADD
33 - Makita LOCK-OFF BUTTON 5903R/5603R/51 5143R--33-415440-3	£2.49	£2.99	ADD
34 - Makita COMPRESSION SPRING 4 5143R--34-231230-4	£1.66	£1.99	ADD
35 - Makita SWITCH LEVER 5903R/5603R/5143R 5143R--35-415439-8	£2.49	£2.99	ADD
36 - Makita SWITCH TG70B UC3530A/5903R 5143R--36-651923-1	£14.16	£16.99	ADD
36 - Makita SWITCH TG72B 110V BUC121/122 5143R--36-651938-8	£13.33	£15.99	ADD
37 - Makita NOISE SUPPRESSOR/CONDENSOR 645 5143R--37-645105-5	£2.49	£2.99	ADD
37 - Makita NOISE SUPPRESSOR 3901/5143R 5143R--37-645173-8	£4.16	£4.99	ADD
37 - Makita NOISE SUPPRESSOR MT814/815 5143R--37-645200-1	£2.49	£2.99	ADD
38 - Makita CONTROLLER 110V 5103R/5143R 5143R--38-631208-1	£99.99	£119.99	ADD
38 - Makita CONTROLLER 240V 5103R 5143R--38-631209-9	£79.99	£95.99	ADD
39 - Makita HANDLE SET 5103R/5143R 5143R--39-182773-8	£31.66	£37.99	ADD
40 - Makita PIPE 9 5103R/5143R 5143R--40-331469-0	£2.49	£2.99	ADD
41 - Makita FLAT WASHER 8 DIN125-B 5* 5143R--41-941201-0	£0.83	£0.99	ADD
42 - Makita CAP SQUARE NECK BOLT M8X98 590 5143R--42-266019-1	£2.49	£2.99	ADD
43 - Makita PT SCREW 4X18 KP0810C* 5143R--43-265995-6	£0.83	£0.99	ADD
44 - Makita STRAIN RELIEF HS7100/BO5041 5143R--44-687052-4	£1.66	£1.99	ADD
44 - Makita STRAIN RELIEF 110V HS6100/7100 5143R--44-687053-2	£1.66	£1.99	ADD
44 - Makita STRAIN RELIEF 9079F 110/LF100 5143R--44-687054-0	£1.66	£1.99	ADD
44 - Makita STRAIN RELIEF UH4570/55/5580/6 5143R--44-687063-9	£0.83	£0.99	ADD
45 - Makita CORD GUARD UH45570/5570/5580 5143R--45-682503-2	£2.49	£2.99	ADD
45 - Makita CORD GUARD 10-90 HS6100/7100 5143R--45-682505-8	£2.49	£2.99	ADD
45 - Makita CORD GUARD 12-90 110V 9029 5143R--45-682506-6	£2.49	£2.99	ADD
45 - Makita CORD GUARD HS6100/7100/MT852 5143R--45-682540-6	£2.49	£2.99	ADD
46 - Makita POWER SUPPLY CORD 2.5-2-5.0 5143R--46-663827-5	-	-	Contact Us For Price
46 - Makita POWER SUPPLY CORD 2.5-2-5.0 5143R--46-663872-0	-	-	Contact Us For Price
46 - Makita POWER SUPPLY CORD 2.5-2-5.0 5143R--46-665555-8	-	-	Contact Us For Price
46 - Makita POWER SUPPLY CORD 1.5-2-5.0 5143R--46-692127-6	£19.16	£22.99	ADD
46 - Makita POWER SUPPLY CORD 1.00-2-5.0 5143R--46-692541-6	£20.83	£24.99	ADD
47 - Makita PAN HEAD SCREW M5X12 5143R--47-911213-7	£0.83	£0.99	ADD
48 - Makita LEVER 110 5143R--48-415908-9	-	-	Contact Us For Price
48 - Makita LEVER 110 5143R 5143R--48-416250-1	£3.33	£3.99	ADD
49 - Makita STEEL BALL 7.4/7.8/7.9 5143R--49-216004-4	£0.83	£0.99	ADD
50 - Makita COMPRESSION SPRING 7 5143R--50-231240-1	£0.83	£0.99	ADD
51 - Makita BLADE CASE COMPLETE 5143R--51-152497-0	-	-	Contact Us For Price
51 - Makita BLADE CASE COMPLETE 5143R--51-152546-3	-	-	Contact Us For Price
51 - Makita BLADE CASE COMP 5143R* 5143R--51-152549-7	£94.99	£113.99	ADD
51 - Makita BLADE CASE COMP 5143R 5143R--51-158091-6	£94.99	£113.99	ADD
52 - Makita COMPRESSION SPRING 5 5143R 5143R--52-233140-1	£2.49	£2.99	ADD
53 - Makita SHAFT LOCK 5143R 5143R--53-344294-0	£4.16	£4.99	ADD
54 - Makita GUIDE ROD 5143R 5143R--54-322829-7	£1.66	£1.99	ADD
55 - Makita CT SCREW M4X12 LC1230/LS1216* 5143R--55-266026-4	£0.83	£0.99	ADD
56 - Makita FELT 5103R/5143R 5143R--56-443098-8	£1.66	£1.99	ADD
57 - Makita PLATE 5103R/5143R 5143R--57-344263-1	£2.49	£2.99	ADD
58 - Makita STRAIN RELIEF 110V HS6100/7100 5143R--58-687053-2	£1.66	£1.99	ADD
59 - Makita CT SCREW M4X16 5143R--59-266034-5	£0.83	£0.99	ADD
60 - Makita PIN 10 5103R 5143R--60-268008-2	£3.33	£3.99	ADD
60 - Makita PIN 10 5143R 5143R--60-268018-9	£4.99	£5.99	ADD
61 - Makita RUBBER RING 8 5143R/SR2600/590 5143R--61-262007-6	£1.66	£1.99	ADD
61 - Makita CUSHION 5143R 5143R--61-421966-5	£1.66	£1.99	ADD
62 - Makita WIRE ROPE 5143R 5143R--62-353017-5	£4.16	£4.99	ADD
63 - Makita ARM 5143R 5143R--63-344295-8	£1.66	£1.99	ADD
64 - Makita TORSION SPRING 23 5143R 5143R--64-231625-1	£1.66	£1.99	ADD
65 - Makita CAM PLATE 5143R 5143R--65-344296-6	£2.49	£2.99	ADD
66 - Makita PIN 12 5143R 5143R--66-268009-0	£9.99	£11.99	ADD
67 - Makita BLADE CASE COVER 5143R 5143R--67-415817-2	£27.49	£32.99	ADD
68 - Makita MAKITA LABEL 5143R 5143R--68-819091-8	£2.49	£2.99	ADD
69 - Makita CT SCREW M5X20 5903R 5143R--69-266036-1	£0.83	£0.99	ADD
70 - Makita BALL BEARING 6002DDW 5143R--70-211227-9	£6.66	£7.99	ADD
70 - Makita BALL BEARING 6002DDW GA5020/21 5143R--70-211236-8	£6.66	£7.99	ADD
71 - Makita FAN 74 5103R/5143R 5143R--71-241889-9	£5.83	£6.99	ADD
72 - Makita BAFFLE PLATE 5103R/5143R 5143R--72-415768-9	£3.33	£3.99	ADD
73 - Makita ARMATURE ASSY 110V 5143R 5143R--73-516666-1	£63.33	£75.99	ADD
73 - Makita ARMATURE ASSY 240V 5143R 5143R--73-516668-7	£63.33	£75.99	ADD
74 - Makita PAN HEAD SCREW M5X90 5143R--74-911947-2	£1.66	£1.99	ADD
75 - Makita FIELD 110V 5143R 5143R--75-596321-1	£35.83	£42.99	ADD
75 - Makita FIELD 240V 5143R 5143R--75-596323-7	£52.49	£62.99	ADD
75 - Makita FIELD 110V 5143R* 5143R--75-636116-1	£35.83	£42.99	ADD
75 - Makita FIELD 220/240V 5143R--75-636118-7	-	-	Contact Us For Price
75 - Makita FIELD 240V 5143R 5143R--75-636173-9	£35.83	£42.99	ADD
76 - Makita NAME PLATE 5143R 5143R--76-857936-2	£2.49	£2.99	ADD
77 - Makita PAN HD SCREW M5X65 5103R 5143R--77-911288-6	£1.66	£1.99	ADD
78 - Makita Replacement Carbon Brushes Brush Pair CB-203 5143R--78-191953-5	£4.16	£4.99	ADD
79 - Makita BRUSH HOLDER CAP 7-18 GA7050/ 5143R--79-643700-5	£1.66	£1.99	ADD
80 - Makita MOTOR HOUSING 5103R/5143 5143R--80-158628-9	£27.49	£32.99	ADD
80 - Makita MOTOR HOUSING 110V 5103R/5143* 5143R--80-159813-7	£72.49	£86.99	ADD
80 - Makita MOTOR HOUSING 240V 5103R/5143* 5143R--80-159843-8	£66.66	£79.99	ADD
83 - Makita CAP SQ NECK BOLT M8X50* 5143R--83-923471-3	£1.66	£1.99	ADD
84 - Makita ANGULAR PLATE GUIDE 5143R 5143R--84-316747-9	£0.83	£0.99	ADD
85 - Makita CT SCREW M5X20 5903R 5143R--85-266036-1	£0.83	£0.99	ADD
86 - Makita FLAT WASHER 8 DIN125-B 5* 5143R--86-941201-0	£0.83	£0.99	ADD
87 - Makita WING NUT M8 SR2600 5143R--87-252626-6	£4.16	£4.99	ADD
88 - Makita GRIP 5143R 5143R--88-415815-6	£10.83	£12.99	ADD
89 - Makita PT SCREW 5X25 5143R--89-266041-8	£1.66	£1.99	ADD
90 - Makita PIN 8 5143R 5143R--90-268013-9	£4.99	£5.99	ADD
91 - Makita GRUB SCREW M4X5 5903R 5143R--91-265993-0	£1.66	£1.99	ADD
92 - Makita CT SCREW M4X12 LC1230/LS1216* 5143R--92-266026-4	£0.83	£0.99	ADD
93 - Makita ANGULAR PLATE 5143R--93-316746-1	-	-	Contact Us For Price
93 - Makita ANGULAR PLATE 5143R 5143R--93-316879-2	£9.16	£10.99	ADD
94 - Makita EXT E-RING JIS JE-6 5143R--94-961012-7	£0.83	£0.99	ADD
95 - Makita POINTER 5143R 5143R--95-343902-0	£2.49	£2.99	ADD
96 - Makita CT SCREW M5X20 5903R 5143R--96-266036-1	£0.83	£0.99	ADD
97 - Makita SHOULDER SCREW M5 JR3020 5143R--97-265011-4	£1.66	£1.99	ADD
98 - Makita LINK 5143R--98-344298-2	£7.49	£8.99	ADD
98 - Makita LINK 5143R 5143R--98-345722-8	£9.16	£10.99	ADD
99 - Makita EXT E-RING JIS JE-6 5143R--99-961012-7	£0.83	£0.99	ADD
100 - Makita PIN 8 5143R 5143R--100-268013-9	£4.99	£5.99	ADD
101 - Makita BASE BRIDGE 5143R--101-316750-0	-	-	Contact Us For Price
101 - Makita BASE BRIDGE 5143R 5143R--101-316880-7	£50.83	£60.99	ADD
102 - Makita HEX S SET SCREW M6X10 5143R 5143R--102-266085-8	£0.83	£0.99	ADD
103 - Makita CT SCREW M5X20 5903R 5143R--103-266036-1	£0.83	£0.99	ADD
104 - Makita DEPTH GUIDE 5143R 5143R--104-316748-7	£9.16	£10.99	ADD
105 - Makita GRUB SCREW M4X5 5903R 5143R--105-265993-0	£1.66	£1.99	ADD
106 - Makita SCREW M6X15 5008MB 5143R--106-251858-2	£1.66	£1.99	ADD
107 - Makita BASE 5143R 5143R--107-316752-6	£84.16	£100.99	ADD
108 - Makita HEX S SET SCREW M6X10 5143R 5143R--108-266085-8	£0.83	£0.99	ADD
109 - Makita HEX S SET SCREW M6X10 5143R 5143R--109-266085-8	£0.83	£0.99	ADD
110 - Makita CT SCREW M4X12 LC1230/LS1216* 5143R--110-266026-4	£0.83	£0.99	ADD
113 - Makita PACKING 5143R 5143R--113-442125-8	£1.66	£1.99	ADD
1001 - Makita T.C.T. SAW BLADE 355X20TX30 5143R--1001-A-80014	-	-	No Longer Available
1002 - Makita GUIDE RULE 5143R--1002-152498-8	£68.33	£81.99	ADD
1003 - Makita HEX. WRENCH 6 5143R--1003-783204-6	£1.66	£1.99	ADD
5001 - Makita SWITCH V-15-2A5 LS1040,5103R 5143R--5001-651941-9	£4.16	£4.99	ADD
5002 - Makita TERMINAL BLOCK 3612/5143R 5143R--5002-654560-0	£9.99	£11.99	ADD
5003 - Makita INSULATED CONNECTOR 3612C 5143R--5003-654510-5	£1.66	£1.99	ADD
5004 - Makita INSULATED RECEPTACLE DF1.25 5143R--5004-654079-9	£1.66	£1.99	ADD
5005 - Makita CONNECTOR 2-SD 5103R/1902/LS10 5143R--5005-654509-0	£0.83	£0.99	ADD
5006 - Makita INSULATED RECEPTACLE DF2-187A 5143R--5006-654082-0	£1.66	£1.99	ADD
5007 - Makita EARTH TERMINAL 1902/UH4500 5143R--5007-654051-1	£0.83	£0.99	ADD
5008 - Makita JOINT 5143R 5143R--5008-192490-2	£4.16	£4.99	ADD
