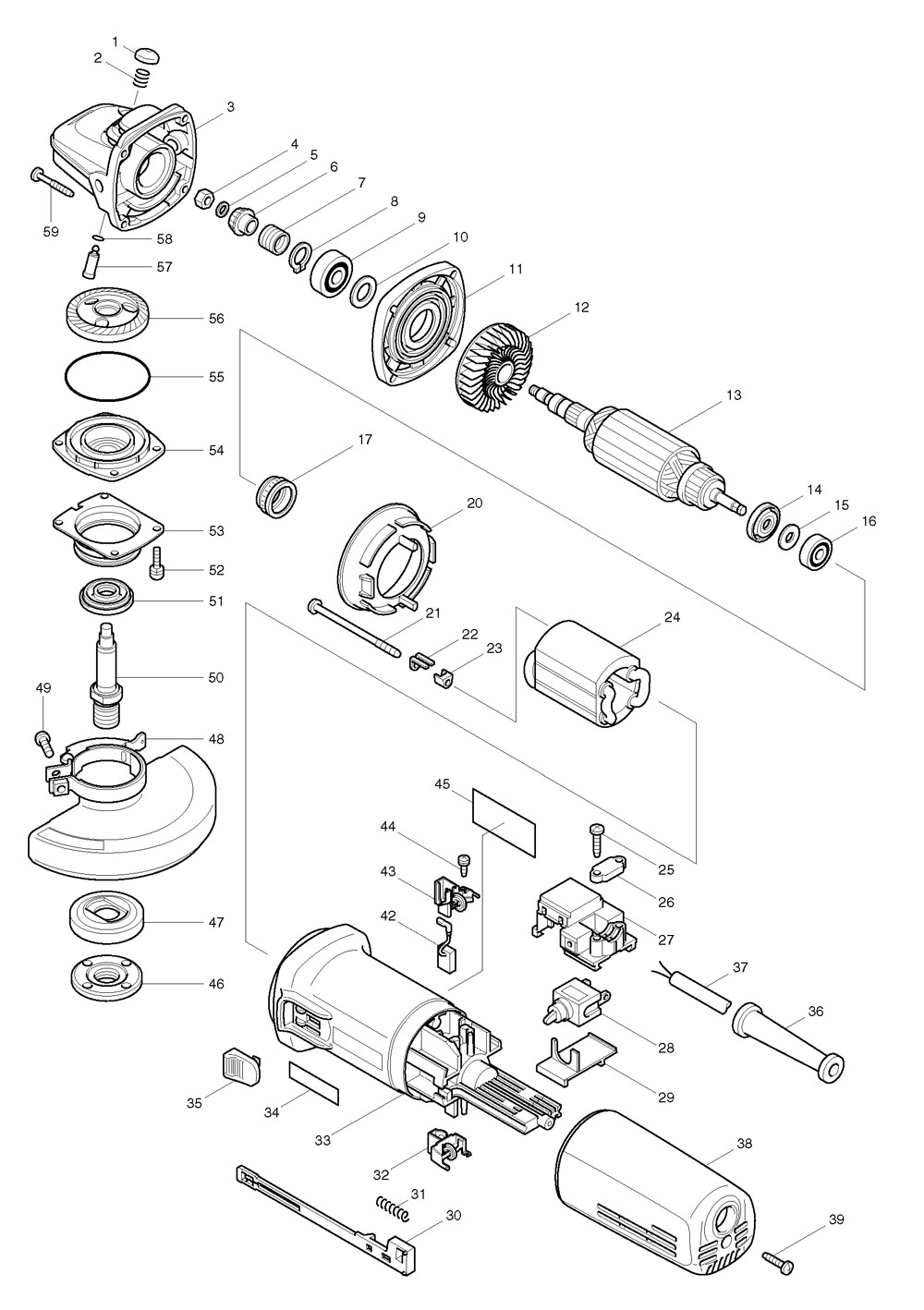

Makita 9564 Corded Angle Grinder 110v & 240v Spare Parts

9564

	(Ex VAT)	Inc VAT
1 - Makita PIN CAP 9564/65CV&DZ 9564--1-417236-8	£1.66	£1.99	ADD
1 - Makita PIN CAP 9564/65CV/DZ/H/9565CVL 9564--1-418067-8	£1.66	£1.99	ADD
3 - Makita GEAR HOUSING COMPLETE 9564--3-151991-9	£22.49	£26.99	ADD
3 - Makita GEAR HOUSING COMP 9564/65CV&D* 9564--3-153381-2	£23.33	£27.99	ADD
3 - Makita GEAR HOUSING COMP 9564/65CV/DZ 9564--3-153488-4	£22.49	£26.99	ADD
3 - Makita GEAR HOUSING COMP 9564/65CV&D* 9564--3-153718-3	£15.83	£18.99	ADD
4 - Makita HEX NUT M6* 9564--4-931303-0	£0.83	£0.99	ADD
5 - Makita NARROW WASHER 6 9564--5-253077-6	£0.83	£0.99	ADD
6 - Makita SPIRAL BEVEL GEAR 11 9564/65CV 9564--6-226794-1	£5.83	£6.99	ADD
6 - Makita COMPRESSION SPRING 8 9524NB BGA450 BGA452 RP1801 9564--6-233072-2	£0.83	£0.99	ADD
7 - Makita LOCK SPRING 12 GD0800/810C/956 9564--7-233901-9	£3.33	£3.99	ADD
8 - Makita EXT DIN 471 CIRCLIP-12 9564--8-961052-5	£0.83	£0.99	ADD
9 - Makita BALL BEARING 6001LLB 9565H/CVL 9564--9-211142-7	£4.99	£5.99	ADD
11 - Makita GEAR HOUSING COVER BO6040/9564 9564--11-317359-1	£4.16	£4.99	ADD
12 - Makita FAN 57 9564/65CV/DZ&H/SG1250 9564--12-240033-5	£4.16	£4.99	ADD
13 - Makita ARMATURE ASS'Y 115V 9564--13-515176-5	£53.33	£63.99	ADD
13 - Makita ARMATURE ASS'Y 230-240V 9564--13-515179-9	£53.33	£63.99	ADD
13 - Makita ARMATURE ASSY 110V 9564/65Z&H 9564--13-515231-3	£56.66	£67.99	ADD
13 - Makita ARMATURE ASSY 240V 9564/65Z&H 9564--13-515234-7	£56.66	£67.99	ADD
14 - Makita INSULATION WASHER GD0810C/9564 9564--14-681656-4	£1.66	£1.99	ADD
15 - Makita THIN BLUE WASHER JS1600 9564--15-253823-7	£0.83	£0.99	ADD
16 - Makita BALL BEARING 627DDW BO6040 9564--16-210027-4	£2.49	£2.99	ADD
17 - Makita LABYRINTH RUBBER RING 22 BO604 9564--17-421738-8	£3.33	£3.99	ADD
20 - Makita BAFFLE PLATE GD0800C/810C/BO60 9564--20-413076-2	£2.49	£2.99	ADD
21 - Makita TAPPING SCREW 4X70 9564 9564--21-266258-3	£2.49	£2.99	ADD
22 - Makita RETAINER MT814/815/HP1631/9565 9564--22-344871-8	£1.66	£1.99	ADD
23 - Makita INSULATION COVER MT814/815/ 9564--23-417237-6	£1.66	£1.99	ADD
24 - Makita FIELD 110V 9564/65Z 9564--24-626505-8	£39.99	£47.99	ADD
24 - Makita FIELD 240V 9564/65Z* 9564--24-626509-0	£37.49	£44.99	ADD
24 - Makita FIELD 110V 9564H/9565H 9564--24-626560-0	£18.33	£21.99	ADD
24 - Makita FIELD 240V 9564H/9565H 9564--24-626564-2	£18.33	£21.99	ADD
25 - Makita PT SCREW 4X18 KP0810C* 9564--25-265995-6	£0.83	£0.99	ADD
26 - Makita THIN WASHER 12 9564--26-253084-9	£1.66	£1.99	ADD
26 - Makita STRAIN RELIEF HS7100/BO5041 9564--26-687052-4	£1.66	£1.99	ADD
26 - Makita STRAIN RELIEF UH4570/55/5580/6 9564--26-687063-9	£0.83	£0.99	ADD
27 - Makita SWITCH BLOCK GD0800C/810C/BO60 9564--27-632945-0	£7.49	£8.99	ADD
28 - Makita SWITCH ST115A-40 9564--28-651418-4	£7.49	£8.99	ADD
29 - Makita COVER GD0800C/810C/BO6040/9564 9564--29-687113-0	£1.66	£1.99	ADD
30 - Makita SWITCH LEVER 9564/65CV/DZ&H 9564--30-417186-7	£1.66	£1.99	ADD
31 - Makita COMPRESSION SPRING 4 * 9564--31-233071-4	£0.83	£0.99	ADD
32 - Makita EMC UNIT 9564/65Z 9564--32-638021-8	£8.33	£9.99	ADD
32 - Makita BRUSH HOLDER 9564--32-643761-5	£4.16	£4.99	ADD
33 - Makita MOTOR HOUSING 9564/65Z* 9564--33-183407-6	£10.83	£12.99	ADD
33 - Makita MOTOR HOUSING 9564--33-183740-6	£9.16	£10.99	ADD
33 - Makita MOTOR HOUSING 9564--33-417182-5	£9.16	£10.99	ADD
33 - Makita MOTOR HOUSING 9564/65Z&H/SG12* 9564--33-418512-3	£13.33	£15.99	ADD
34 - Makita MAKITA LABEL 4304/6831DW/5093D 9564--34-819080-3	£1.66	£1.99	ADD
35 - Makita SWITCH KNOB GD0800/810C/BO604 9564--35-417188-3	£1.66	£1.99	ADD
35 - Makita SWITCH KNOB 9564/65Z&H/SG1250 9564--35-417813-6	£1.66	£1.99	ADD
36 - Makita CORD GUARD 8 GD0810C/RP1100C* 9564--36-682559-5	£2.49	£2.99	ADD
36 - Makita CORD GUARD 10 TD0101F/2450 9564--36-682566-8	£2.49	£2.99	ADD
37 - Makita (NO LONGER AVAILABLE) POWER SUPPLY CORD 1.00-2-2.5* 9564--37-663514-6	-	-	No Longer Available
37 - Makita POWER SUPPLY CORD 1.0-2-2.5 9564--37-663926-3	£9.16	£10.99	ADD
37 - Makita POWER SUPPLY CORD 1.0-2-2.5 9564--37-665918-8	£9.16	£10.99	ADD
37 - Makita POWER SUPPLY CORD 1.0-2-2.5 9564--37-692021-2	£22.49	£26.99	ADD
37 - Makita LEAD WIRE HS7100/GA7050/HP1641 9564--37-692527-0	£19.99	£23.99	ADD
38 - Makita REAR COVER 9564/65Z&H/SG1250 9564--38-417183-3	£6.66	£7.99	ADD
39 - Makita PT SCREW 4X18 KP0810C* 9564--39-265995-6	£0.83	£0.99	ADD
42 - Makita A.C. CARBON BRUSH CB-310 9564--42-191974-7	£8.33	£9.99	ADD
42 - Makita CARBON BRUSH CB-318 AC BO6040 9564--42-191978-9	£8.33	£9.99	ADD
43 - Makita BRUSH HOLDER BO6040/9564&65CV& 9564--43-643760-7	£2.49	£2.99	ADD
43 - Makita BRUSH HOLDER 9564--43-643762-3	£3.33	£3.99	ADD
44 - Makita PT SCREW 3X10 W. CAPTIVE 9564--44-266256-7	£0.83	£0.99	ADD
45 - Makita NAME PLATE 9564Z 9564--45-852377-7	£1.66	£1.99	ADD
46 - Makita LOCK NUT 14-45 9564--46-224554-5	£4.16	£4.99	ADD
47 - Makita INNER FLANGE 42 BGA450/9005B/* 9564--47-224298-7	£1.66	£1.99	ADD
48 - Makita TOOL-LESS WHEEL COVER 115 ASS 9564--48-135107-4	£8.33	£9.99	ADD
48 - Makita WHEEL COVER 9564CV* 9564--48-163418-7	£8.33	£9.99	ADD
48 - Makita WHEEL COVER 9527NB/9541/9564H 9564--48-165053-7	£4.99	£5.99	ADD
48 - Makita WHEEL COVER MT952/9564H* 9564--48-165362-4	£3.33	£3.99	ADD
49 - Makita PAN HD SCREW M5X16 9564--49-251391-4	£0.83	£0.99	ADD
50 - Makita SPINDLE 9564/65CV/DZ&H/9565CVL 9564--50-324035-0	£8.33	£9.99	ADD
51 - Makita LABYRINTH RING 9540/9541/9565 9564--51-415300-9	£2.49	£2.99	ADD
52 - Makita HEX SOCKET HD BOLT M4x16 9564--52-265490-6	£2.49	£2.99	ADD
52 - Makita HEX S H BOLT 4X16 10PK* 9564--52-266260-6	£2.49	£2.99	ADD
53 - Makita WHEEL COVER BASE 9564/65CV* 9564--53-344872-6	£2.49	£2.99	ADD
54 - Makita BEARING BOX COMP 9564/65CV&DZ* 9564--54-151927-8	£9.16	£10.99	ADD
54 - Makita Angle grinder INNER FLANGE 42 GA7050/GA9050/ 9564--54-224415-9	£1.66	£1.99	ADD
54 - Makita BEARING BOX 9564--54-317570-5	£4.16	£4.99	ADD
54 - Makita BEARING BOX 9564/65CV/DZ&H* 9564--54-318302-3	£4.16	£4.99	ADD
55 - Makita O RING 52 9564/65CV/DZ&H/SG125 9564--55-213673-2	£1.66	£1.99	ADD
56 - Makita SPIRAL BEVEL GEAR 38 9564--56-226795-9	£12.49	£14.99	ADD
56 - Makita SPIRAL BEVEL GEAR 38 9564/65CV 9564--56-227427-1	£6.66	£7.99	ADD
57 - Makita PIN 9564/65CV/DZ&H 9564--57-256459-1	£2.49	£2.99	ADD
58 - Makita O RING 6 9564/65CV/DZ&H 9564--58-213048-5	£0.83	£0.99	ADD
59 - Makita TAPPING SCREW 4X28 9564--59-266257-5	£1.66	£1.99	ADD
63 - Makita BEARING RETAINER 9564/65CV/DZ 9564--63-285841-7	£1.66	£1.99	ADD
64 - Makita BALL BEARING 6201DDW BPJ141/81 9564--64-211129-9	£7.49	£8.99	ADD
1001 - Makita GRIP 36 COMPLETE 9564--1001-152490-4	£0.86	£1.04	ADD
1002 - Makita GRINDING WHEEL 115X6 A24R 9564--1002-D-18459	£3.33	£3.99	ADD
1003 - Makita LOCK NUT WRENCH angle grinder pin spanner 35mm 9564--1003-782407-9	£2.49	£2.99	ADD
5001 - Makita EMC UNIT 9564--5001-638011-1	-	-	Contact Us For Price
5001 - Makita PLUG UK TYPE 16A-4H/110V No Longer Available 9564--5001-655030-2	-	-	No Longer Available
5001 - Makita SUPPORT 9564/65Z 9564--5001-687117-2	£1.66	£1.99	ADD
5002 - Makita NON INSULATED TERMINAL MT814/1 9564--5002-654091-9	£1.66	£1.99	ADD
