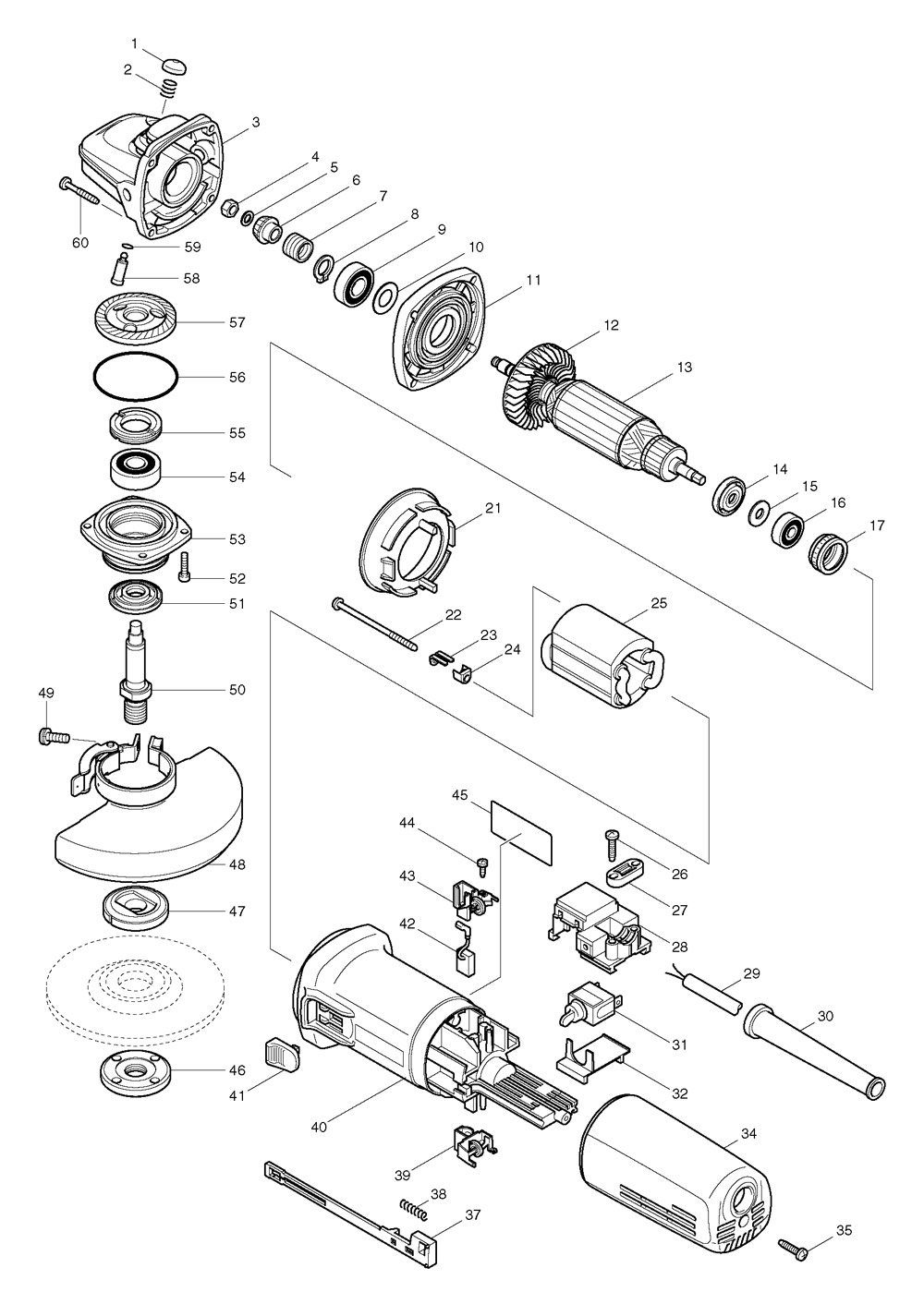

Makita 9565H Corded 125mm (5'') Angle Grinder 110v & 240v Spare Parts

9565H

	(Ex VAT)	Inc VAT
1 - Makita PIN CAP 9564/65CV/DZ/H/9565CVL 9565H--1-418067-8	£1.66	£1.99	ADD
3 - Makita GEAR HOUSING COMP 9564/65CV/DZ 9565H--3-153488-4	£22.49	£26.99	ADD
4 - Makita HEX NUT M6* 9565H--4-931303-0	£0.83	£0.99	ADD
5 - Makita NARROW WASHER 6 9565H--5-253077-6	£0.83	£0.99	ADD
6 - Makita SPIRAL BEVEL GEAR 11 9564/65CV 9565H--6-226794-1	£5.83	£6.99	ADD
6 - Makita COMPRESSION SPRING 8 9524NB BGA450 BGA452 RP1801 9565H--6-233072-2	£0.83	£0.99	ADD
7 - Makita LOCK SPRING 12 GD0800/810C/956 9565H--7-233901-9	£3.33	£3.99	ADD
8 - Makita EXT DIN 471 CIRCLIP-12 9565H--8-961052-5	£0.83	£0.99	ADD
9 - Makita BALL BEARING 6001LLB 9565H/CVL 9565H--9-211142-7	£4.99	£5.99	ADD
11 - Makita GEAR HOUSING COVER BO6040/9564 9565H--11-317359-1	£4.16	£4.99	ADD
12 - Makita FAN 57 9564/65CV/DZ&H/SG1250 9565H--12-240033-5	£4.16	£4.99	ADD
13 - Makita ARMATURE ASSY 110V 9564/65Z&H 9565H--13-515231-3	£56.66	£67.99	ADD
13 - Makita ARMATURE ASSY 240V 9564/65Z&H 9565H--13-515234-7	£56.66	£67.99	ADD
14 - Makita INSULATION WASHER GD0810C/9564 9565H--14-681656-4	£1.66	£1.99	ADD
15 - Makita THIN BLUE WASHER JS1600 9565H--15-253823-7	£0.83	£0.99	ADD
16 - Makita BALL BEARING 627DDW BO6040 9565H--16-210027-4	£2.49	£2.99	ADD
17 - Makita LABYRINTH RUBBER RING 22 BO604 9565H--17-421738-8	£3.33	£3.99	ADD
21 - Makita BAFFLE PLATE GD0800C/810C/BO60 9565H--21-413076-2	£2.49	£2.99	ADD
22 - Makita TAPPING SCREW 4X70 9564 9565H--22-266258-3	£2.49	£2.99	ADD
23 - Makita RETAINER MT814/815/HP1631/9565 9565H--23-344871-8	£1.66	£1.99	ADD
24 - Makita INSULATION COVER MT814/815/ 9565H--24-417237-6	£1.66	£1.99	ADD
25 - Makita FIELD 110V 9564H/9565H 9565H--25-626560-0	£18.33	£21.99	ADD
25 - Makita FIELD 240V 9564H/9565H 9565H--25-626564-2	£18.33	£21.99	ADD
26 - Makita THIN WASHER 12 9565H--26-253084-9	£1.66	£1.99	ADD
26 - Makita PT SCREW 4X18 KP0810C* 9565H--26-265995-6	£0.83	£0.99	ADD
27 - Makita STRAIN RELIEF HS7100/BO5041 9565H--27-687052-4	£1.66	£1.99	ADD
27 - Makita STRAIN RELIEF 110V HS6100/7100 9565H--27-687053-2	£1.66	£1.99	ADD
28 - Makita SWITCH BLOCK GD0800C/810C/BO60 9565H--28-632945-0	£7.49	£8.99	ADD
29 - Makita LEAD WIRE HS7100/GA7050/HP1641 9565H--29-692527-0	£19.99	£23.99	ADD
29 - Makita POWER SUPPLY CORD HS6100/7100* 9565H--29-695217-4	£9.16	£10.99	ADD
30 - Makita CORD GUARD 10 TD0101F/2450 9565H--30-682566-8	£2.49	£2.99	ADD
31 - Makita SWITCH ST115A-40 9565H--31-651418-4	£7.49	£8.99	ADD
32 - Makita COVER GD0800C/810C/BO6040/9564 9565H--32-687113-0	£1.66	£1.99	ADD
34 - Makita REAR COVER 9564/65Z&H/SG1250 9565H--34-417183-3	£6.66	£7.99	ADD
35 - Makita PT SCREW 4X18 KP0810C* 9565H--35-265995-6	£0.83	£0.99	ADD
37 - Makita SWITCH LEVER 9564/65CV/DZ&H 9565H--37-417186-7	£1.66	£1.99	ADD
38 - Makita COMPRESSION SPRING 4 * 9565H--38-233071-4	£0.83	£0.99	ADD
39 - Makita BRUSH HOLDER BO6040/9564&65CV& 9565H--39-643760-7	£2.49	£2.99	ADD
40 - Makita MOTOR HOUSING 9564/65Z&H/SG12* 9565H--40-418512-3	£13.33	£15.99	ADD
40 - Makita MOTOR HOUSING 9564/65Z&H/SG12* 9565H--40-451278-2	£17.49	£20.99	ADD
40 - Makita MOTOR HOUSING 9564/65Z&H/SG125 9565H--40-453276-2	£19.16	£22.99	ADD
41 - Makita SWITCH KNOB 9564/65Z&H/SG1250 9565H--41-417813-6	£1.66	£1.99	ADD
42 - Makita Replacement Carbon Brushes Brush Pair CB-325 9553 9555 9565H--42-194074-2	£2.49	£2.99	ADD
43 - Makita BRUSH HOLDER BO6040/9564&65CV& 9565H--43-643760-7	£2.49	£2.99	ADD
44 - Makita PT SCREW 3X10 W. CAPTIVE 9565H--44-266256-7	£0.83	£0.99	ADD
45 - Makita NAME PLATE 9565H 9565H--45-862753-7	£1.66	£1.99	ADD
46 - Makita LOCK NUT 14-45 9565H--46-224554-5	£4.16	£4.99	ADD
47 - Makita INNER FLANGE 42 BGA450/9005B/* 9565H--47-224298-7	£1.66	£1.99	ADD
48 - Makita Guard 9555NB 9565CVL GA5021 GA5034 Angle Grinder 9565H--48-122887-1	£6.66	£7.99	ADD
48 - Makita TOOLLESS WHEEL COVER 125 ASS 9565H--48-122895-2	£9.16	£10.99	ADD
48 - Makita WHEEL COVER ASSY 9522NB/9015B 9565H--48-125097-9	£12.49	£14.99	ADD
48 - Makita WHEEL COVER ASSY 9555NB/58NB* 9565H--48-125268-8	£6.66	£7.99	ADD
48 - Makita TOOLLESS WHEEL COVER 125 ASS* 9565H--48-135108-2	£9.16	£10.99	ADD
49 - Makita PAN HD SCREW M5X16 9565H--49-251391-4	£0.83	£0.99	ADD
49 - Makita PH SCREW M5X14 MT952 9565H--49-265103-9	£0.83	£0.99	ADD
49 - Makita PAN HD SCREW M5X16 GA5021/9556 9565H--49-265180-1	£0.83	£0.99	ADD
50 - Makita SPINDLE 9564/65CV/DZ&H/9565CVL 9565H--50-324035-0	£8.33	£9.99	ADD
51 - Makita LABYRINTH RING 9540/9541/9565 9565H--51-415300-9	£2.49	£2.99	ADD
52 - Makita HEX SOCKET HD BOLT M4x16 9565H--52-265490-6	£2.49	£2.99	ADD
53 - Makita BEARING BOX 9565H--53-317570-5	£4.16	£4.99	ADD
53 - Makita BEARING BOX 9564/65CV/DZ&H* 9565H--53-318302-3	£4.16	£4.99	ADD
53 - Makita BEARING BOX 9564/65CV/DZ&H 9565H--53-318334-0	£29.16	£34.99	ADD
54 - Makita BALL BEARING 6201DDW BPJ141/81 9565H--54-211129-9	£7.49	£8.99	ADD
54 - Makita Angle grinder INNER FLANGE 42 GA7050/GA9050/ 9565H--54-224415-9	£1.66	£1.99	ADD
55 - Makita BEARING RETAINER 9564/65CV/DZ 9565H--55-285841-7	£1.66	£1.99	ADD
56 - Makita O RING 52 9564/65CV/DZ&H/SG125 9565H--56-213673-2	£1.66	£1.99	ADD
57 - Makita SPIRAL BEVEL GEAR 38 9564/65CV 9565H--57-227427-1	£6.66	£7.99	ADD
58 - Makita PIN 9564/65CV/DZ&H 9565H--58-256459-1	£2.49	£2.99	ADD
59 - Makita O RING 6 9564/65CV/DZ&H 9565H--59-213048-5	£0.83	£0.99	ADD
60 - Makita TAPPING SCREW 4X28 9565H--60-266257-5	£1.66	£1.99	ADD
61 - Makita CLAR LABEL GD0602 9565H--61-819329-1	£0.83	£0.99	ADD
1001 - Makita GRIP 36 COMPLETE 9565H--1001-152490-4	£3.33	£3.99	ADD
1001 - Makita GRIP 36 COMPLETE 9565H--1001-153489-2	£3.33	£3.99	ADD
1002 - Makita LOCK NUT WRENCH angle grinder pin spanner 35mm 9565H--1002-782407-9	£2.49	£2.99	ADD
1002 - Makita Angle Grinder Pin Spanner 9565H--1002-782423-1	£1.66	£1.99	ADD
1003 - Makita [NO LONGER AVAILABLE] GRINDING WHEEL 125X6 A24R 9565H--1003-D-18465	-	-	No Longer Available
5001 - Makita PLUG UK TYPE 16A-4H/110V No Longer Available 9565H--5001-655030-2	-	-	No Longer Available
5002 - Makita NON INSULATED TERMINAL MT814/1 9565H--5002-654091-9	£1.66	£1.99	ADD

Please note we will be unable to provide any more updates at this moment in time.
