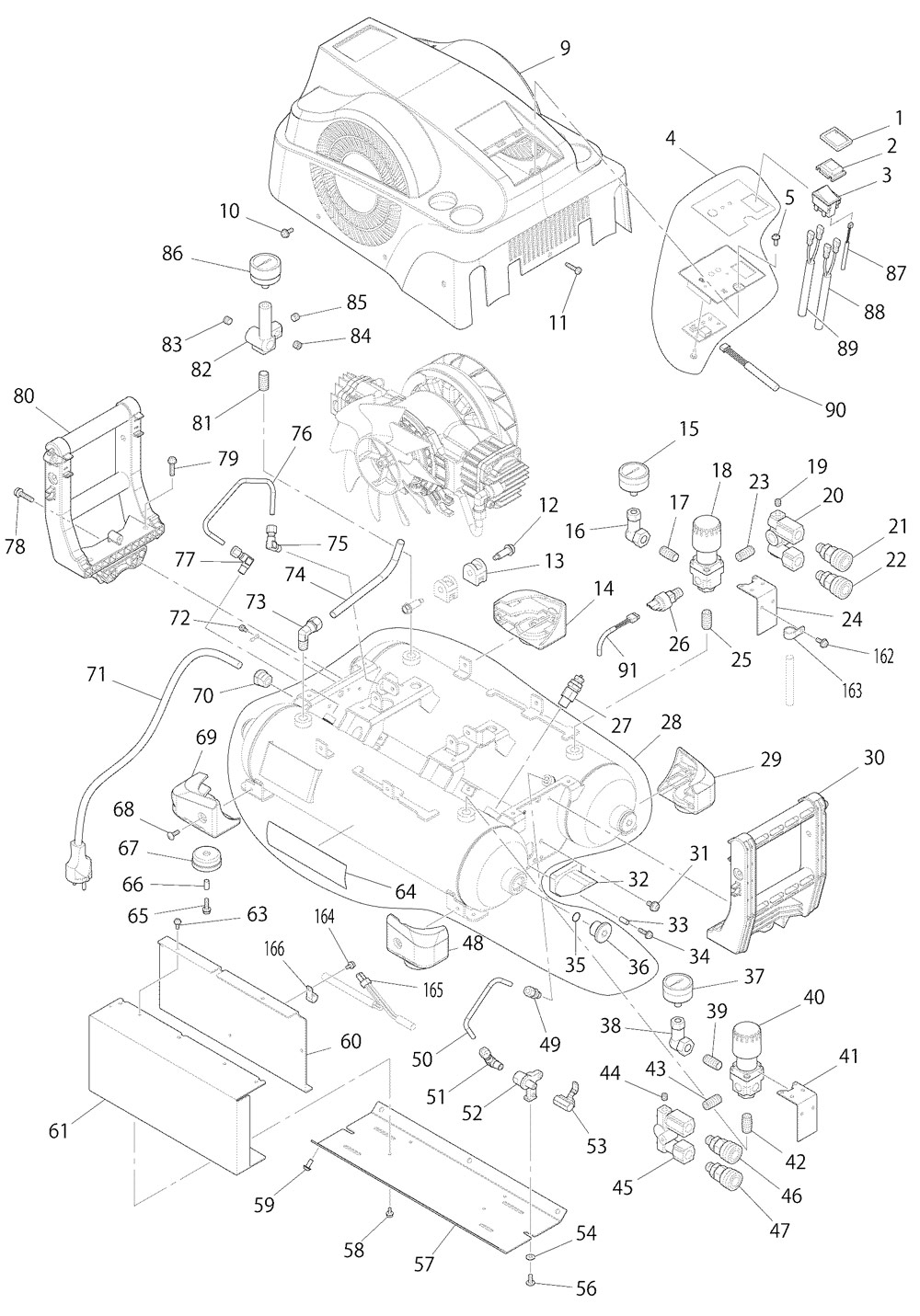

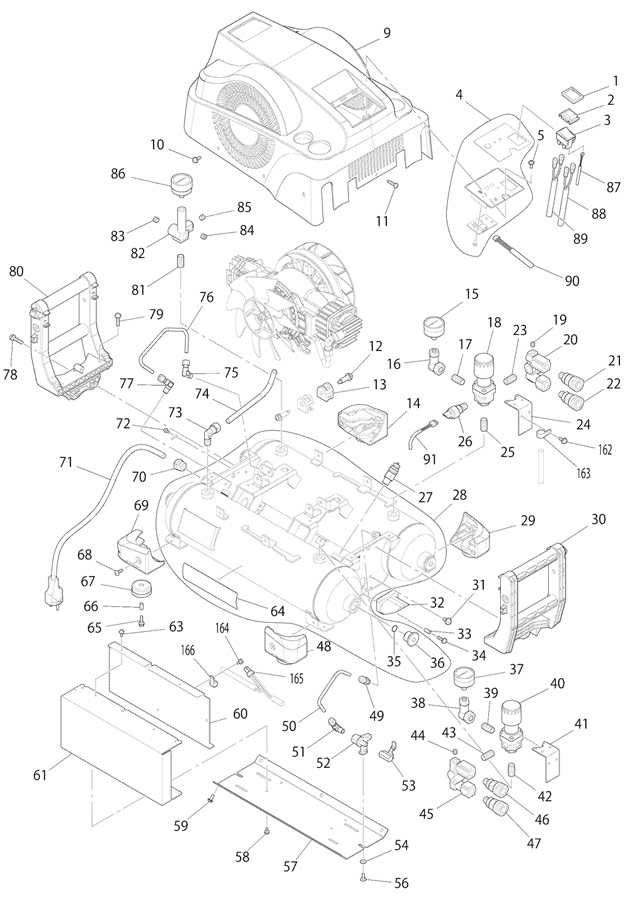

Makita AC320H Ac320h 22 Bar 240v High Pressure Air Compressor Spare Parts

AC320H

	(Ex VAT)	Inc VAT
1 - Makita DUST COVER CAP AC320H AC320H--1-AM1101239A	£3.33	£3.99	ADD
2 - Makita DUST COVER AC320H AC320H--2-AM1101238A	£3.33	£3.99	ADD
3 - Makita SWITCH AN320H AC320H--3-AM1101211A	£42.49	£50.99	ADD
4 - Makita OPERATION PANEL ASSY AC320H AC320H--4-AM1101280A	£88.33	£105.99	ADD
5 - Makita TAPPING SCREW 5X16 AC320H AC320H--5-AM1101254A	£3.33	£3.99	ADD
9 - Makita COVER COMP BLACK AC320H AC320H--9-AM1101232A	£97.49	£116.99	ADD
10 - Makita PAN HD SCREW M5X10 AC320H AC320H--10-AM1101231A	£2.49	£2.99	ADD
11 - Makita TAPPING SCREW 5X16 AC320H AC320H--11-AM1101254A	£3.33	£3.99	ADD
12 - Makita HEX BOLT AC320H AC320H--12-AM0802354A	£1.66	£1.99	ADD
13 - Makita CUSHION AC320H AC320H--13-AM0802278A	£1.66	£1.99	ADD
14 - Makita CASTER COMP R AC320H AC320H--14-AM0801992A	£28.32	£33.99	ADD
15 - Makita PRESSURE GAUGE 35 AC320H AC320H--15-AM1101219A	£39.99	£47.99	ADD
16 - Makita PRESSURE GAUGE MANIFOLD AC320H AC320H--16-AM0801875C	£8.33	£9.99	ADD
17 - Makita BARREL NIPPLE R1/4 AC320H AC320H--17-AM0207700D	£3.33	£3.99	ADD
18 - Makita REGULATOR H AC320H AC320H--18-AM1101224A	£157.49	£188.99	ADD
19 - Makita TAPER SCREW PLUG R1/16 AC320H AC320H--19-AM0801617B	£3.33	£3.99	ADD
20 - Makita COUPLER MANIFOLD H AC320H AC320H--20-AM0801874F	£25.83	£30.99	ADD
21 - Makita QUICK COUPLER H R1/4 LEFT SCRE AC320H--21-AM1101229A	£43.33	£51.99	ADD
22 - Makita QUICK COUPLER H R1/4 LEFT SCRE AC320H--22-AM1101229A	£43.33	£51.99	ADD
23 - Makita BARREL NIPPLE R1/4 AC320H AC320H--23-AM00801599	£3.33	£3.99	ADD
24 - Makita COVER PLATE AC320H AC320H--24-AM1101208A	£4.99	£5.99	ADD
25 - Makita BARREL NIPPLE R1/4 AC320H AC320H--25-AM00801599	£3.33	£3.99	ADD
26 - Makita PRESURE SENSOR AC320H AC320H--26-AM1101222A	£95.83	£114.99	ADD
27 - Makita RELIEF VALVE AC320H AC320H--27-AM1101230A	£52.49	£62.99	ADD
28 - Makita TANK UNIT ASSY AC320H AC320H--28-AM1101281A	£645.83	£774.99	ADD
29 - Makita FOOT B AC320H AC320H--29-AM0801324D	£2.49	£2.99	ADD
30 - Makita HANDLE AC320H AC320H--30-AM1101221A	£29.16	£34.99	ADD
31 - Makita PAN HD SCREW M6X14 AC320H AC320H--31-AMAF350791	£1.66	£1.99	ADD
32 - Makita DRAIN GUARD AC320H AC320H--32-AM1101209A	£9.16	£10.99	ADD
34 - Makita PAN HDSCREW M5X20 W/CP AC320H--34-911234-9	£0.83	£0.99	ADD
35 - Makita O-RING P18 AC320H AC320H--35-AM1101241A	£2.49	£2.99	ADD
36 - Makita INSPECTION HOLE PLUG AC320H AC320H--36-AM1101240B	£10.83	£12.99	ADD
37 - Makita PRESSURE GAUGE 15 AC320H AC320H--37-AM1101218A	£39.99	£47.99	ADD
38 - Makita PRESSURE GAUGE MANIFOLD AC320H AC320H--38-AM0801875C	£8.33	£9.99	ADD
39 - Makita BARREL NIPPLE R1/4 AC320H AC320H--39-AM0207700D	£3.33	£3.99	ADD
40 - Makita REGULATOR L AC320H AC320H--40-AM1101217A	£157.49	£188.99	ADD
41 - Makita COVER PLATE AC320H AC320H--41-AM1101208A	£4.99	£5.99	ADD
42 - Makita BARREL NIPPLE R1/4 AC320H AC320H--42-AM00801599	£3.33	£3.99	ADD
43 - Makita BARREL NIPPLE R1/4 AC320H AC320H--43-AM00801599	£3.33	£3.99	ADD
44 - Makita TAPER SCREW PLUG R1/16 AC320H AC320H--44-AM0801617B	£3.33	£3.99	ADD
45 - Makita COUPLER MANIFOLD L AC320H AC320H--45-AM0801873E	£24.16	£28.99	ADD
46 - Makita QUICK COUPLER L R1/4 AC320H AC320H--46-AM1101228A	£29.16	£34.99	ADD
47 - Makita QUICK COUPLER L R1/4 AC320H AC320H--47-AM1101228A	£29.16	£34.99	ADD
48 - Makita FOOT A AC320H AC320H--48-AM0801313D	£4.99	£5.99	ADD
49 - Makita HALF UNION 6-R1/8 AC230H AC320H--49-AM0801899A	£4.99	£5.99	ADD
50 - Makita DRAIN PIPE AC320H AC320H--50-AM1101251A	£9.99	£11.99	ADD
51 - Makita ELBOW 6-R1/8 AC320H AC320H--51-AM0801897A	£9.16	£10.99	ADD
52 - Makita DRAIN SOCKET AC320H AC320H--52-AM0801386D	£5.83	£6.99	ADD
53 - Makita DRAIN COCK AC320H AC320H--53-AM0801307D	£15.83	£18.99	ADD
54 - Makita FLAT WASHER 5 DIN125-B 5* AC320H--54-941101-4	£0.83	£0.99	ADD
55 - Makita SPACER L AC320H AC320H--55-AM1101278B	£3.33	£3.99	ADD
56 - Makita TAP TIGHT LOW HEAD 5 X 12 AC32 AC320H--56-AM0801895A	£1.66	£1.99	ADD
57 - Makita UNDER GUARD AC320H AC320H--57-AM1101216A	£24.99	£29.99	ADD
58 - Makita PAN HD SCREW M4X10 AC320H--58-911114-9	£0.83	£0.99	ADD
59 - Makita PAN HD SCREW M5X10 AC320H AC320H--59-AM1101231A	£2.49	£2.99	ADD
60 - Makita DRIVER COVER AC320H AC320H--60-AM1101258A	£31.66	£37.99	ADD
61 - Makita DRIVER AC320H AC320H--61-AM1101226C	£1,034.99	£1,241.99	ADD
62 - Makita SPACER S AC320H AC320H--62-AM1101279A	£2.49	£2.99	ADD
63 - Makita PAN HD SCREW M4X10 AC320H--63-911114-9	£0.83	£0.99	ADD
64 - Makita MAKITA LOGO LABEL AC320H AC320H--64-AM0801971A	£4.16	£4.99	ADD
65 - Makita PAN HDSCREW M5X20 W/CP AC320H--65-911234-9	£0.83	£0.99	ADD
66 - Makita WOUND BUSH 5-13 AC320H AC320H--66-344222-5	£0.83	£0.99	ADD
66 - Makita WOUND BUSH 5-13 AC320H AC320H--66-344222-5	£0.83	£0.99	ADD
67 - Makita FOOT RUBBER AC320H AC320H--67-AM00801626	£2.49	£2.99	ADD
68 - Makita TRUSS HD SCREW M5X14 AC320H AC320H--68-AM0801431A	£1.66	£1.99	ADD
69 - Makita CASTER COMP L AC320H AC320H--69-AM0801993A	£28.32	£33.99	ADD
70 - Makita CORD BUSHING AC320H AC320H--70-AM1101212A	£4.99	£5.99	ADD
71 - Makita POWER SUPPLY CORD AC320H AC320H--71-AM1101243A	£32.49	£38.99	ADD
72 - Makita NICKEL PAN SCREW M4X8 AC320H--72-652014-1	£0.83	£0.99	ADD
73 - Makita ELBOW 10-R1/4 AC320H AC320H--73-AM00801598	£9.99	£11.99	ADD
74 - Makita PIPE 10 AC320H AC320H--74-AM0802313A	£20.83	£24.99	ADD
75 - Makita ELBOW 6-R1/8 AC320H AC320H--75-AM0801897A	£9.16	£10.99	ADD
76 - Makita PIPE 6 AC320H AC320H--76-AM1101227A	£14.99	£17.99	ADD
77 - Makita ELBOW 6-R1/8 AC320H AC320H--77-AM0801897A	£9.16	£10.99	ADD
78 - Makita PAN HD SCREW M6X25 AC320H AC320H--78-AM0801960A	£2.49	£2.99	ADD
79 - Makita PAN HD SCREW M6X25 AC320H AC320H--79-AM0801960A	£2.49	£2.99	ADD
80 - Makita HANDLE AC320H AC320H--80-AM1101221A	£29.16	£34.99	ADD
81 - Makita BARREL NIPPLE R1/4 AC320H AC320H--81-AM0207700D	£3.33	£3.99	ADD
82 - Makita PRESSURE SWITCH MANIFOLD AC320 AC320H--82-AM0801876C	£14.99	£17.99	ADD
83 - Makita TAPER SCREW PLUG R1/8 AC320H AC320H--83-AM0502509B	£2.49	£2.99	ADD
84 - Makita TAPER SCREW PLUG R1/8 AC320H AC320H--84-AM0502509B	£2.49	£2.99	ADD
85 - Makita TAPER SCREW PLUG R1/8 AC320H AC320H--85-AM0502509B	£2.49	£2.99	ADD
86 - Makita PRESSURE GAUGE 6.0 AC320H AC320H--86-AM1101213A	£49.16	£58.99	ADD
87 - Makita RESET HARNESS AC320H AC320H--87-AM1101252A	£42.49	£50.99	ADD
88 - Makita SWITCH HARNESS AC320H AC320H--88-AM1101244A	£15.83	£18.99	ADD
89 - Makita PLUG HARNESS AC320H AC320H--89-AM1101253A	£15.83	£18.99	ADD
90 - Makita PANEL HARNESS AC320H AC320H--90-AM1101242A	£17.49	£20.99	ADD
91 - Makita SENSOR HARNESS AC320H AC320H--91-AM1101223A	£33.33	£39.99	ADD
92 - Makita PAN HD SCREW AC320H M5X25 AC320H--92-AMAF350774	£2.49	£2.99	ADD
93 - Makita STATOR AC320H AC320H--93-AM1101225C	£344.16	£412.99	ADD
94 - Makita CRANK CASE AC320H--94-AM1101275A	£77.49	£92.99	ADD
94 - Makita CRANK CASE AC320H AC320H--94-AM1101275B	£83.33	£99.99	ADD
95 - Makita RUBBER PIN 6 AC320H--95-263005-3	£0.83	£1.00	ADD
96 - Makita BALL BEARING 6204 AC320H AC320H--96-AM0801886A	£21.66	£25.99	ADD
97 - Makita KEY 6 AC320H AC320H--97-AM0801323A	£1.66	£1.99	ADD
98 - Makita MOTOR SHAFT AC320H AC320H--98-AM0802277A	£55.82	£66.99	ADD
99 - Makita BALANCER AC230H AC320H--99-AM0802274A	£9.99	£11.99	ADD
102 - Makita LOCKING PISTON COMP AC320H* AC320H--102-AM1101282A	£172.49	£206.99	ADD
102 - Makita LOCKING PISTON COMP AC320H* AC320H--102-AM1101287A	£153.33	£183.99	ADD
102 - Makita LOCKING PISTON COMP AC320H AC320H--102-AM1101287B	£178.33	£213.99	ADD
103 - Makita LIP RING AC320H AC320H--103-AM0801905A	£29.16	£34.99	ADD
104 - Makita FIXED RING AC320H AC320H--104-AM0503188E	£4.99	£5.99	ADD
105 - Makita O-RING S5 AC320H AC320H--105-AM00503229	£1.66	£1.99	ADD
106 - Makita TRUSS HD SCREW M5X14 AC320H AC320H--106-AM00503242	£1.66	£1.99	ADD
107 - Makita STUFFING L AC320H AC320H--107-AM0802281A	£2.49	£2.99	ADD
108 - Makita CYLINDER L AC320H AC320H--108-AM0802344A	£54.99	£65.99	ADD
109 - Makita CYLINDER GASKET L AC320H AC320H--109-AM0801359F	£4.16	£4.99	ADD
110 - Makita BULB PLATE COMP L AC320H AC320H--110-AM0802119A	£40.83	£48.99	ADD
111 - Makita HEAD GASKET L AC320H AC320H--111-AM0801361F	£4.16	£4.99	ADD
112 - Makita CYLINDER HEAD L AC320H AC320H--112-AM0801363D	£19.99	£23.99	ADD
113 - Makita HEX SOCKET HD BOLT M6X60 AC320 AC320H--113-AM00801591	£2.49	£2.99	ADD
114 - Makita M6 SPRING RING DIN128 AC320H--114-942151-2	£0.83	£0.99	ADD
115 - Makita ELBOW 10-R1/4 AC320H AC320H--115-AM00801598	£9.99	£11.99	ADD
116 - Makita PIPE 10 AC320H AC320H--116-AM1101273A	£34.16	£40.99	ADD
119 - Makita PISTON ASSY AC320H--119-AM1101283A	£191.66	£229.99	ADD
119 - Makita PISTON ASSY AC320H* AC320H--119-AM1101288A	£200.83	£240.99	ADD
119 - Makita PISTON ASSY AC320H AC320H--119-AM1101288B	£206.66	£247.99	ADD
120 - Makita WEARING AC320H AC320H--120-AM0802258A	£16.66	£19.99	ADD
121 - Makita LEAF SPRING 94H AC320H AC320H--121-AM0802256A	£3.33	£3.99	ADD
122 - Makita SHEET RING 41 AC320H AC320H--122-AM0802257A	£16.66	£19.99	ADD
123 - Makita STUFFING H AC320H AC320H--123-AM0802282A	£1.66	£1.99	ADD
124 - Makita NO LONGER AVAILABLE CYLINDER H AC320H AC320H--124-AM0802252A	-	-	No Longer Available
125 - Makita CYLINDER GASKET H AC320H AC320H--125-AM0802268A	£3.33	£3.99	ADD
126 - Makita BULB PLATE COMP H AC320H AC320H--126-AM0802326A	£42.49	£50.99	ADD
127 - Makita O-RING S12 AC320H AC320H--127-AM00801589	£2.49	£2.99	ADD
128 - Makita ELBOW 10-R1/4 AC320H AC320H--128-AM00801598	£9.99	£11.99	ADD
129 - Makita O-RING S42 AC320H AC320H--129-AM00801578	£5.83	£6.99	ADD
130 - Makita HEAD UNIT AC320H AC320H--130-AM0802323A	£68.33	£81.99	ADD
131 - Makita TAPPING SCREW 4X12 AC320H AC320H--131-AMAF456457	£0.83	£0.99	ADD
132 - Makita ELBOW 10-R1/4 AC320H AC320H--132-AM00801598	£9.99	£11.99	ADD
133 - Makita M6 SPRING RING DIN128 AC320H--133-942151-2	£0.83	£0.99	ADD
134 - Makita HEX SOCKET HD BOLT M6X60 AC320 AC320H--134-AM00801591	£2.49	£2.99	ADD
135 - Makita BALANCER AC230H AC320H--135-AM0802274A	£9.99	£11.99	ADD
136 - Makita SPACER AC320H AC320H--136-AM0802356A	£10.83	£12.99	ADD
137 - Makita TAP TIGHT LOW HEAD 5 X 12 AC32 AC320H--137-AM0801895A	£1.66	£1.99	ADD
138 - Makita BEARING RETAINER F AC320H AC320H--138-AM0801717B	£3.33	£3.99	ADD
139 - Makita BALL BEARING 6204 AC320H AC320H--139-AM0801886A	£21.66	£25.99	ADD
140 - Makita BEARING CASE F AC320H AC320H--140-AM0802276A	£27.49	£32.99	ADD
141 - Makita BEARING SPACER AC320H AC320H--141-AM0801884A	£5.83	£6.99	ADD
142 - Makita CONED DISC SPRING 18 AC320H AC320H--142-AM0801442B	£3.33	£3.99	ADD
143 - Makita HEX NUT M18 AC320H AC320H--143-AMAF430730	£2.49	£2.99	ADD
144 - Makita PAN HDSCREW M5X20 W/CP AC320H--144-911234-9	£0.83	£0.99	ADD
145 - Makita FILTER GASKET AC320H AC320H--145-AM0802290A	£4.16	£4.99	ADD
146 - Makita NO LONGER AVAILABLE FILTER AC320H AC320H--146-AM0802284A	-	-	No Longer Available
147 - Makita FILTER COVER AC320H AC320H--147-AM0802283A	£5.83	£6.99	ADD
148 - Makita TAPPING SCREW 5X8 AC320H AC320H--148-AM00502451	£1.66	£1.99	ADD
149 - Makita HARD WASHER 12 AC320H--149-253744-3	£1.66	£1.99	ADD
150 - Makita FAN 190 AC320H AC320H--150-AM0801391E	£10.83	£12.99	ADD
151 - Makita FLAT WASHER 8 DIN125-B 5* AC320H--151-941201-0	£0.83	£0.99	ADD
152 - Makita HEX FULLNUT M8 AC320H--152-931402-8	£1.66	£1.99	ADD
153 - Makita PAN HD SCREW M4X12 AC320H AC320H--153-AMAF350385	£0.83	£0.99	ADD
154 - Makita PLATE TURBO AC320H AC320H--154-AM0801889A	£3.33	£3.99	ADD
155 - Makita TURBO FAN AC320H AC320H--155-AM0801926B	£9.16	£10.99	ADD
156 - Makita PAN HD SCREW M5X10 AC320H AC320H--156-AMAF350767	£1.66	£1.99	ADD
157 - Makita ROTOR AC320H AC320H--157-AM0802028A	£129.99	£155.99	ADD
158 - Makita HEX SOCKET HD BOLT M8X25 AC320 AC320H--158-AM0801940A	£1.66	£1.99	ADD
159 - Makita SPRING WASHER 8 AC320H AC320H--159-AMAF450405	£0.83	£0.99	ADD
160 - Makita ROTOR SPACER AC320H AC320H--160-AM1101276A	£24.16	£28.99	ADD
161 - Makita KEY 6 AC320H AC320H--161-AM0802279A	£2.49	£2.99	ADD
162 - Makita PAN HD SCREW M5X10 AC320H AC320H--162-AMAF350767	£1.66	£1.99	ADD
163 - Makita CABLE CLIP AC320H AC320H--163-AM1101272A	£3.33	£3.99	ADD
164 - Makita PAN HD SCREW M4X10 AC320H--164-911114-9	£0.83	£0.99	ADD
165 - Makita CLOSED END CONNECTOR AC320H AC320H--165-AM1101270A	£1.66	£1.99	ADD
166 - Makita CABLE CLIP AC320H AC320H--166-AM1101271A	£2.49	£2.99	ADD
167 - Makita SWITCH COVER AC320H AC320H--167-AM1101286A	£7.49	£8.99	ADD

Please note we will be unable to provide any more updates at this moment in time.

Makita AC320H Ac320h 22 Bar 240v High Pressure Air Compressor Spare Parts

AC320H
