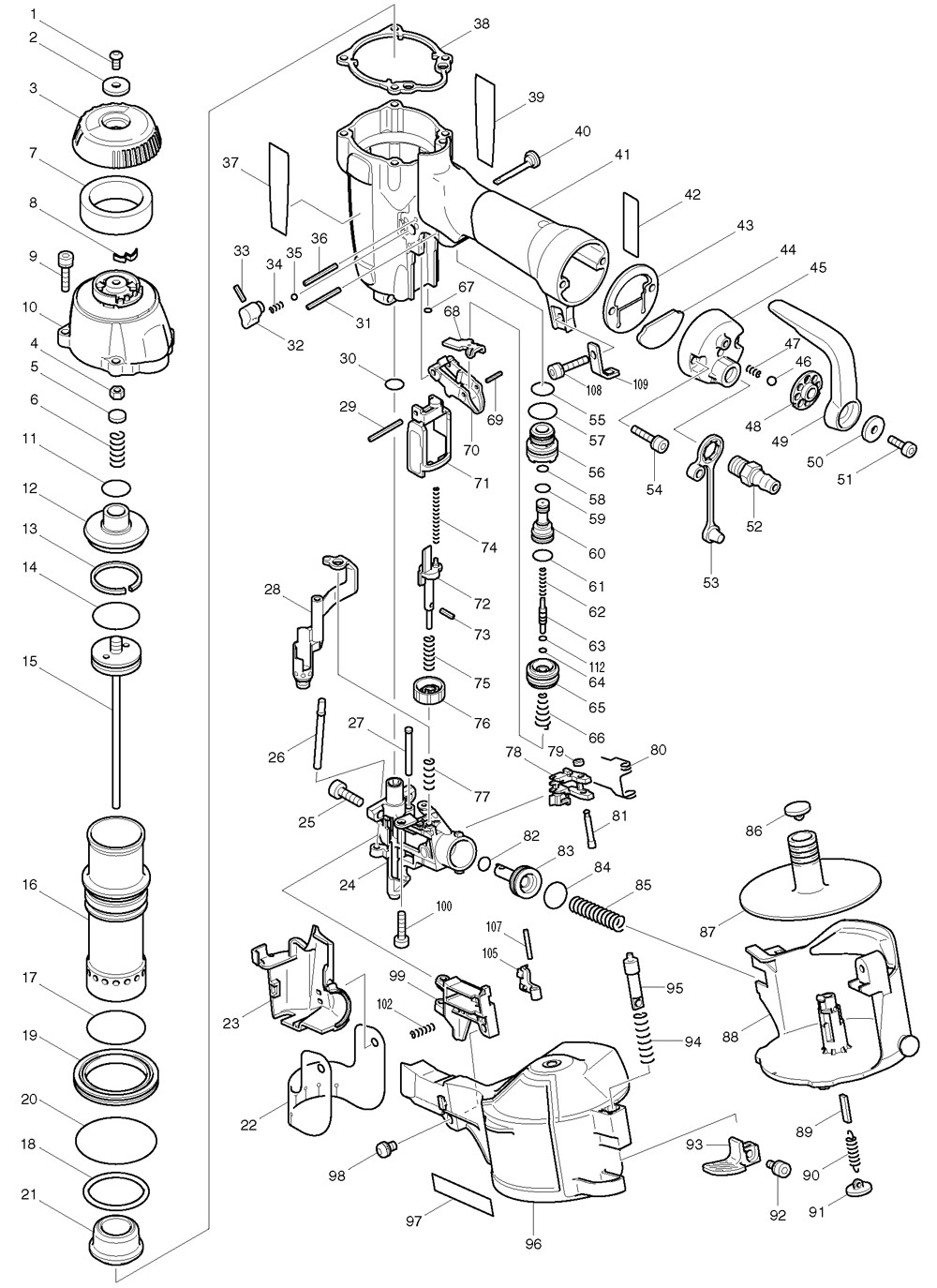

Makita AN504 Construction Coil Air Nailer 27-50mm Spare Parts

AN504

	(Ex VAT)	Inc VAT
1 - Makita HEX SOCKET HD BOLT M5X10 AN504 AN504--1-265907-9	£1.66	£1.99	ADD
2 - Makita FLAT WASHER 6 AN901 AN504--2-267171-8	£1.66	£1.99	ADD
3 - Makita EXTHAUST COVER AN504 AN504--3-417593-4	£2.49	£2.99	ADD
4 - Makita HEX FULL NUT M5 AN504--4-931202-6	£0.83	£0.99	ADD
5 - Makita CAP 12 AN504 AN504--5-286262-6	£1.66	£1.99	ADD
6 - Makita COMPRESSION SPRING 8 AN504* AN504--6-233304-7	£1.66	£1.99	ADD
6 - Makita COMPRESSION SPRING 8 AN504 AN504--6-233439-4	£1.66	£1.99	ADD
7 - Makita FILTER AN504 AN504--7-413091-6	£3.33	£3.99	ADD
8 - Makita LEAF SPRING AN504 AN504--8-232203-0	£1.66	£1.99	ADD
9 - Makita HEX SOCKET HD BOLT M5X25 AN504--9-922241-7	£1.66	£1.99	ADD
10 - Makita TOP CAP AN504 AN504--10-317463-6	£41.66	£49.99	ADD
11 - Makita O RING 18 4101RH/AN504 AN504--11-213255-0	£2.49	£2.99	ADD
12 - Makita HEAD VALVE AN504 AN504--12-421789-1	£9.16	£10.99	ADD
13 - Makita PISTON RING AN504 AN504--13-417589-5	£6.66	£7.99	ADD
14 - Makita O RING 31 GA7050/GA9050/AN504 AN504--14-213487-9	£1.66	£1.99	ADD
15 - Makita DRIVER COMP AN504 AN504--15-152815-2	£51.66	£61.99	ADD
16 - Makita CYLINDER AN504 AN504--16-331607-4	£34.16	£40.99	ADD
17 - Makita O RING 40 BTD134/136/144/146/ AN504--17-213507-9	£3.33	£3.99	ADD
18 - Makita O RING 40 AN942/HM1300 AN504--18-213504-5	£2.49	£2.99	ADD
19 - Makita CYLINDER SEPARATER AN504 AN504--19-417591-8	£2.49	£2.99	ADD
20 - Makita O RING 56 HR3500 AN504--20-213655-4	£1.66	£1.99	ADD
21 - Makita FRONT CUSHION AN504 AN504--21-421781-7	£8.33	£9.99	ADD
22 - Makita COVER AN504 AN504--22-417597-6	£2.49	£2.99	ADD
23 - Makita CONTACT ARM COVER AN504 AN504--23-417598-4	£3.33	£3.99	ADD
24 - Makita DRIVER GUIDE COMP AN504 AN504--24-153330-9	£172.49	£206.99	ADD
25 - Makita HEX SOCKET HD BOLT M6X20 AN50 AN504--25-266285-0	£1.66	£1.99	ADD
26 - Makita SHOULDER PIN 4 AN504 AN504--26-268084-6	£2.49	£2.99	ADD
27 - Makita PIN AN504 AN504--27-268067-6	£1.66	£1.99	ADD
28 - Makita CONTACT ARM AN504 AN504--28-165333-1	£34.16	£40.99	ADD
29 - Makita TENSION PIN 3-28 DIN1481* AN504--29-951075-1	£0.83	£0.99	ADD
30 - Makita O RING 12 AN504/HM1203/HM1213 AN504--30-213118-0	£0.83	£0.99	ADD
31 - Makita TENSION PIN 3-28 DIN1481* AN504--31-951075-1	£0.83	£0.99	ADD
32 - Makita LEVER 8 AN504 AN504--32-417599-2	£1.66	£1.99	ADD
33 - Makita TENSION PIN 3-10 DIN 1481 AN504--33-951054-9	£0.83	£0.99	ADD
34 - Makita COMPRESSION SPRING KP0810C AN504--34-233325-9	£2.49	£2.99	ADD
35 - Makita STEEL BALL 4 5008MB* AN504--35-216008-6	£0.83	£0.99	ADD
36 - Makita TENSION PIN 3-28 DIN1481* AN504--36-951075-1	£0.83	£0.99	ADD
37 - Makita MAKITA LOGO LABEL L AN504 AN504--37-819740-7	£1.66	£1.99	ADD
38 - Makita TOP CAP GASKET AN504 AN504--38-162222-1	£4.16	£4.99	ADD
39 - Makita MAKITA LOGO LABEL R AN504 AN504--39-819741-5	£1.66	£1.99	ADD
40 - Makita LOCK PIN 8 AN504/943 AN504--40-324117-8	£9.16	£10.99	ADD
41 - Makita HOUSING SET AN504* AN504--41-183384-2	£90.83	£108.99	ADD
43 - Makita INLET CAP GASKET AN504 AN504--43-162234-4	£3.33	£3.99	ADD
44 - Makita INLET FILTER AN504 AN504--44-417595-0	£2.49	£2.99	ADD
45 - Makita INLET CAP AN504 AN504--45-317462-8	£22.49	£26.99	ADD
46 - Makita STEEL BALL 6 BHR262T/BHR* AN504--46-216013-3	£0.83	£0.99	ADD
47 - Makita COMPRESSION SPRING 4 AN504 AN504--47-233306-3	£2.49	£2.99	ADD
48 - Makita PLATE AN504 AN504--48-344992-6	£1.66	£1.99	ADD
49 - Makita HOOK AN504 AN504--49-417602-9	£2.49	£2.99	ADD
50 - Makita FLAT WASHER 6 AN901 AN504--50-267171-8	£1.66	£1.99	ADD
51 - Makita CAP HD SCREW M5X16 HM1200 AN504--51-922222-1	£0.83	£0.99	ADD
52 - Makita AIR PLUG COMP AN902/AG125 AN504--52-153936-3	£5.83	£6.99	ADD
54 - Makita HEX SOCKET HD BOLT M5X25 AN504--54-922241-7	£1.66	£1.99	ADD
55 - Makita O RING 14 AN942/HR3210 AN504--55-213176-6	£0.83	£0.99	ADD
56 - Makita TRIGGER VALVE GUIDE AN942 AN504--56-417695-6	£2.49	£2.99	ADD
57 - Makita O RING 16 BFS440/AN942/BFR540 AN504--57-213262-3	£1.66	£1.99	ADD
58 - Makita O RING 6 AN942/UC3520A/UC3530A AN504--58-213039-6	£0.83	£0.99	ADD
59 - Makita O RING 8 AN942 AN504--59-213040-1	£0.83	£0.99	ADD
60 - Makita PILOT VALVE AN504 AN504--60-317554-3	£4.99	£5.99	ADD
61 - Makita O RING 12 AN942/HP2070 AN504--61-213122-9	£0.83	£0.99	ADD
62 - Makita COMPRESSION SPRING 3 AN504 AN504--62-233334-8	£1.66	£1.99	ADD
63 - Makita TRIGGER VALVE STEM AN504 AN504--63-324112-8	£4.16	£4.99	ADD
64 - Makita O RING 2 AN504 AN504--64-213050-8	£2.49	£2.99	ADD
65 - Makita TRIGGER VALVE CASE AN504 AN504--65-317532-3	£3.33	£3.99	ADD
66 - Makita CONICAL COMP SPRING 4-11 AN50 AN504--66-233908-5	£2.49	£2.99	ADD
67 - Makita O RING 4 BPJ141/181/BUR181 AN504--67-213023-1	£0.83	£0.99	ADD
68 - Makita IDLER AN504 AN504--68-344994-2	£2.49	£2.99	ADD
69 - Makita SPRING PIN 2.5-14 AN504 AN504--69-258023-4	£0.83	£0.99	ADD
70 - Makita TRIGGER AN504 AN504--70-417590-0	£2.49	£2.99	ADD
71 - Makita HOLDER AN504 AN504--71-417603-7	£3.33	£3.99	ADD
72 - Makita STOPPER AN504 AN504--72-310115-8	£20.83	£24.99	ADD
73 - Makita TENSION PIN 3-10 DIN 1481 AN504--73-951054-9	£0.83	£0.99	ADD
74 - Makita COMPRESSION SPRING 3 AN504 AN504--74-233305-5	£1.66	£1.99	ADD
75 - Makita COMPRESSION SPRING 7 AN504 AN504--75-233267-7	£2.49	£2.99	ADD
76 - Makita ADJUSTER AN504--76-310114-0	£9.16	£10.99	ADD
76 - Makita ADJUSTER AN504 AN504--76-310128-9	£14.16	£16.99	ADD
77 - Makita COMPRESSION SPRING 6 AN504 AN504--77-233382-7	£2.49	£2.99	ADD
78 - Makita FEEDING CLAW AN504/510 AN504--78-310116-6	£17.49	£20.99	ADD
79 - Makita URETHANE RING 3 AN942/6837 AN504--79-262054-7	£2.49	£2.99	ADD
80 - Makita TORSION SPRING 6 AN510 AN504--80-231652-8	£2.49	£2.99	ADD
81 - Makita SHOULDER PIN 3-4 AN510 AN504--81-256463-0	£1.66	£1.99	ADD
82 - Makita O RING 8 AN510 AN504--82-213007-9	£0.83	£0.99	ADD
83 - Makita PISTON AN504 AN504--83-324114-4	£12.49	£14.99	ADD
84 - Makita O RING 17 HM1317C-CB/HR2410/ AN504--84-213261-5	£1.66	£1.99	ADD
85 - Makita COMPRESSION SPRING 10 AN504 AN504--85-233040-5	£2.49	£2.99	ADD
86 - Makita HOLDER CAP AN901 AN504--86-414934-5	£2.49	£2.99	ADD
87 - Makita CHANGE PLATE AN504 AN504--87-417585-3	£3.33	£3.99	ADD
88 - Makita MAGAZINE COMP AN504 AN504--88-154456-0	£10.83	£12.99	ADD
89 - Makita RUBBER PLATE 6-20 AN901 AN504--89-423232-6	£0.83	£0.99	ADD
90 - Makita TENSION SPRING 5 AN504 AN504--90-231791-4	£3.33	£3.99	ADD
91 - Makita HOLDER CAP AN901 AN504--91-414934-5	£2.49	£2.99	ADD
92 - Makita HEX SOCKET HD BOLT M5X8 6837 AN504--92-265480-9	£1.66	£1.99	ADD
93 - Makita LOCK LEVER 6837 AN504--93-417584-5	£2.49	£2.99	ADD
94 - Makita COMPRESSION SPING 7 AN504 LF1 AN504--94-233307-1	£1.66	£1.99	ADD
95 - Makita LOCK PIN AN504 AN504--95-324116-0	£1.66	£1.99	ADD
96 - Makita MAGAZINE CAP AN504 AN504--96-417596-8	£10.83	£12.99	ADD
98 - Makita HEX SOCKET B HD SCREW AN504 AN504--98-266288-4	£2.49	£2.99	ADD
99 - Makita DOOR AN504 AN504--99-310118-2	£29.99	£35.99	ADD
100 - Makita HEX SOCKET HD BOLT M5X22 AN50 AN504--100-265492-2	£1.66	£1.99	ADD
102 - Makita COMPRESSION SPRING 4 AN504--102-231473-8	£0.83	£0.99	ADD
105 - Makita CHECK CLAW AN504 AN504--105-310007-1	£11.66	£13.99	ADD
107 - Makita PIN 3 BST220/1/JR3020/4304/ AN504--107-256221-4	£0.83	£0.99	ADD
108 - Makita HEX SOCKET HD BOLT M5X25 AN504--108-922241-7	£1.66	£1.99	ADD
109 - Makita MAGAZINE LOCK AN504 AN504--109-344993-4	£2.49	£2.99	ADD
112 - Makita O RING 3 AN510/620/711 DA3010F AN504--112-213034-6	£0.83	£0.99	ADD
113 - Makita THIN WASHER 30 6796-98D/FD* AN504--113-253356-2	£2.49	£2.99	ADD
114 - Makita THIN WASHER 6 4300SB AN504--114-253308-3	£0.83	£0.99	ADD
1001 - Makita SAFETY GOGGLE AN504--1001-192517-8	£3.33	£3.99	ADD
1001 - Makita SAFETY GOGGLE AN504--1001-195246-2	-	-	No Longer Available
1002 - Makita OIL SUPPLY 30CC AN504--1002-181434-7	£3.33	£3.99	ADD
1003 - Makita PLASTIC CARRYING CASE AN504--1003-824636-9	£16.66	£19.99	ADD
