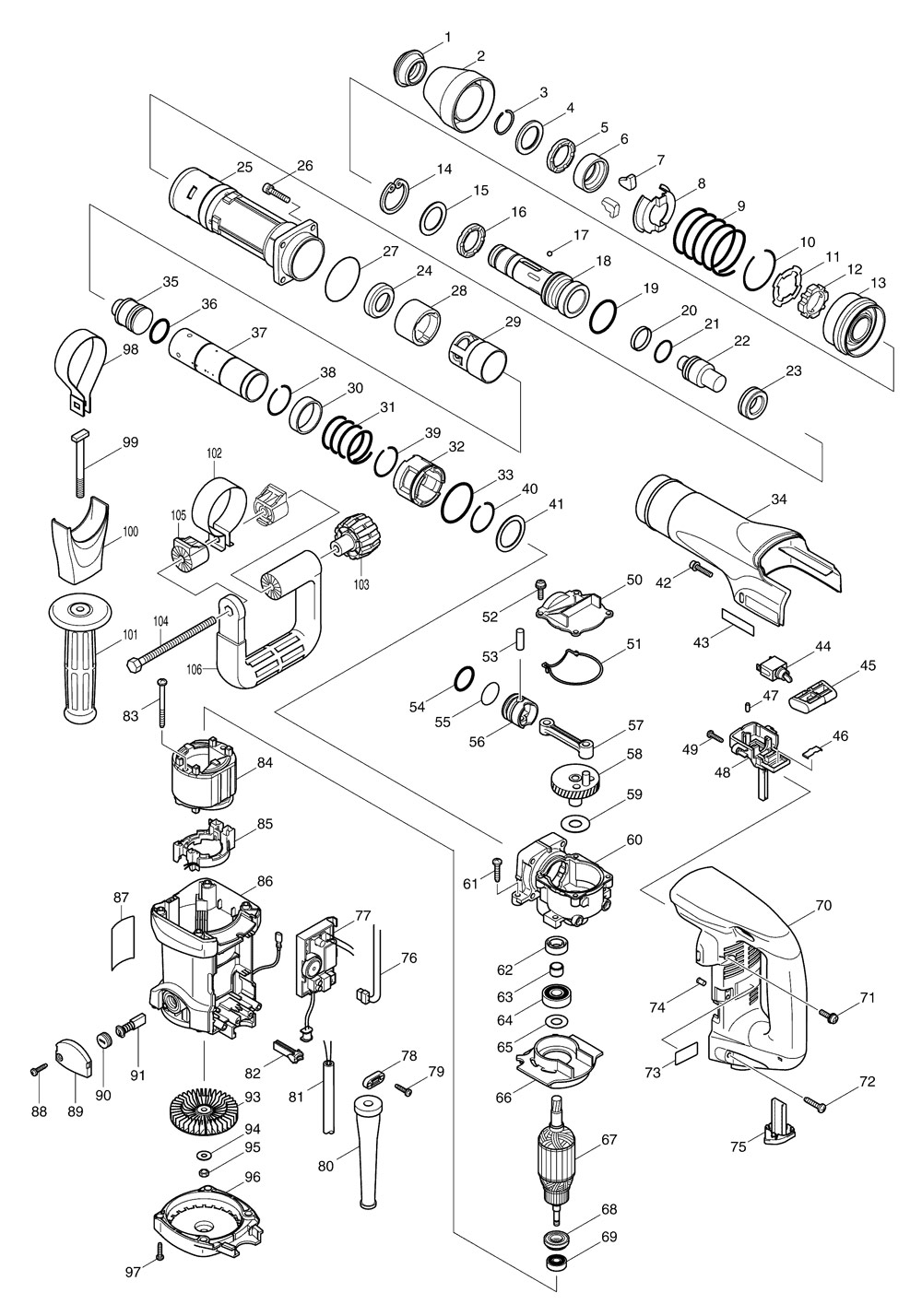

Makita HM0860C Sds Max Demolition Hammer Spare Parts

HM0860C

	(Ex VAT)	Inc VAT
1 - Makita TOOL HOLDER CAP HM0860C/HR3540 HM0860C--1-286269-2	£1.66	£1.99	ADD
2 - Makita CHUCK COVER HM0860C HM0860C--2-418351-1	£2.49	£2.99	ADD
3 - Makita RING SPRING 25 HR5001C/HM1202C HM0860C--3-231984-3	£2.49	£2.99	ADD
4 - Makita FLAT WASHER 28 HM0860C HM0860C--4-267272-2	£2.49	£2.99	ADD
5 - Makita URETHANE RING 28 HM0860C* HM0860C--5-262110-3	£4.16	£4.99	ADD
5 - Makita RUBBER RING 28 HM0870C/781C HM0860C--5-424261-2	£2.49	£2.99	ADD
6 - Makita CHUCK RING HM0860C/870C/871C HM0860C--6-331659-5	£4.99	£5.99	ADD
7 - Makita TOOL RETAINER HM0860C/0870C HM0860C--7-310108-5	£4.99	£5.99	ADD
8 - Makita SPRING GUIDE HM0860C/870C/871C HM0860C--8-345360-6	£10.83	£12.99	ADD
9 - Makita COMPRESSION SPRING 52 HM0860C HM0860C--9-233387-7	£2.49	£2.99	ADD
*10 - Makita RING SPRING 50 HM0860C [No Longer Available]** HM0860C--10-233928-9	-	-	No Longer Available
11 - Makita PLATE HM0860C* HM0860C--11-345371-1	£2.49	£2.99	ADD
11 - Makita PLATE HM0870C/871C HM0860C--11-346141-1	£2.49	£2.99	ADD
12 - Makita LOCK RING HM0860C/0870C/0871C HM0860C--12-310145-9	£9.16	£10.99	ADD
13 - Makita CHANGE RING HM0860C HM0860C--13-418357-9	£5.99	£7.19	ADD
14 - Makita RETAINING RING/INT ROUND R-42 HM0860C--14-257960-9	£4.99	£5.99	ADD
14 - Makita RETAINING RING R-42 HR3000C HM0860C--14-962211-4	£1.66	£1.99	ADD
15 - Makita FLAT WASHER 29 HM0860C HM0860C--15-267273-0	£2.49	£2.99	ADD
16 - Makita URETHANE RING 28 HM0860C* HM0860C--16-262110-3	£4.16	£4.99	ADD
16 - Makita RUBBER RING 28 HM0870C/781C HM0860C--16-424261-2	£2.49	£2.99	ADD
17 - Makita STEEL BALL 4.8 HM0860C--17-216002-8	£0.83	£0.99	ADD
18 - Makita TOOL HOLDER HM0860C/870C/871C HM0860C--18-324387-9	£37.80	£45.36	ADD
19 - Makita O RING 38 HM0860C HM0860C--19-213527-3	£2.49	£2.99	ADD
20 - Makita FLUORIDE RING 28 HM1202C/HR500 HM0860C--20-213431-6	£10.83	£12.99	ADD
21 - Makita O RING 23 HM1202C/HR5001C HM0860C--21-213394-6	£1.66	£1.99	ADD
22 - Makita IMPACT BOLT HM0860C/870C/871C HM0860C--22-324389-5	£9.16	£10.99	ADD
23 - Makita RUBBER RING 20 HM0860C HM0860C--23-421852-0	£5.83	£6.99	ADD
24 - Makita CUP WASHER 23 HM0860C HM0860C--24-267780-3	£2.49	£2.99	ADD
25 - Makita BARREL HM0860C--25-317720-2	£42.49	£50.99	ADD
25 - Makita BARREL HM0860C HM0860C--25-318052-0	£54.99	£65.99	ADD
26 - Makita CAP HD SCREW M6X30 8900N HM0860C--26-922351-0	£1.66	£1.99	ADD
27 - Makita O RING 53 HM0860C--27-213656-2	£1.66	£1.99	ADD
28 - Makita CHUCK RING HM0860C* HM0860C--28-418352-9	£3.33	£3.99	ADD
28 - Makita CHUCK RING HM0860C* HM0860C--28-450097-3	£3.33	£3.99	ADD
28 - Makita GUIDE RING HM0870/71C HM0860C--28-451639-6	£3.33	£3.99	ADD
29 - Makita SLIDE SLEEVE HM0860C--29-418356-1	£2.49	£2.99	ADD
29 - Makita SLIDE SLEEVE HM0860C--29-419202-1	£2.49	£2.99	ADD
29 - Makita SLIDE SLEEVE HM0860C/870C/871C HM0860C--29-450098-1	£2.49	£2.99	ADD
30 - Makita RING 36 HM0860C/870C/871C HM0860C--30-331660-0	£6.66	£7.99	ADD
31 - Makita COMPRESSION SPRING 37 HM0860C HM0860C--31-233386-9	£2.49	£2.99	ADD
32 - Makita CYLINDER GUIDE HM0860C HM0860C--32-317719-7	£6.66	£7.99	ADD
33 - Makita O RING GD0810C HM0860C--33-213611-4	£1.66	£1.99	ADD
34 - Makita CRANK HOUSING COVER HM0860C HM0860C--34-183719-7	£9.16	£10.99	ADD
35 - Makita STRIKER HM0860C/870C/871C HM0860C--35-324388-7	£6.66	£7.99	ADD
36 - Makita O RING 24 HM0860C HM0860C--36-213958-6	£2.49	£2.99	ADD
37 - Makita CYLINDER 32 HM0860C/870C/871C HM0860C--37-331658-7	£29.99	£35.99	ADD
38 - Makita RING SPRING 34 HM0860C HM0860C--38-233927-1	£0.83	£0.99	ADD
39 - Makita RING SPRING 34 HM0860C HM0860C--39-233927-1	£0.83	£0.99	ADD
40 - Makita RING SPRING 34 HM0860C HM0860C--40-233927-1	£0.83	£0.99	ADD
41 - Makita FLAT WASHER 34 HM0860C HM0860C--41-267079-6	£8.33	£9.99	ADD
42 - Makita CAP HD SCREW M5X25 2702 HM0860C--42-922243-3	£1.66	£1.99	ADD
43 - Makita MAKITA LABEL 500 4305/HR160DW HM0860C--43-819063-3	£2.49	£2.99	ADD
44 - Makita SWITCH BTM40/50/3707F/3708F/ HM0860C--44-651423-1	£8.33	£9.99	ADD
45 - Makita SWITCH LEVER HM0860C HM0860C--45-418360-0	£2.49	£2.99	ADD
46 - Makita LEAF SPRING HM1110/HM1317C/CB HM0860C--46-232209-8	£1.66	£1.99	ADD
47 - Makita RUBBER PIN 4 HM1317C-CB/HM0860 HM0860C--47-263027-3	£1.66	£1.99	ADD
48 - Makita SWITCH BOX HM0860C HM0860C--48-418361-8	£2.49	£2.99	ADD
49 - Makita PT SCREW 4X18 KP0810C* HM0860C--49-265995-6	£0.83	£0.99	ADD
50 - Makita CRANK CAP HM0860C HM0860C--50-418358-7	£2.49	£2.99	ADD
51 - Makita SEAL RING HM0860C HM0860C--51-421851-2	£1.66	£1.99	ADD
52 - Makita PAN HD SCREW 5X20 W/CP HM0860C--52-911233-1	£0.83	£0.99	ADD
53 - Makita PIN 8 HM0860C HM0860C--53-268104-6	£1.66	£1.99	ADD
54 - Makita O RING 24 HM0860C HM0860C--54-213958-6	£2.49	£2.99	ADD
55 - Makita O RING 26/6960DZ OIL UNIT COMP HM0860C--55-213432-4	£1.66	£1.99	ADD
56 - Makita PISTON HM0860C HM0860C--56-418349-8	£1.66	£1.99	ADD
57 - Makita CONNECTING ROD HM0860C/870C/71 HM0860C--57-418350-3	£2.49	£2.99	ADD
58 - Makita CRANKSHAFT COMP HM0860C HM0860C--58-153676-3	£40.83	£48.99	ADD
59 - Makita FLAT WASHER 14 HM1317C-CB/HM HM0860C--59-267166-1	£2.49	£2.99	ADD
60 - Makita CRANK HOUSING COMP HM0860C HM0860C--60-153678-9	£54.99	£65.99	ADD
61 - Makita PT SCREW 5X25 HM0860C--61-266041-8	£1.66	£1.99	ADD
62 - Makita OIL SEAL 15 BHR262/HM1203/BHR HM0860C--62-213231-4	£5.83	£6.99	ADD
63 - Makita SLEEVE 12 HR4500C/4511C/BHR262 HM0860C--63-331596-3	£4.16	£4.99	ADD
64 - Makita BALL BEARING 6201LLU HM0860C HM0860C--64-211137-0	£4.16	£4.99	ADD
65 - Makita THIN HARD WASHER 12 JN320 HM0860C--65-253759-0	£1.66	£1.99	ADD
66 - Makita BAFFLE PLATE HM0860C HM0860C--66-418355-3	£1.66	£1.99	ADD
67 - Makita ARMATURE ASS 110V HM0860C HM0860C--67-513561-6	£46.66	£55.99	ADD
67 - Makita ARMATURE ASS 240V HM0860C HM0860C--67-513563-2	£46.66	£55.99	ADD
68 - Makita INSULATION WASHER HM0870/71C HM0860C--68-681650-6	£4.99	£5.99	ADD
69 - Makita BALL BEARING 608DDW GA5020 HM0860C--69-210005-4	£6.66	£7.99	ADD
70 - Makita HANDLE HM0860C HM0860C--70-418366-8	£16.66	£19.99	ADD
71 - Makita PAN HD SCREW 5X20 W/CP HM0860C--71-911233-1	£0.83	£0.99	ADD
72 - Makita PT SCREW 5X25 HM0860C--72-266041-8	£1.66	£1.99	ADD
73 - Makita SERIAL NO. LABEL HM0860C HM0860C--73-815954-6	£1.66	£1.99	ADD
74 - Makita ACRYLIC PIN 5 HR4000C/HR3000C HM0860C--74-416285-2	£1.66	£1.99	ADD
75 - Makita HANDLE CAP HM0860C HM0860C--75-418359-5	£2.49	£2.99	ADD
76 - Makita LEAD UNIT HM0860C HM0860C--76-638294-3	£1.66	£1.99	ADD
77 - Makita CONTROLLER 240V HM0860C HM0860C--77-631554-2	-	-	No Longer Available
77 - Makita CONTROLLER 110V HM0860C HM0860C--77-631555-0	£40.83	£48.99	ADD
78 - Makita STRAIN RELIEF 110V HS6100/7100 HM0860C--78-687053-2	£1.66	£1.99	ADD
79 - Makita PT SCREW 4X18 KP0810C* HM0860C--79-265995-6	£0.83	£0.99	ADD
80 - Makita CORD GUARD 10 HM1317C/CB/HR300 HM0860C--80-682560-0	£2.49	£2.99	ADD
81 - Makita POWER SUPPLY CORD 1.5-2-4.0 HM0860C--81-692623-4	£24.99	£29.99	ADD
81 - Makita POWER SUPPLY CORD 1.5-2-4.0* HM0860C--81-695228-9	£23.33	£27.99	ADD
82 - Makita FIX ROD HM0860C HM0860C--82-418353-7	£1.66	£1.99	ADD
83 - Makita PT SCREW 5X60 HS7100/HM1317C HM0860C--83-266044-2	£2.49	£2.99	ADD
84 - Makita FIELD ASS 110V HM0860C HM0860C--84-634506-2	£12.49	£14.99	ADD
84 - Makita FIELD ASS 240V HM0860C HM0860C--84-634508-8	£12.49	£14.99	ADD
85 - Makita SUPPORT COMP HM0860C HM0860C--85-638293-5	£4.16	£4.99	ADD
86 - Makita MOTOR HOUSING COMP HM0860C HM0860C--86-153677-1	£23.33	£27.99	ADD
87 - Makita NAME PLATE HM0860C HM0860C--87-850965-4	-	-	No Longer Available
88 - Makita PT SCREW 4X18 KP0810C* HM0860C--88-265995-6	£0.83	£0.99	ADD
89 - Makita BRUSH HOLDER COVER HM0860C HM0860C--89-418362-6	£2.49	£2.99	ADD
90 - Makita BRUSH HOLDER CAP PC5000/01C/GA HM0860C--90-643750-0	£2.49	£2.99	ADD
91 - Makita A.C. CARBON BRUSH CB-304 HM0860C--91-191961-6	£6.66	£7.99	ADD
91 - Makita AC CARBON BRUSH CB-323* HM0860C--91-193922-2	£6.66	£7.99	ADD
91 - Makita AC CARBON BRUSH CB-327 HM0860C--91-194285-9	£6.66	£7.99	ADD
93 - Makita FAN 76 ASSY HM0860C HM0860C--93-135058-1	-	-	No Longer Available
94 - Makita WASHER 6 HM0860C--94-253047-5	£0.83	£0.99	ADD
95 - Makita HEX NUT M6* HM0860C--95-931303-0	£0.83	£0.99	ADD
96 - Makita REAR COVER HM0860C HM0860C--96-418354-5	£4.16	£4.99	ADD
97 - Makita PT SCREW 4X18 KP0810C* HM0860C--97-265995-6	£0.83	£0.99	ADD
98 - Makita GRIP SPRING 60 HM0860C HM0860C--98-345361-4	£4.99	£5.99	ADD
99 - Makita SQUARE BOLT M8X80 HM0860C HM0860C--99-266322-0	£1.66	£1.99	ADD
100 - Makita SIDE GRIP BASE 60 HM0860C HM0860C--100-418363-4	£2.49	£2.99	ADD
102 - Makita HANDLE BASE COMPLETE HM1100C HM0860C--102-152620-7	£12.49	£14.99	ADD
103 - Makita WING NUT M8 HM1100C/HM1200K HM0860C--103-252640-2	£4.99	£5.99	ADD
104 - Makita HEX HD BOLT M8X150 HM0860C--104-265439-6	£1.66	£1.99	ADD
105 - Makita SIDE HANDLE CAM HM1202C/HR4500 HM0860C--105-417002-3	£2.49	£2.99	ADD
106 - Makita SIDE HANDLE HM1202C/1110/1111 HM0860C--106-417003-1	£9.16	£10.99	ADD
1001 - Makita GRIP 36 COMP HR3000/HR4000C* HM0860C--1001-152554-4	£9.16	£10.99	ADD
1001 - Makita GREASE VESSEL 93G HM0860C--1001-181573-3	£6.66	£7.99	ADD
1001 - Makita GREASE VESSEL SET HM0860C--1001-194683-7	£6.66	£7.99	ADD
1002 - Makita PLASTIC CARRYING CASE HM0860C--1002-824708-0	£44.99	£53.99	ADD
5001 - Makita PLUG UK TYPE 16A-4H/110V No Longer Available HM0860C--5001-655030-2	-	-	No Longer Available
5002 - Makita NON INSULATED TERMINAL MT814/1 HM0860C--5002-654091-9	£1.66	£1.99	ADD
