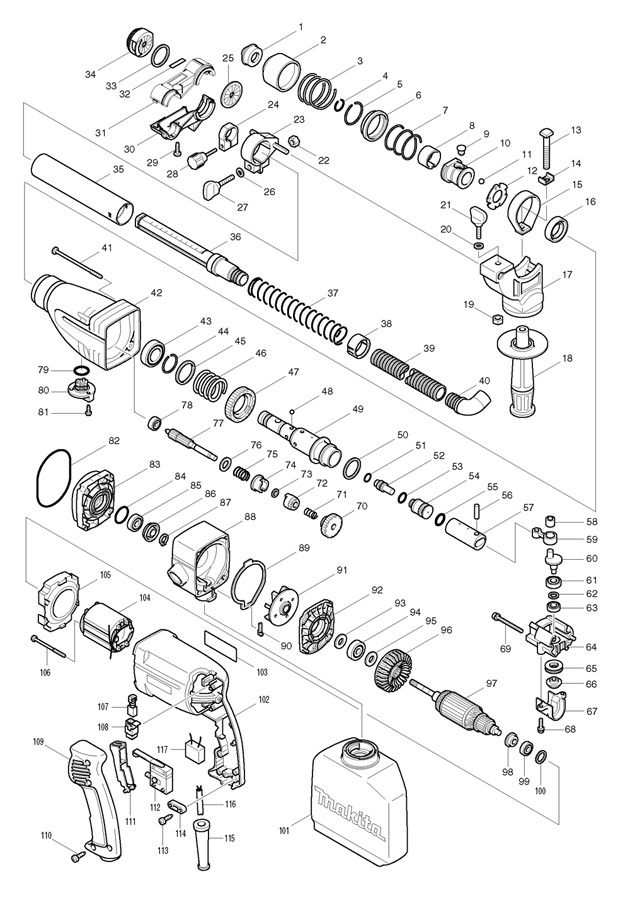

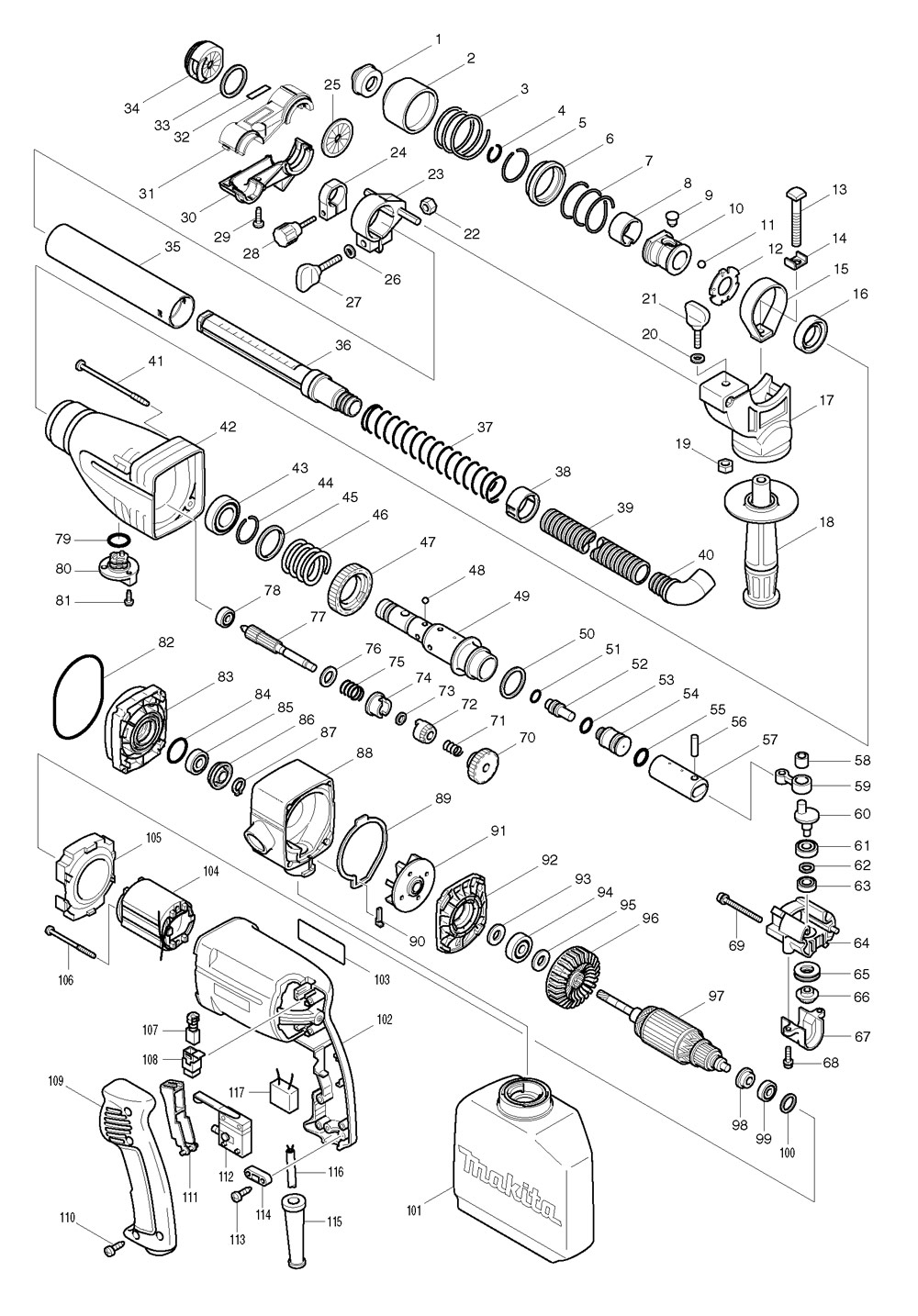

Makita HR2430 Rotary Hammer Spare Parts

HR2430

	(Ex VAT)	Inc VAT
1 - Makita CAP 31 HR2430--1-286248-0	£1.66	£1.99	ADD
1 - Makita CAP 31 HR160DW/HR2410/2420 HR2430--1-286265-0	£1.66	£1.99	ADD
2 - Makita CHUCK COVER HR160DW/HR2410/242 HR2430--2-416410-5	£2.49	£2.99	ADD
3 - Makita COMPRESSION SPRING 38 HR160DW HR2430--3-233203-3	£2.49	£2.99	ADD
4 - Makita RING SPRING 19 HR160DW/HR2420 HR2430--4-231979-6	£1.66	£1.99	ADD
5 - Makita RING SPRING 30.5 HR3000C/HR200 HR2430--5-231936-4	£1.66	£1.99	ADD
6 - Makita SPRING GUIDE HR2410/2420//HR30 HR2430--6-323819-3	£1.66	£1.99	ADD
7 - Makita COMPRESSION SPRING 35 HR2430--7-233234-2	£1.66	£1.99	ADD
8 - Makita LEAF SPRING 26 BHR200S/HR2430 HR2430--8-232190-3	£1.66	£1.99	ADD
9 - Makita PIN 8 HR160DW/2410/HR3000C HR2430--9-256447-8	£2.49	£2.99	ADD
10 - Makita CHUCK RING HR2410/2420/HR3000C HR2430--10-323820-8	-	-	No Longer Available
11 - Makita STEEL BALL 7.0 HR2430--11-216022-2	£0.83	£0.99	ADD
12 - Makita GUIDE WASHER HR2410/2420/2430 HR2430--12-344690-2	£1.66	£1.99	ADD
13 - Makita SQUARE BOLT M8x60 HR2430 HR2430--13-266092-1	£1.66	£1.99	ADD
14 - Makita SQUARE WASHER 9 HR2430 HR2430--14-267719-6	£1.66	£1.99	ADD
14 - Makita BRUSH HOLDER UH4860/4304/4305 HR2430--14-643923-5	£2.49	£2.99	ADD
15 - Makita BELT HR2430 HR2430--15-344205-5	£1.66	£1.99	ADD
16 - Makita OIL SEAL 20 HR2410/HR2420 HR2430--16-213313-2	£7.49	£8.99	ADD
17 - Makita GRIP BASE HR2430 HR2430--17-417157-4	£4.16	£4.99	ADD
18 - Makita GRIP 36 COMP 8413D-43D/HP2030* HR2430--18-152521-9	£3.33	£3.99	ADD
19 - Makita HEX FULL NUT M5 HR2430--19-931202-6	£0.83	£0.99	ADD
20 - Makita FLAT WASHER 5 DIN125-B 5* HR2430--20-941101-4	£0.83	£0.99	ADD
21 - Makita WING SCREW M5X20 RP0900/KP0810 HR2430--21-251878-6	£1.66	£1.99	ADD
22 - Makita HEX FULL NUT M6 HR2430--22-931302-2	£0.83	£0.99	ADD
23 - Makita PIPE HOLDER HR2430/HR2432 HR2430--23-417156-6	£5.83	£6.99	ADD
24 - Makita STOPPER RING HR2430/HR2432 HR2430--24-414795-3	£6.66	£7.99	ADD
25 - Makita SEALING CAP/DUST EXTRACTION HR2430--25-421384-7	£1.66	£1.99	ADD
26 - Makita FLAT WASHER 6 DIN125-B HR2430--26-941151-9	£0.83	£0.99	ADD
27 - Makita THUMB SCREW M6X30 HR2430/2432 HR2430--27-265705-1	£1.66	£1.99	ADD
28 - Makita KNOB SCREW M4X24 HR2430/HR243 HR2430--28-265706-9	£3.33	£3.99	ADD
29 - Makita TF SCREW4X16 TRILBULAR HR2430--29-265926-5	£0.83	£0.99	ADD
30 - Makita COLLECTOR 25L HR2430/HR2432 HR2430--30-414800-6	£6.66	£7.99	ADD
31 - Makita COLLECTOR 25R HR2430/HR2432 HR2430--31-414799-5	£6.66	£7.99	ADD
32 - Makita MAKITA LABEL HR2430/HR2432 HR2430--32-819071-4	£1.66	£1.99	ADD
33 - Makita FLAT WASHER 28 HR2430/HR2432 HR2430--33-267091-6	£4.99	£5.99	ADD
34 - Makita FITTING RUBBER HR2430 HR2430--34-421726-5	£2.49	£2.99	ADD
35 - Makita SUPPORT PIPE HR2430/2432 HR2430--35-414797-9	£4.99	£5.99	ADD
36 - Makita SLIDE PIE HR2430/2432 HR2430--36-414796-1	£6.66	£7.99	ADD
37 - Makita COMPRESSION SPRING 25 HR2430 HR2430--37-233015-4	£2.49	£2.99	ADD
38 - Makita SPRING STOPPER HR2430/2432 HR2430--38-414794-5	£4.99	£5.99	ADD
39 - Makita HOSE 19 HR2430/2432 HR2430--39-414898-3	£3.33	£3.99	ADD
40 - Makita CUFFS 19-22 HR2430/HR2432 HR2430--40-417153-2	£2.49	£2.99	ADD
41 - Makita PT SCREW 4X90 HR2430 HR2430--41-266243-6	£2.49	£2.99	ADD
42 - Makita GEAR HOUSING COMP HR2410/2420 HR2430--42-150965-7	£9.16	£10.99	ADD
43 - Makita BALL BEARING 6904LLU HR2000/HR HR2430--43-211323-3	£8.33	£9.99	ADD
44 - Makita RING SPRING 26 HR2410/HR2420 HR2430--44-231962-3	£0.83	£0.99	ADD
45 - Makita SPECIAL RING WASHER 29 HR HR2430--45-267132-8	£2.49	£2.99	ADD
46 - Makita COMPRESSION SPRING 29 HR2410 HR2430--46-233109-5	£2.49	£2.99	ADD
47 - Makita SPUR GEAR 48 HR2410/HR2420 HR2430--47-226290-9	£23.33	£27.99	ADD
48 - Makita STEEL BALL 5.6 HR2430--48-216011-7	£0.83	£0.99	ADD
49 - Makita TOOL HOLDER HR2410/2420 HR2430--49-323822-4	£40.83	£48.99	ADD
50 - Makita NARROW BLUE WASHER 27 HR HR2430--50-267129-7	£1.66	£1.99	ADD
51 - Makita O RING 10 HR2000/HR160DWH/HR24 HR2430--51-213063-9	£3.33	£3.99	ADD
52 - Makita IMPACT BOLT HR2410/2420/2430 HR2430--52-323818-5	£3.33	£3.99	ADD
53 - Makita O RING 11 HR2410/HR2420/BHR200 HR2430--53-213117-2	£1.66	£1.99	ADD
54 - Makita STRIKER HR2410/HR2420/2430 HR2430--54-322740-3	£6.66	£7.99	ADD
55 - Makita O RING 16 HR1800/HR160DWH/HR2 HR2430--55-213214-4	£3.33	£3.99	ADD
56 - Makita PIN 6 HR2210/HR2410/HR2420 HR2430--56-256099-5	£2.49	£2.99	ADD
57 - Makita PISTON CYLINDER HR2410/HR2420 HR2430--57-331446-2	£18.33	£21.99	ADD
58 - Makita NEEDLE BEARING 810 HR2430 HR2430--58-212005-0	£2.49	£2.99	ADD
59 - Makita CONNECTING ROD HR2410/HR2420 HR2430--59-331447-0	£6.66	£7.99	ADD
60 - Makita CRANK SHAFT HR2410/HR2420/30 HR2430--60-322741-1	£18.33	£21.99	ADD
61 - Makita BALL BEARING 699ZZ HR2410/2430 HR2430--61-211098-4	£6.66	£7.99	ADD
62 - Makita BLUE WASHER 9 HR2410 HR2430--62-267130-2	£0.83	£0.99	ADD
63 - Makita BALL BEARING 689ZZ HR2410 HR2430--63-211099-2	£6.66	£7.99	ADD
64 - Makita CRANK HOUSING COMPLETE HR2410 HR2430--64-159761-0	£27.49	£32.99	ADD
65 - Makita THRUST NEEDLE 1224 6701B/HR241 HR2430--65-212110-3	£7.49	£8.99	ADD
66 - Makita STRAIGHT BEVEL GEAR 12 HR2410 HR2430--66-226726-8	£18.33	£21.99	ADD
67 - Makita GEAR COVER HR2410/HR2420/24310 HR2430--67-415630-8	£2.49	£2.99	ADD
68 - Makita PAN HD SCREW M4X16 HR2430--68-911526-6	£1.66	£1.99	ADD
69 - Makita PAN HD SCREW M4X50 HR2410 HR2430--69-911576-1	£1.66	£1.99	ADD
70 - Makita HELICAL GEAR 31 HR2410/HR2420 HR2430--70-226434-1	£10.83	£12.99	ADD
71 - Makita COMPRESSION SPRING 8 HR2430--71-233110-0	£0.83	£0.99	ADD
72 - Makita STRAIGHT BEVEL GEAR 14 HR2410 HR2430--72-226725-0	£31.66	£37.99	ADD
73 - Makita NARROW BLUE WASHER 8 HR HR2430--73-267131-0	£0.83	£0.99	ADD
74 - Makita CLUTCH CAM HR2430--74-322743-7	£11.66	£13.99	ADD
75 - Makita COMPRESSION SPRING 12 HR2430--75-233089-5	£0.83	£0.99	ADD
76 - Makita HARD WASHER 12 HR2430--76-253744-3	£1.66	£1.99	ADD
77 - Makita SPUR GEAR 10 HR2410/HR2420 HR2430--77-226293-3	£23.33	£27.99	ADD
78 - Makita BALL BEARING 606ZZ HR2410/2450 HR2430--78-211012-0	£9.99	£11.99	ADD
79 - Makita O RING 17 HM1317C-CB/HR2410/ HR2430--79-213261-5	£1.66	£1.99	ADD
80 - Makita CHANGE LEVER COMPLETE HR2410 HR2430--80-152471-8	£3.33	£3.99	ADD
81 - Makita PAN HD SCREW M4X11 HR2430--81-251392-2	£0.83	£0.99	ADD
82 - Makita O RING 67 GA7050/GA9050/ HR2430--82-213720-9	£1.66	£1.99	ADD
83 - Makita INNER HOUSING COMP HR2430 HR2430--83-152616-8	£19.16	£22.99	ADD
84 - Makita O RING 24 BHS630/HR2430/BHR162 HR2430--84-213953-6	£2.49	£2.99	ADD
85 - Makita BALL BEARING 609LLU HR2420 HR2430--85-210060-6	£3.33	£3.99	ADD
86 - Makita DUST GUARD HR2430 HR2430--86-317332-1	£7.49	£8.99	ADD
87 - Makita EXT DIN 471 CIRCLIP-10* HR2430--87-961006-2	£0.83	£0.99	ADD
88 - Makita FAN HOUSING HR2430 HR2430--88-417158-2	£9.99	£11.99	ADD
89 - Makita DUSTPROOF SHEET HR2430 HR2430--89-421725-7	£4.16	£4.99	ADD
90 - Makita PLATE HR2430 HR2430--90-344853-0	£2.49	£2.99	ADD
91 - Makita FAN HR2430 HR2430--91-241664-3	£9.99	£11.99	ADD
92 - Makita DUST COVER HR2430 HR2430--92-317334-7	£11.66	£13.99	ADD
93 - Makita THIN BLUE WASHER 10 HR HR2430--93-267213-8	£0.83	£0.99	ADD
94 - Makita BALL BEARING 6000LLU HM1100C HR2430--94-210054-1	£11.66	£13.99	ADD
95 - Makita THIN BLUE WASHER 10 HR HR2430--95-267213-8	£0.83	£0.99	ADD
96 - Makita FAN 60 HR2430--96-240032-7	-	-	Contact Us For Price
97 - Makita ARMATURE 110V HR3520* HR2430--97-517351-9	£47.49	£56.99	ADD
97 - Makita ARMATURE ASS'Y 220V HR2430--97-517353-5	-	-	Contact Us For Price
97 - Makita ARMATURE ASS'Y 240V HR2430--97-517354-3	-	-	Contact Us For Price
98 - Makita INSULATION WASHER HR2430--98-681600-1	£1.66	£1.99	ADD
99 - Makita BALL BEARING HP1631/607LLB/430 HR2430--99-211021-9	£6.66	£7.99	ADD
100 - Makita THIN NARR BLUE WASHER 14 HR2430--100-253842-3	£0.83	£0.99	ADD
101 - Makita DUST BAG ASS'Y HR2430--101-122614-6	£26.66	£31.99	ADD
102 - Makita MOTOR HOUSING HR2410/2430 HR2430--102-416970-7	£25.83	£30.99	ADD
103 - Makita NAME PLATE HR2430* HR2430--103-852335-3	£1.66	£1.99	ADD
104 - Makita FIELD 220V HR2430--104-633313-0	-	-	Contact Us For Price
104 - Makita FIELD 110V HR2430/HR2410 HR2430--104-639341-3	£13.33	£15.99	ADD
105 - Makita BAFFLE PLATE HR2410/HR2420 HR2430--105-415628-5	£2.49	£2.99	ADD
106 - Makita PT SCREW 4X60 TRILBULAR HR2430--106-266052-3	£1.66	£1.99	ADD
107 - Makita Replacement Carbon Brushes Brush Pair CB-419 HP1641 HR2430--107-191962-4	£4.16	£4.99	ADD
109 - Makita HANDLE COVER HR2410/2430 HR2430--109-415627-7	£9.16	£10.99	ADD
110 - Makita PT SCREW 4X20 TRILOBULAR HR2430--110-266045-0	£0.83	£0.99	ADD
111 - Makita SWITCH LEVER HR2410/HR2420 HR2430--111-415629-3	£2.49	£2.99	ADD
112 - Makita SWITCH JIMK711W HR2420 HR2430--112-650514-5	£24.99	£29.99	ADD
112 - Makita SWITCH JIMK711W 110v HR2420* HR2430--112-651972-8	-	-	No Longer Available
112 - Makita SWITCH J2MK711X 240n HR2420* HR2430--112-651973-6	£24.99	£29.99	ADD
113 - Makita PT SCREW 4X18 KP0810C* HR2430--113-265995-6	£0.83	£0.99	ADD
114 - Makita STRAIN RELIEF HS7100/BO5041 HR2430--114-687052-4	£1.66	£1.99	ADD
115 - Makita CORD GUARD 9.3-85 MT814/815 HR2430--115-682516-3	£2.49	£2.99	ADD
116 - Makita POWER SUPPLY CORD 1.0-2-2.5 HR2430--116-665918-8	£9.16	£10.99	ADD
116 - Makita LEAD WIRE HS7100/GA7050/HP1641 HR2430--116-692527-0	£19.99	£23.99	ADD
117 - Makita NOISE SUPPRESSOR MT814/815 HR2430--117-645200-1	£2.49	£2.99	ADD
1001 - Makita GREASE VESSEL 93G HR2430--1001-181573-3	£6.66	£7.99	ADD
1002 - Makita CAP HR2430/HR2432 HR2430--1002-421727-3	£1.66	£1.99	ADD
1003 - Makita PLASTIC CARRYING CASE HR2430--1003-824575-3	£27.49	£32.99	ADD
2001 - Makita DUST COLLECTOR ASS'Y HR2430--2001-122610-4	-	-	Contact Us For Price
2002 - Makita GRIP ASSY HR2430* HR2430--2002-134902-9	£7.49	£8.99	ADD
5003 - Makita NON INSULATED TERMINAL MT814/1 HR2430--5003-654091-9	£1.66	£1.99	ADD
5004 - Makita PLUG UK TYPE 16A-4H/110V No Longer Available HR2430--5004-655030-2	-	-	No Longer Available
5005 - Makita CHOKE COIL HR2430--5005-646088-2	-	-	Contact Us For Price
5005 - Makita CHOKE COIL HR2430--5005-646160-0	-	-	Contact Us For Price
5006 - Makita CHOKE COIL HR2430--5006-646089-0	-	-	Contact Us For Price
5006 - Makita CHOKE COIL HR2430--5006-646161-8	-	-	Contact Us For Price
