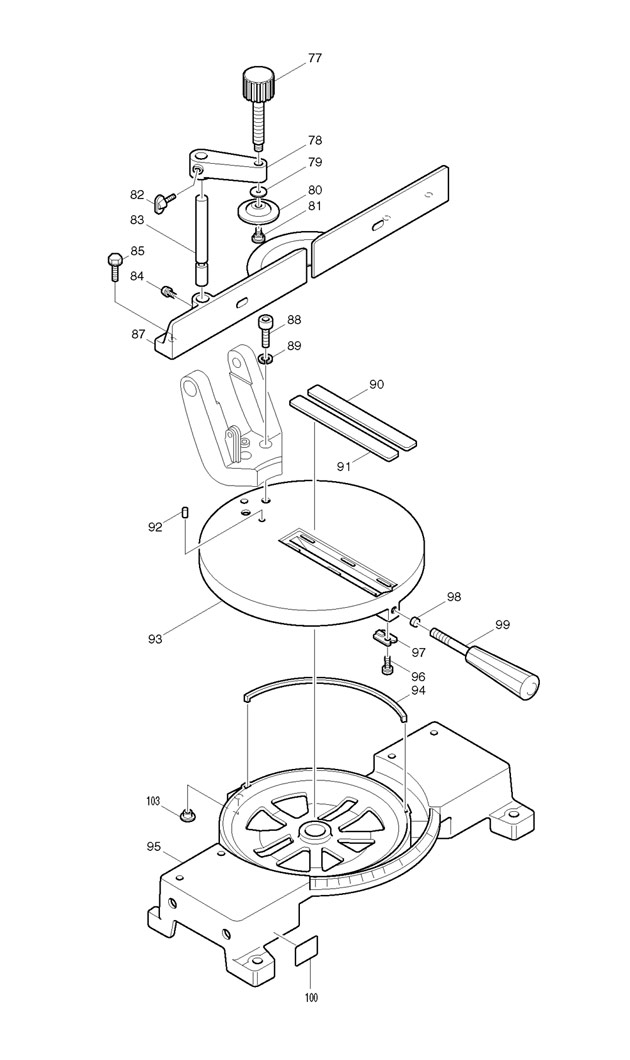

Makita LS1030 Corded 255mm Mitre Saw 110v & 240v Spare Parts

LS1030

	(Ex VAT)	Inc VAT
1 - Makita SHAFT LOCK LS1030/LS1040F LS1030--1-343641-2	£2.49	£2.99	ADD
2 - Makita BALL BEARING 6201LLB LS1030/92 LS1030--2-211106-1	£7.49	£8.99	ADD
2 - Makita BALL BEARING 6201LLB LS1030--2-211144-3	-	-	No Longer Available
3 - Makita FAN 92* LS1030--3-241514-2	£2.49	£2.99	ADD
4 - Makita ARMATURE 110V 2400B/LS1020 LS1030--4-514816-2	£68.33	£81.99	ADD
4 - Makita ARMATURE ASSY 240V LS1030/20 LS1030--4-514924-9	£79.16	£94.99	ADD
5 - Makita INSULATION WASHER 2012NB LS1030--5-681623-9	£1.66	£1.99	ADD
6 - Makita BALL BEARING 6200LB LS1030 LS1030--6-211068-3	£5.83	£6.99	ADD
7 - Makita URETHANE WASHER 25 LS1030 LS1030--7-261081-1	£1.66	£1.99	ADD
8 - Makita FAN GUIDE LS1030 LS1030--8-414532-5	£3.33	£3.99	ADD
9 - Makita FIELD ASSY 110V LS1030 LS1030--9-524881-3	£51.66	£61.99	ADD
9 - Makita FIELD ASSY 240V LS1030 LS1030--9-524884-7	£51.66	£61.99	ADD
10 - Makita HANDLE COVER LS1030 LS1030--10-414572-3	-	-	No Longer Available
11 - Makita POWER SUPPLY CORD 1.5-2-2.5 LS1030--11-663565-9	-	-	Contact Us For Price
11 - Makita POWER SUPPLY CORD 1.5-2-2.5 LS1030--11-663839-8	£9.16	£10.99	ADD
11 - Makita POWER SUPPLY CORD 1.5-2-2.5 LS1030--11-692117-9	£9.99	£11.99	ADD
12 - Makita CORD GUARD UH45570/5570/5580 LS1030--12-682503-2	£2.49	£2.99	ADD
13 - Makita PAN HD SCREW M4X18 LS1030--13-911133-5	£0.83	£0.99	ADD
14 - Makita STRAIN RELIEF 4157KB/6820V LS1030--14-687001-1	£0.83	£0.99	ADD
15 - Makita PROTECTING TUBE 6013B/2012NB/ LS1030--15-683240-1	£0.83	£0.99	ADD
17 - Makita PAN HEAD SCREW M6X60 LS1030--17-911383-2	£2.49	£2.99	ADD
18 - Makita MOTOR HOUSING COMPLETE LS1030 LS1030--18-159140-2	-	-	No Longer Available
19 - Makita Replacement Carbon Brushes Brush Pair CB-153 (CB-22) LS1030--19-181044-0	£4.16	£4.99	ADD
20 - Makita BRUSH HOLDER CAP CB-5/HS6100 LS1030--20-643650-4	£1.66	£1.99	ADD
21 - Makita NAME PLATE LS1030* LS1030--21-856507-2	£2.49	£2.99	ADD
22 - Makita NOISE SUPPRESSOR/CONDENSOR 645 LS1030--22-645209-3	£4.16	£4.99	ADD
22 - Makita NOISE SUPPRESSOR 110V LS1030--22-645253-0	£4.16	£4.99	ADD
23 - Makita SWITCH SP115F-1 LS1030 LS1030--23-651895-0	-	-	No Longer Available
24 - Makita SWITCH LEVER LS1030 LS1030--24-414157-5	£3.33	£3.99	ADD
25 - Makita PAN HEAD SCREW M4x25 LS1030--25-911148-2	£0.83	£0.99	ADD
26 - Makita PAN HD SCREW M5X65 LS1030 LS1030--26-911290-9	£2.49	£2.99	ADD
27 - Makita RUBBER PIN 4 GA7050/9050/PC500 LS1030--27-263002-9	£0.83	£0.99	ADD
29 - Makita COMPRESSION SPRING 9 LS1030 LS1030--29-231297-2	£1.66	£1.99	ADD
29 - Makita HEX HD SETSCREW M8X75 LS1030--29-251667-9	£2.49	£2.99	ADD
30 - Makita HEX HD BOLT M10X105 LS1030--30-265356-0	£15.83	£18.99	ADD
31 - Makita FLAT WASHER 10 DIN125-B* LS1030--31-941251-5	£0.83	£0.99	ADD
32 - Makita ARM LS1030 LS1030--32-316159-6	£53.33	£63.99	ADD
33 - Makita PIPE 16-90 LS1030 LS1030--33-331350-5	£4.99	£5.99	ADD
34 - Makita FLAT WASHER 10 DIN125-B* LS1030--34-941251-5	£0.83	£0.99	ADD
35 - Makita S.L ACORN NUT M10-17 LS1030 LS1030--35-252111-9	£2.49	£2.99	ADD
36 - Makita KNOB 20 LS1030/LS800D/BLS820 LS1030--36-271601-3	£1.66	£1.99	ADD
37 - Makita LINK PLATE LS1030 LS1030--37-343640-4	£6.66	£7.99	ADD
38 - Makita RING 7 LS1030/LS1040F LS1030--38-257162-7	£1.66	£1.99	ADD
39 - Makita THIN BLUE WASHER JS1600 LS1030--39-253823-7	£0.83	£0.99	ADD
40 - Makita PH SHOULDER SCREW M6 LS1030--40-251369-7	£2.49	£2.99	ADD
41 - Makita PH SHOULDER SCREW M6 LS1030--41-251362-1	£2.49	£2.99	ADD
43 - Makita THIN BLUE WASHER JS1600 LS1030--43-253823-7	£0.83	£0.99	ADD
44 - Makita RING 7 LS1030/LS1040F LS1030--44-257162-7	£1.66	£1.99	ADD
45 - Makita RUBBER SLEEVE 6 M241 BHS630/ LS1030--45-262511-5	£1.66	£1.99	ADD
46 - Makita STOPPER PIN LS1030/LS800D/BLS8 LS1030--46-322338-6	£2.49	£2.99	ADD
47 - Makita O RING 5 BTM40/50/620/711 LS1030--47-213021-5	£0.83	£0.99	ADD
48 - Makita FLAT WASHER 6 DIN125-A LS1030--48-941152-7	£0.83	£0.99	ADD
49 - Makita ACORN NUT M6-10 LS1030 LS1030--49-252112-7	£2.49	£2.99	ADD
50 - Makita HEX HD SCREW M8X12 WITH COLLAR LS1030--50-265324-3	£2.49	£2.99	ADD
51 - Makita TORSION SPRING 36 LS1030/40F LS1030--51-231593-8	£1.66	£1.99	ADD
52 - Makita SAFETY COVER LS1030 LS1030--52-414531-7	-	-	No Longer Available
53 - Makita FLAT WASHER 6 M241 LS1030--53-253977-0	£1.66	£1.99	ADD
54 - Makita PAN HD SCREW 5X12 W/SP LS1030--54-911211-1	£0.83	£0.99	ADD
55 - Makita PIVOT SCREW M5 LS800D LS1030--55-265008-3	£1.66	£1.99	ADD
57 - Makita CENTER COVER LS1030 LS1030--57-343637-3	£3.33	£3.99	ADD
58 - Makita CENTER PLATE LS1030/40&LH1040 LS1030--58-343639-9	£4.99	£5.99	ADD
59 - Makita HEX HD SCREW M8X20 L THR WITH LS1030--59-265355-2	£1.66	£1.99	ADD
60 - Makita FLANGE 55 LS1030--60-224274-1	£4.16	£4.99	ADD
60 - Makita FLANGE 53 LS1013/LS1040F/LF100 LS1030--60-224333-1	£3.33	£3.99	ADD
62 - Makita FLANGE 55 LS1030--62-224274-1	£4.16	£4.99	ADD
62 - Makita FLANGE 53 LS1013/LS1040F/LF100 LS1030--62-224333-1	£3.33	£3.99	ADD
63 - Makita PAN HD SCREW M6X45 LS1030 LS1030--63-911366-2	£1.66	£1.99	ADD
64 - Makita BLADE CASE COMPLETE LS1030--64-150173-0	-	-	Contact Us For Price
65 - Makita SPINDLE LS1030 LS1030--65-322309-3	£14.16	£16.99	ADD
66 - Makita BALL BEARING 6203LLB HM1810 LS1030--66-211256-2	£9.16	£10.99	ADD
67 - Makita BEARING BOX LS1030 LS1030--67-414530-9	-	-	No Longer Available
68 - Makita HELICAL GEAR 41 2400B/LS1020 LS1030--68-221712-4	£10.83	£12.99	ADD
69 - Makita EXT DIN 471 CIRCLIP-17 LS1030--69-961057-5	£0.83	£0.99	ADD
70 - Makita GEAR HOUSING COMPLETE LS1030 LS1030--70-159252-1	£31.66	£37.99	ADD
71 - Makita WOODRUFF KEY 4 LS1030--71-254038-9	£1.66	£1.99	ADD
72 - Makita O RING 35 HM1303B/LS800DWB/HR1 LS1030--72-213460-9	£1.66	£1.99	ADD
73 - Makita ELBOW LS1030--73-414568-4	£3.33	£3.99	ADD
74 - Makita PIN 8 LS1030 LS1030--74-256198-3	£2.49	£2.99	ADD
75 - Makita SPRING HOLDER LS1030 LS1030--75-343638-1	£2.49	£2.99	ADD
76 - Makita COMPRESSION SPRING 26 LS1030 LS1030--76-231480-1	£5.83	£6.99	ADD
77 - Makita KNOB 40 LS1030/LS1040F LS1030--77-271286-5	£7.49	£8.99	ADD
78 - Makita VISE ASS'Y LS1030--78-122468-1	£27.49	£32.99	ADD
78 - Makita Vice Clamp LS1040 LH1040 LS1030--78-122536-0	£21.66	£25.99	ADD
79 - Makita BLUE WASHER 6 Fits 3901 6095D BPJ140 BPJ180 LS1030--79-253804-1	£0.83	£0.99	ADD
80 - Makita VISE PLATE LS1030/LS800D/BLS82 LS1030--80-343651-9	£2.49	£2.99	ADD
81 - Makita PAN HD SHOULDER SCREW M5 LS1030--81-251370-2	£1.66	£1.99	ADD
82 - Makita WING SCREW M6X10 LS800D LS1030--82-251887-5	£2.49	£2.99	ADD
83 - Makita VISE ROD LS1030/LS800D/BLS820 LS1030--83-322313-2	£6.66	£7.99	ADD
84 - Makita PAN HD SCREW M6X10 LS1030--84-911306-0	£0.83	£0.99	ADD
85 - Makita HEX HD SCREW M8X30 LS1030 LS1030--85-921451-3	£2.49	£2.99	ADD
87 - Makita GUIDE FENCE LS1030 LS1030--87-316158-8	£59.16	£70.99	ADD
88 - Makita HEX SOCKET HD BOLT M10X30 LS LS1030--88-922552-0	£1.66	£1.99	ADD
89 - Makita SPRING WASHER 10 LS1030--89-942251-8	£0.83	£0.99	ADD
90 - Makita KERF BOARD LS1030 LS1030--90-414536-7	£1.66	£1.99	ADD
91 - Makita KERF BOARD LS1030 LS1030--91-414536-7	£1.66	£1.99	ADD
92 - Makita PIN 5 LS800DWB/6906/BLS820 LS1030--92-256040-8	£0.83	£0.99	ADD
93 - Makita TURN BASE LS1030 LS1030--93-316160-1	£97.49	£116.99	ADD
94 - Makita SLIDE PLATE LS1030--94-343642-0	-	-	Contact Us For Price
94 - Makita [NO LONGER AVAILABLE] SLIDE PLATE LS1030 LS1030--94-344035-4	-	-	No Longer Available
95 - Makita BASE LS1030 LS1030--95-316161-9	£136.66	£163.99	ADD
96 - Makita PAN HDSCREW M5X8 W/CP LS1030--96-911203-0	£0.83	£0.99	ADD
97 - Makita LEAF SPRING LS1030 LS1030--97-232110-7	£1.66	£1.99	ADD
98 - Makita NYLON PIN 8 LS1030 LS1030--98-263019-2	£1.66	£1.99	ADD
99 - Makita GRIP 32 LS1030/LS800D/BLS820 LS1030--99-273495-2	£4.99	£5.99	ADD
100 - Makita CAUTION LABEL LS1030 LS1030--100-817837-6	£2.49	£2.99	ADD
102 - Makita MAKITA LABEL LS1030/5603R/2414 LS1030--102-819064-1	£1.66	£1.99	ADD
103 - Makita CAP 20 LS1030/LC1230/LS800DWB LS1030--103-286212-1	£1.66	£1.99	ADD
900 - Makita LOCK PLATE LS1030 LS1030--900-343965-6	£4.99	£5.99	ADD
901 - Makita COMPRESSION SPRING 7 LS1030--901-231401-3	£0.83	£0.99	ADD
902 - Makita ROD 8 LS1030 LS1030--902-322561-3	£23.33	£27.99	ADD
903 - Makita LEVER LS1030 LS1030--903-343966-4	£6.66	£7.99	ADD
904 - Makita LOCK PIN 8 LS1030 LS1030--904-322562-1	£9.16	£10.99	ADD
905 - Makita PAN HEAD SCREW M4X12 LS1030--905-911118-1	£0.83	£0.99	ADD
906 - Makita EXT E-RING JIS JE-6 LS1030--906-961012-7	£0.83	£0.99	ADD
1001 - Makita RING 16-25 LS1040F/2400/B LS1030--1001-257022-3	£3.33	£3.99	ADD
1002 - Makita SET PLATE LS1030--1002-343652-7	-	-	Contact Us For Price
1002 - Makita SET PLATE LS1030--1002-345709-0	-	-	Contact Us For Price
1003 - Makita WING SCREW M6X10 LS800D LS1030--1003-251887-5	£2.49	£2.99	ADD
1004 - Makita WING SCREW M5X20 8406C LS1030--1004-251896-4	£2.49	£2.99	ADD
1005 - Makita HOLDER LS1030--1005-322312-4	£5.83	£6.99	ADD
1006 - Makita SOCKET WRENCH 13 LS1030--1006-782212-4	£5.83	£6.99	ADD
1007 - Makita Dust Bag For LS0810 LS1030 Mitre Saw Chop Saw LS1030--1007-122351-2	£6.66	£7.99	ADD
1008 - Makita FASTENER LS1030--1008-410602-8	£1.66	£1.99	ADD
5001 - Makita COMPRESSION SPRING 9 LS1030--5001-231481-9	£0.83	£0.99	ADD
5002 - Makita LOCK OFF SWITCH BUTTON LS1030--5002-411447-7	£1.66	£1.99	ADD
5003 - Makita SWITCH LOCK LS1030 LS1030--5003-414535-9	£2.49	£2.99	ADD
