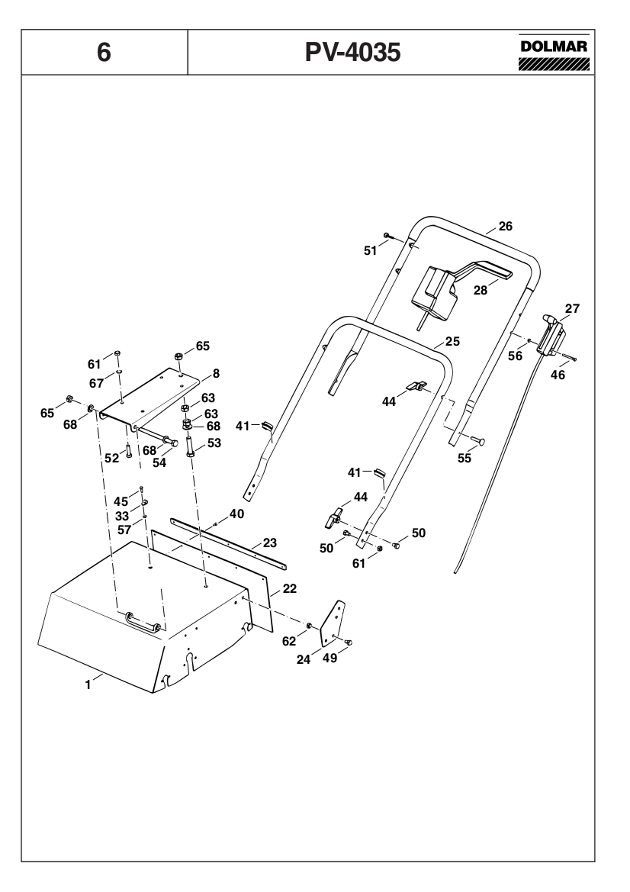

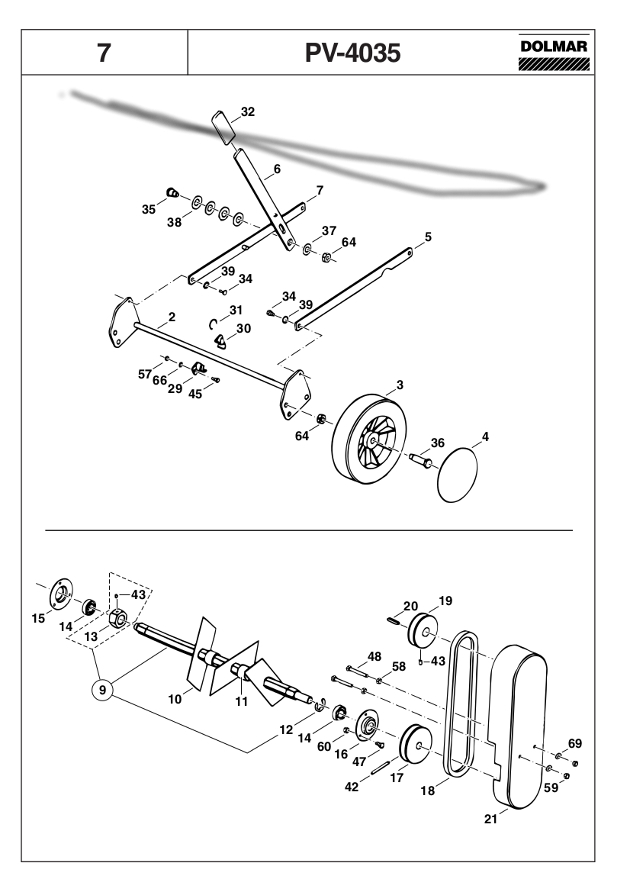

Makita PV4035 Lawnmower Spare Parts

PV4035

	(Ex VAT)	Inc VAT
1 - Makita MAIN HOUSING COMP PV4035--1-666073310	£159.99	£191.99	ADD
2 - Makita FRONT AXLE COMP PV4035--2-666073630	£31.66	£37.99	ADD
3 - Makita WHEEL 180MM PV4035--3-666070230	£21.66	£25.99	ADD
4 - Makita WHEEL COVER PV4035--4-666072320	£4.16	£4.99	ADD
5 - Makita HEIGHT ADJUSTER PV4035--5-666073470	£7.49	£8.99	ADD
6 - Makita HEIGHT ADJUSTER LEVER PV4035--6-666073450	£12.49	£14.99	ADD
7 - Makita HEIGHT ADJUSTER BAR R PV4035--7-666073460	£9.99	£11.99	ADD
8 - Makita ENGINE SUPPORT PLATE PV4035--8-666073430	£27.49	£32.99	ADD
9 - Makita BLADE AXLE PV4035--9-666073480	£40.83	£48.99	ADD
10 - Makita Blade PV4035--10-666017540	£4.99	£5.99	ADD
11 - Makita NO LONGER AVAILABLE Spacer PV4035--11-666017850	-	-	No Longer Available
12 - Makita NO LONGER AVAILABLE CIRCLIP PV4035--12-666068600	-	-	No Longer Available
13 - Makita HEX NUT M22X1.5 PV4035--13-666073660	£8.33	£9.99	ADD
14 - Makita BALL BEARING PV4035--14-666073370	£22.49	£26.99	ADD
15 - Makita (NO LONGER AVAILABLE) AXLE SUPPORT PV4035--15-666073390	-	-	No Longer Available
16 - Makita AXLE SUPPORT PV4035--16-666073380	-	-	No Longer Available
17 - Makita Pulley PV4035--17-666073400	£29.99	£35.99	ADD
18 - Makita DRIVE BELT 13X650 PV4035--18-666063000	£16.66	£19.99	ADD
19 - Makita Pulley PV4035--19-666063160	£33.33	£39.99	ADD
20 - Makita DRIVE PIN 4.75X4.75X38 PV4035--20-666017330	£3.33	£3.99	ADD
21 - Makita DRIVE BELT COVER PV4035--21-666073590	£45.83	£54.99	ADD
22 - Makita RUBBER FLAP PV4035--22-666073520	£15.83	£18.99	ADD
23 - Makita RUBBER FLAP COMP PV4035--23-666073510	£7.49	£8.99	ADD
24 - Makita HANDLE BRACKET PV4035--24-666073440	£9.16	£10.99	ADD
25 - Makita HANDLE LOWER PV4035--25-666073340	£42.49	£50.99	ADD
26 - Makita HANDLE UPPER PV4035--26-666073350	£47.49	£56.99	ADD
27 - Makita BOWDEN CABLE THROTTLE PV4035--27-666072230	£18.33	£21.99	ADD
28 - Makita CONTROL ASSY COMP PV4035--28-666073670	£44.16	£52.99	ADD
29 - Makita AXLE SUPPORT BRACKET PV4035--29-666062700	£1.66	£1.99	ADD
30 - Makita AXLE SUPPORT BRACKET PV4035--30-666062710	£1.66	£1.99	ADD
31 - Makita E CLIP PV4035--31-666062720	£2.49	£2.99	ADD
32 - Makita GRIP PV4035--32-666073620	£2.49	£2.99	ADD
33 - Makita CABLE CLIP PV4035--33-666070140	£1.66	£1.99	ADD
34 - Makita BOLT M6 PV4035--34-666062790	£2.49	£2.99	ADD
35 - Makita BOLT M10 PV4035--35-666062800	£6.66	£7.99	ADD
36 - Makita WHEEL BOLT PV4035--36-666013590	£5.83	£6.99	ADD
37 - Makita WASHER 10 x 20 x 1 PV4035--37-666073830	£1.66	£1.99	ADD
38 - Makita SPRING DISHED WASHER 28 x 14,2 x 0,8 PV4035--38-666066900	£1.66	£1.99	ADD
39 - Makita WASHER PV4035--39-666062570	£2.49	£2.99	ADD
40 - Makita RIVET PV4035--40-666012240	£1.66	£1.99	ADD
41 - Makita CABLE CLIP/CLAMP PV4035--41-666062410	£1.66	£1.99	ADD
42 - Makita NO LONGER AVAILABLE PIN 5X50 PV4035--42-666062460	-	-	No Longer Available
44 - Makita WING NUT M8 PV4035--44-666062730	£3.33	£3.99	ADD
45 - Makita SCREW M5X12 PV4035--45-666062510	£2.49	£2.99	ADD
45 - Makita 666062510 PV4035--45-666017270	£1.66	£1.99	ADD
46 - Makita HEX SCREW M5X40 PV4035--46-666012270	£2.49	£2.99	ADD
47 - Makita HEX SCREW M6X12 PV4035--47-666018500	£2.49	£2.99	ADD
48 - Makita HEX SCREW M6X55 PV4035--48-666017350	£2.49	£2.99	ADD
49 - Makita HEX BOLT M8X1 PV4035--49-666017650	£1.66	£1.99	ADD
50 - Makita HEX SCREW M8X16 PV4035--50-666013570	£2.49	£2.99	ADD
51 - Makita SELF TAP SCREW M40X5 PV4035--51-666060800	£2.49	£2.99	ADD
52 - Makita HEX SCREW M8X35 PV4035--52-666016770	£2.49	£2.99	ADD
53 - Makita HEX SCREW M8X35 PV4035--53-666073640	£3.33	£3.99	ADD
54 - Makita HEX SCREW M10X140 PV4035--54-666073650	£3.33	£3.99	ADD
55 - Makita COACH BOLT M8X40 PV4035--55-666064060	£1.66	£1.99	ADD
56 - Makita Nut M5 PV4035--56-666013380	£2.49	£2.99	ADD
57 - Makita Nut M8 PV4035--57-666066160	£2.49	£2.99	ADD
58 - Makita NUT M6 PV4035--58-666013370	£2.49	£2.99	ADD
59 - Makita NUT M6 PV4035--59-666017360	£2.49	£2.99	ADD
60 - Makita NUT M6 PV4035--60-666062780	£2.49	£2.99	ADD
61 - Makita Nut M8 PV4035--61-666066160	£2.49	£2.99	ADD
62 - Makita Nut M8 PV4035--62-666062770	£2.49	£2.99	ADD
63 - Makita Nut M10 PV4035--63-666013340	£2.49	£2.99	ADD
64 - Makita NUT M10 PV4035--64-666015490	£2.49	£2.99	ADD
65 - Makita Nut M10 PV4035--65-666016800	£2.49	£2.99	ADD
66 - Makita WASHER A5 PV4035--66-666010250	£2.49	£2.99	ADD
67 - Makita Washer A8 PV4035--67-666013100	£2.49	£2.99	ADD
68 - Makita Washer A10 PV4035--68-666013250	£2.49	£2.99	ADD
69 - Makita WASHER A6 PV4035--69-666010430	£2.49	£2.99	ADD
999 - Makita SPARE PARTS LIST PV4035--999-999999-9	£1,249.99	£1,499.99	ADD
