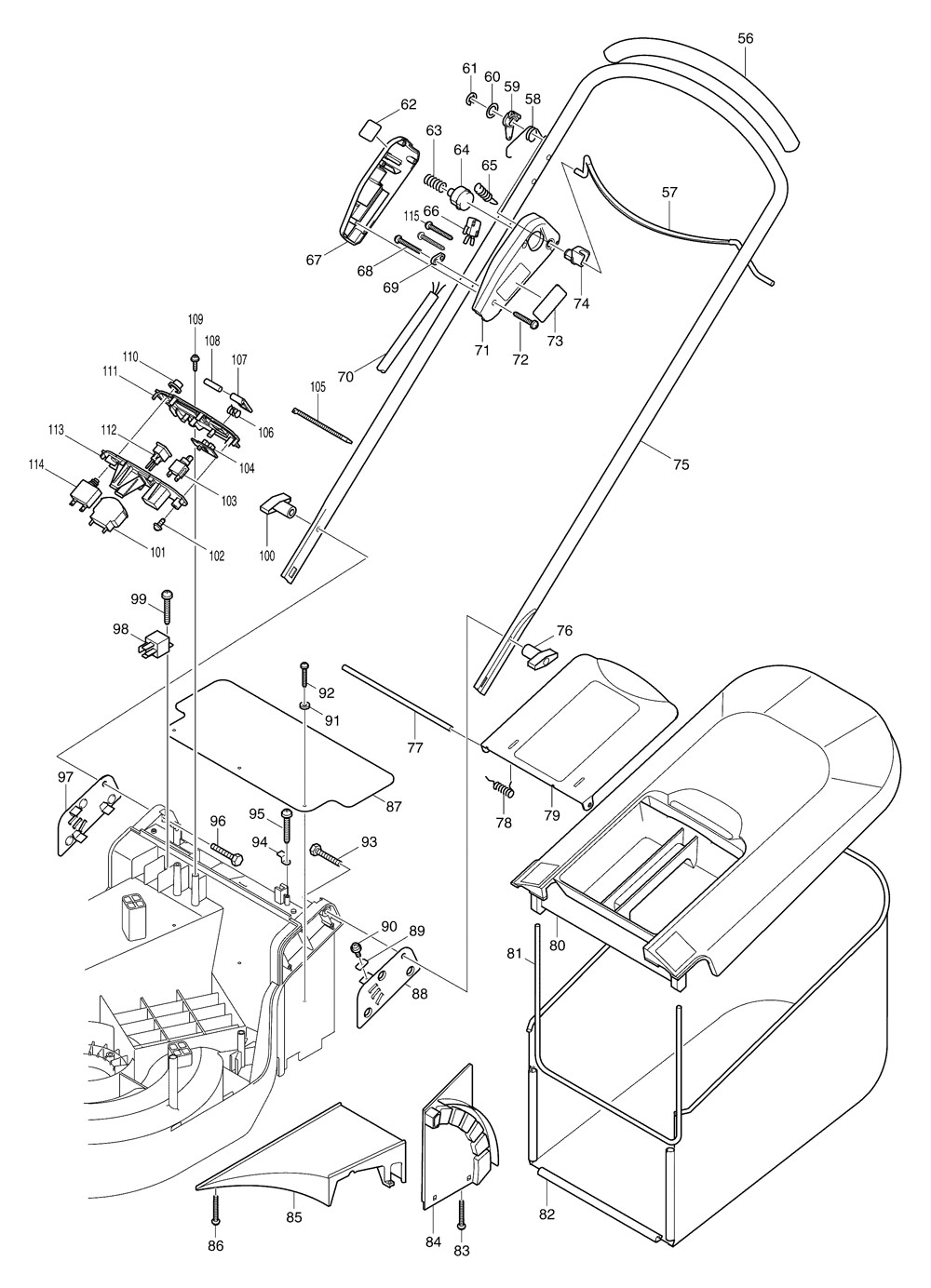

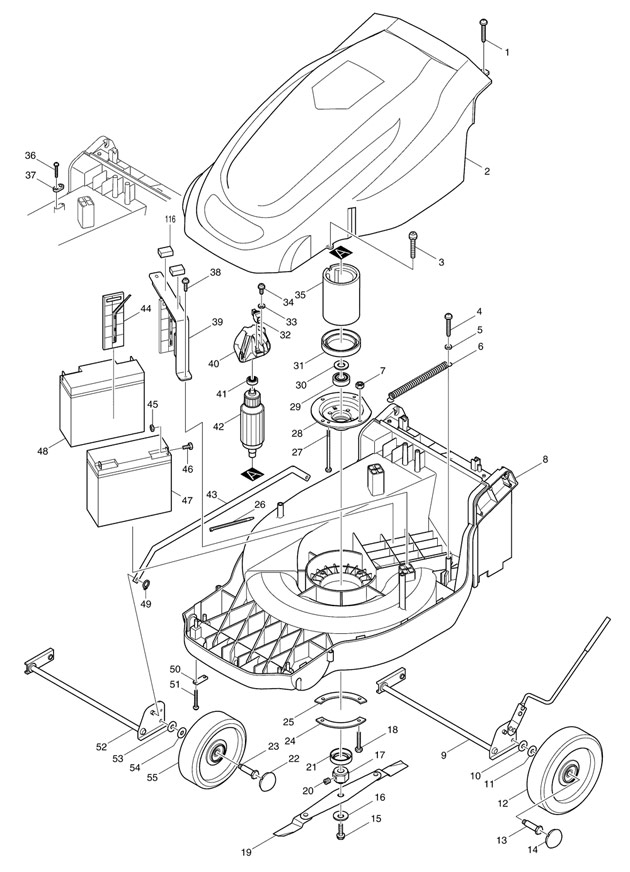

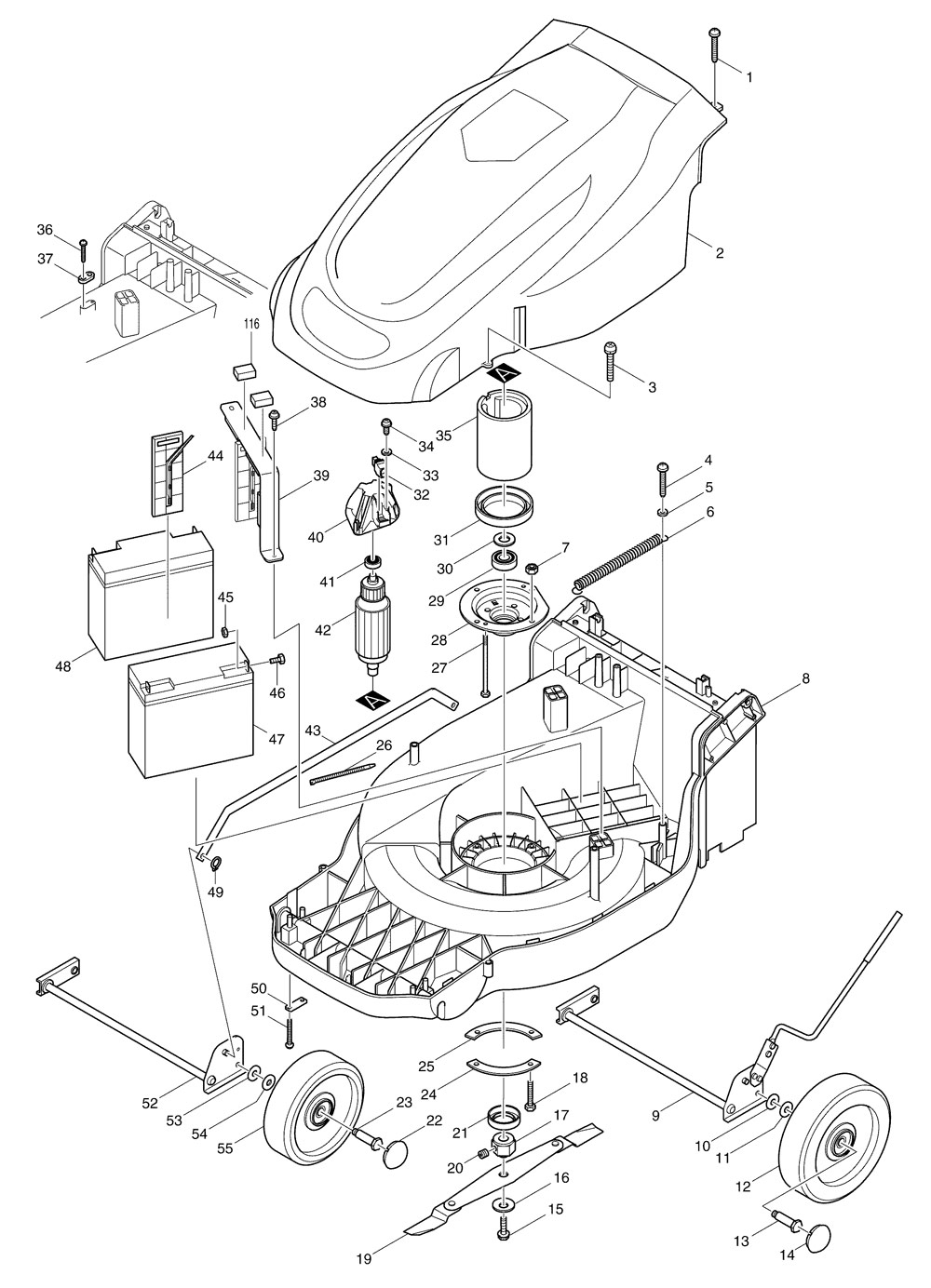

Makita UM401D Lawnmower 16" Spare Parts

UM401D

	(Ex VAT)	Inc VAT
1 - Makita PT SCREW 4X18 KP0810C* UM401D--1-265995-6	£0.83	£0.99	ADD
2 - Makita COWLING COMPLETE UM401DW UM401D--2-150725-7	£74.99	£89.99	ADD
3 - Makita PT SCREW 4X25 UM401D--3-265999-8	£0.83	£0.99	ADD
4 - Makita PT SCREW 4X18 KP0810C* UM401D--4-265995-6	£0.83	£0.99	ADD
5 - Makita BLUE WASHER 4 BO5000 UM401D--5-267071-2	£1.66	£1.99	ADD
6 - Makita TENSION SPRING UM401DW UM401D--6-231811-4	£6.66	£7.99	ADD
7 - Makita NYLON INSERT NUT M6-10 UM401D--7-252014-7	£1.66	£1.99	ADD
8 - Makita DECK UM401DW* UM401D--8-416208-0	£70.83	£84.99	ADD
9 - Makita REAR SHAFT UM401DW UM401D--9-163384-8	£28.33	£33.99	ADD
10 - Makita BLUE WASHER 10 4602D UM401D--10-267052-6	£2.49	£2.99	ADD
11 - Makita BLUE WASHER 10 4602D UM401D--11-267052-6	£2.49	£2.99	ADD
12 - Makita 8" WHEEL UM401D--12-162192-4	£7.49	£8.99	ADD
13 - Makita "SHOULDER BOLT 3/18""-16UNC" UM401D--13-265450-8	£3.33	£3.99	ADD
14 - Makita WHEEL CAP UM401DW UM401D--14-416258-5	£1.66	£1.99	ADD
15 - Makita HEX HD SETSCREW M8X30 UM401D--15-251690-4	£1.66	£1.99	ADD
16 - Makita CONICAL DISC SPRING UM401DW UM401D--16-232176-7	£4.99	£5.99	ADD
17 - Makita BLADE HOLDER UM401DW UM401D--17-331517-5	£9.16	£10.99	ADD
18 - Makita HEX HD SCREW M6X40 UM401D--18-921362-2	£1.66	£1.99	ADD
19 - Makita SWING ARM BLADE 406 UM401D--19-729015-5	£13.33	£15.99	ADD
20 - Makita SOCKET HD SET SCREW M8X8 5PK* UM401D--20-266162-6	£6.66	£7.99	ADD
21 - Makita DUST COVER UM401DW UM401D--21-344550-8	£4.99	£5.99	ADD
22 - Makita WHEEL CAP UM401DW UM401D--22-416258-5	£1.66	£1.99	ADD
23 - Makita "SHOULDER BOLT 3/18""-16UNC" UM401D--23-265450-8	£3.33	£3.99	ADD
24 - Makita FIX PLATE UM401D--24-344561-3	£2.49	£2.99	ADD
25 - Makita FIX PLATE UM401D--25-344561-3	£2.49	£2.99	ADD
26 - Makita BAND UM401DW* UM401D--26-687092-2	£2.49	£2.99	ADD
27 - Makita HEX HD BOLT M5X115 UM401D--27-265448-5	£1.66	£1.99	ADD
28 - Makita BEARING BOX UM401DW UM401D--28-344460-9	£14.16	£16.99	ADD
29 - Makita BALL BEARING 6203LLB HM1810 UM401D--29-211256-2	£9.16	£10.99	ADD
30 - Makita THIN WASHER 17 5PK* UM401D--30-267038-0	£3.33	£3.99	ADD
31 - Makita PLATE UM401DW UM401D--31-416259-3	£2.49	£2.99	ADD
32 - Makita CARBON BRUSH CB-423 UM401DW UM401D--32-191965-8	£10.83	£12.99	ADD
33 - Makita LARGE BLUE WASHER 4 UM401D--33-253874-0	£0.83	£0.99	ADD
34 - Makita PT SCREW 4X12 9046 UM401D--34-266020-6	£0.83	£1.00	ADD
35 - Makita YOKE UNIT UM401DW UM401D--35-632781-4	£47.49	£56.99	ADD
36 - Makita PT SCREW 4X18 KP0810C* UM401D--36-265995-6	£0.83	£0.99	ADD
37 - Makita STRAIN RELIEF 110V HS6100/7100 UM401D--37-687053-2	£1.66	£1.99	ADD
38 - Makita PT SCREW 5X25 UM401D--38-266041-8	£1.66	£1.99	ADD
39 - Makita BATTERY HOLDER UM401DW UM401D--39-150680-3	£9.16	£10.99	ADD
40 - Makita END BELL UM401DW UM401D--40-416202-2	£5.83	£6.99	ADD
41 - Makita BALL BEARING 6000LLB BTW200 UM401D--41-211061-7	£6.66	£7.99	ADD
42 - Makita MOTOR ASSY UM401DW* UM401D--42-125069-4	£142.49	£170.99	ADD
43 - Makita CONNECTING ROD UM401DW UM401D--43-344462-5	£5.83	£6.99	ADD
44 - Makita THERMAL CUT OFF CPL UM401DW UM401D--44-632784-8	£6.66	£7.99	ADD
45 - Makita NICKEL HEX NUT M5 UM401D 5PK* UM401D--45-652111-3	£0.83	£0.99	ADD
46 - Makita NICK HEX HD SCREW M5X12 5PK* UM401D--46-652035-3	£0.83	£0.99	ADD
47 - Makita BATTERY UM401D--47-678118-1	-	-	No Longer Available
48 - Makita BATTERY UM401D--48-678118-1	-	-	No Longer Available
49 - Makita EXT DIN CIRCLIP-8 UM401D--49-961004-6	£0.83	£0.99	ADD
50 - Makita PLATE JR3020/JR140D/JR3030T UM401D--50-341462-6	£1.66	£1.99	ADD
51 - Makita PT SCREW 4X18 KP0810C* UM401D--51-265995-6	£0.83	£0.99	ADD
52 - Makita FRONT SHAFT UM401DW UM401D--52-163385-6	£19.16	£22.99	ADD
53 - Makita BLUE WASHER 10 4602D UM401D--53-267052-6	£2.49	£2.99	ADD
54 - Makita BLUE WASHER 10 4602D UM401D--54-267052-6	£2.49	£2.99	ADD
55 - Makita 7" WHEEL UM401D--55-162191-6	£5.83	£6.99	ADD
56 - Makita HANDLE CUSHION UM401DW UM401D--56-421580-7	£12.49	£14.99	ADD
57 - Makita SWITCH LEVER UM401DW UM401D--57-331499-1	£10.83	£12.99	ADD
58 - Makita TORSION SPRING 20 UM401DW* UM401D--58-231628-5	£1.66	£1.99	ADD
58 - Makita TORSION SPRING 20 UM401D--58-231639-0	£2.49	£2.99	ADD
59 - Makita LEVER UM401DW* UM401D--59-416198-7	£1.66	£1.99	ADD
59 - Makita LEVER UM401D--59-416627-0	£2.49	£2.99	ADD
60 - Makita SHIM WASHER 15 BO5021 UM401D--60-253315-6	£1.66	£1.99	ADD
61 - Makita EXT E-RING JIS JE-12* UM401D--61-961062-2	£0.83	£0.99	ADD
62 - Makita INDICATION LABEL UM401DW UM401D--62-816768-6	£3.33	£3.99	ADD
63 - Makita COMPRESSION SPRING 16 UM401DW UM401D--63-233182-5	£1.66	£1.99	ADD
64 - Makita SWITCH BUTTON UM401DW UM401D--64-416216-1	£2.49	£2.99	ADD
65 - Makita TENSION SPRING UM401DW UM401D--65-231812-2	£4.16	£4.99	ADD
66 - Makita SWITCH UM401DW UM401D--66-651948-5	£20.83	£24.99	ADD
67 - Makita SWITCH BOX COVER CPL UM401DW* UM401D--67-416201-4	£3.33	£3.99	ADD
67 - Makita SWITCH BOX COVER UM401D--67-416609-2	£4.99	£5.99	ADD
68 - Makita PT SCREW 4X18 KP0810C* UM401D--68-265995-6	£0.83	£0.99	ADD
69 - Makita STRAIN RELIEF 110V HS6100/7100 UM401D--69-687053-2	£1.66	£1.99	ADD
70 - Makita CORD UNIT UM401DW UM401D--70-664440-2	£17.49	£20.99	ADD
71 - Makita SWITCH BOX UM401DW* UM401D--71-416200-6	£3.33	£3.99	ADD
71 - Makita SWITCH BOX UM401D--71-416608-4	£4.99	£5.99	ADD
72 - Makita PT SCREW 4X18 KP0810C* UM401D--72-265995-6	£0.83	£0.99	ADD
73 - Makita NAME PLATE UM401DW UM401D--73-858717-7	£3.33	£3.99	ADD
74 - Makita SWITCH LEVER ARM UM401DW UM401D--74-416199-5	£2.49	£2.99	ADD
75 - Makita HANDLE UM401DW UM401D--75-165210-7	£33.33	£39.99	ADD
76 - Makita WING NUT M8 UM401DW/LF1000 UM401D--76-252641-0	£1.66	£1.99	ADD
77 - Makita REAR GUARD SHAFT UM401DW UM401D--77-322925-1	£1.66	£1.99	ADD
78 - Makita TORSION SPRING 8 UM401DW UM401D--78-231627-7	£2.49	£2.99	ADD
79 - Makita REAR GUARD CPL UM401DW UM401D--79-150724-9	£33.33	£39.99	ADD
80 - Makita REAR BAG COVER UM401DW UM401D--80-150723-1	£62.49	£74.99	ADD
81 - Makita REAR BAG ROD UM401DW UM401D--81-322926-9	£2.49	£2.99	ADD
82 - Makita REAR BAG UM401DW UM401D--82-166045-9	£25.83	£30.99	ADD
83 - Makita PT SCREW 4X18 KP0810C* UM401D--83-265995-6	£0.83	£0.99	ADD
84 - Makita HEIGHT ADJUSTER CPL UM401DW UM401D--84-150696-8	£10.83	£12.99	ADD
85 - Makita UNDER COVER UM401DW UM401D--85-416205-6	£4.16	£4.99	ADD
86 - Makita PT SCREW 4X18 KP0810C* UM401D--86-265995-6	£0.83	£0.99	ADD
87 - Makita UNDER GUARD UM401DW UM401D--87-423299-4	£16.66	£19.99	ADD
88 - Makita HANDLE HOLDER L UM401DW UM401D--88-165209-2	£9.16	£10.99	ADD
89 - Makita HOLDER PLATE UM401D--89-344557-4	£1.66	£1.99	ADD
90 - Makita PAN HD SCREW M4X12 UM401D--90-911116-5	£0.83	£0.99	ADD
91 - Makita BLUE WASHER 4 BO5000 UM401D--91-267071-2	£1.66	£1.99	ADD
92 - Makita PT SCREW 4X18 KP0810C* UM401D--92-265995-6	£0.83	£0.99	ADD
93 - Makita HEX BOLT M8X50 UM401DW UM401D--93-921472-5	£1.66	£1.99	ADD
94 - Makita SHAFT HOLDER UM401DW UM401D--94-344454-4	£1.66	£1.99	ADD
95 - Makita PT SCREW 4X18 KP0810C* UM401D--95-265995-6	£0.83	£0.99	ADD
96 - Makita HEX BOLT M8X50 UM401DW UM401D--96-921472-5	£1.66	£1.99	ADD
97 - Makita HANDLE HOLDER R UM401DW* UM401D--97-165208-4	£9.16	£10.99	ADD
98 - Makita RELAY UM401DW UM401D--98-652731-3	£20.83	£24.99	ADD
99 - Makita PT SCREW 4X18 KP0810C* UM401D--99-265995-6	£0.83	£0.99	ADD
100 - Makita WING NUT M8 UM401DW/LF1000 UM401D--100-252641-0	£1.66	£1.99	ADD
101 - Makita INIDICATOR UM401DW UM401D--101-679503-1	£35.83	£42.99	ADD
102 - Makita PT SCREW 4X12 9046 UM401D--102-266020-6	£0.83	£1.00	ADD
103 - Makita SWITCH UM401DW UM401D--103-651420-7	£7.49	£8.99	ADD
104 - Makita SWITCH PLATE UM401DW UM401D--104-416196-1	£1.66	£1.99	ADD
105 - Makita BAND UM401DW* UM401D--105-687092-2	£2.49	£2.99	ADD
106 - Makita TORSION SPRING 4 UM401DW UM401D--106-231602-3	£2.49	£2.99	ADD
107 - Makita INLET COVER UM401DW UM401D--107-416217-9	£1.66	£1.99	ADD
108 - Makita TENSION PIN 3-28 DIN1481* UM401D--108-951075-1	£0.83	£0.99	ADD
109 - Makita PT SCREW 5X25 UM401D--109-266041-8	£1.66	£1.99	ADD
110 - Makita CAP UM401DW UM401D--110-416279-7	£3.33	£3.99	ADD
111 - Makita CONTROL PANEL SET UM401DW UM401D--111-182905-7	£9.99	£11.99	ADD
112 - Makita INLET UM401DW UM401D--112-655412-8	£3.33	£3.99	ADD
113 - Makita CONTROL PANEL SET UM401DW UM401D--113-182905-7	£9.99	£11.99	ADD
114 - Makita CURRENT RELAY UM401DW UM401D--114-652730-5	£23.33	£27.99	ADD
115 - Makita TAPPING SCREW 6X30 UM401D--115-266172-3	-	-	Contact Us For Price
116 - Makita SPONGE SHEET B UM401D--116-421585-7	-	-	Contact Us For Price
1001 - Makita KEY UM401DW UM401D--1001-416197-9	£1.66	£1.99	ADD
1002 - Makita WRENCH 32 UM401D--1002-781028-4	£3.33	£3.99	ADD
1003 - Makita BOX WRENCH 13 UM401D--1003-782226-3	-	-	Contact Us For Price
1003 - Makita BOX WRENCH 13 UM401DW UM401D--1003-782227-1	£10.83	£12.99	ADD
1004 - Makita MULCHING PLATE UM401DW UM401D--1004-416211-1	£4.99	£5.99	ADD
