Makita UV380 Lawn Raker 2011 Onwards Spare Parts

UV380

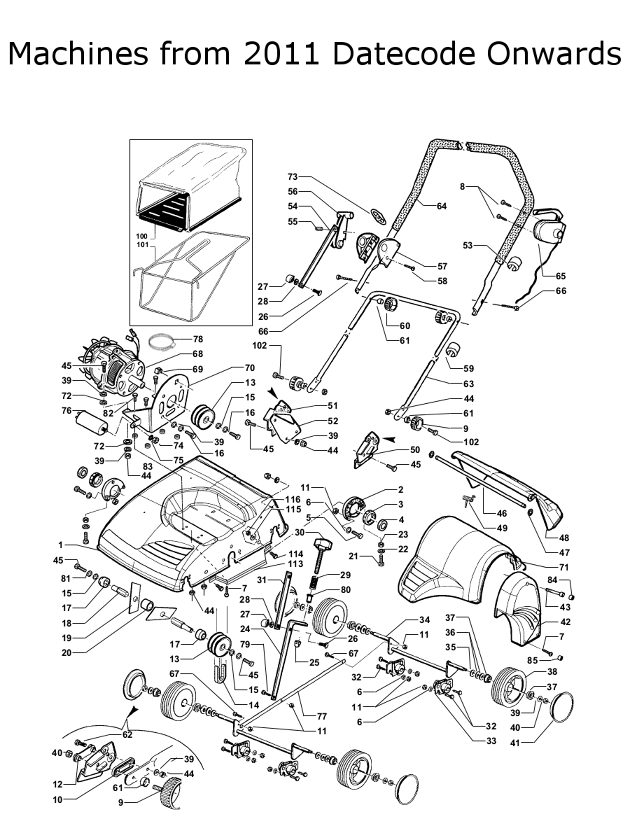

The parts on this diagram are for the UV380 Model onwards from 2011. If you require parts for the UV380 up to 2010 please go to this diagram here

	(Ex VAT)	Inc VAT
1 - Makita DECK, BLUE UV380--1-683043090	£101.66	£121.99	ADD
2 - Makita BUSHING UV380--2-684018490	£4.99	£5.99	ADD
3 - Makita BEARING HOLDER UV380--3-684018480	-	-	No Longer Available
4 - Makita BEARING UV380--4-682018470	-	-	No Longer Available
5 - Makita SCREW UV380--5-680147490	£1.66	£1.99	ADD
6 - Makita WASHER UV380--6-680144370	£2.49	£2.99	ADD
7 - Makita SCREW UV380--7-680145990	£2.49	£2.99	ADD
8 - Makita SCREW UV380--8-680140080	£2.49	£2.99	ADD
9 - Makita KNOB UV380--9-682022180	£2.49	£2.99	ADD
10 - Makita CLAMP UV380--10-680456760	£4.99	£5.99	ADD
11 - Makita SAFETY HEX NUT M6 DPC6430/7331 UV380--11-920406000	£0.83	£0.99	ADD
12 - Makita CLAMP UV380--12-680456750	£4.99	£5.99	ADD
13 - Makita PULLEY UV380--13-682025880	£59.16	£70.99	ADD
14 - Makita BELT UV380--14-680243570	£24.16	£28.99	ADD
15 - Makita WASHER UV380--15-680144480	£2.49	£2.99	ADD
16 - Makita SCREW UV380--16-680109540	£2.49	£2.99	ADD
17 - Makita SPACER [NO LONGER AVAILABLE] UV380--17-684018460	-	-	No Longer Available
18 - Makita BLADE HOLDER SHAFT [No Longer Available] UV380--18-682018440	-	-	No Longer Available
19 - Makita BLADE UV380--19-682018430	-	-	No Longer Available
20 - Makita SPACER BUSH UV380--20-684018450	£1.66	£1.99	ADD
21 - Makita SCREW UV380--21-680100000	£2.49	£2.99	ADD
22 - Makita WASHER UV380--22-680144750	£2.49	£2.99	ADD
23 - Makita NUT UV380--23-680142000	£2.49	£2.99	ADD
24 - Makita BAR UV380--24-683018350	£10.83	£12.99	ADD
25 - Makita CAP NUT UV380--25-682024530	£2.49	£2.99	ADD
26 - Makita SCREW UV380--26-681022210	£2.49	£2.99	ADD
27 - Makita CLAMPING NUT UV380--27-682022260	£4.99	£5.99	ADD
28 - Makita WASHER UV380--28-680142360	£2.49	£2.99	ADD
29 - Makita SPRING UV380--29-682019080	£3.33	£3.99	ADD
30 - Makita ADJUSTMENT WHEEL UV380--30-682024080	£4.99	£5.99	ADD
31 - Makita BAR UV380--31-683022290	£8.33	£9.99	ADD
32 - Makita SCREW UV380--32-680142760	£2.49	£2.99	ADD
33 - Makita AXLE BEARING UV380--33-684018330	£2.49	£2.99	ADD
34 - Makita AXLE UV380--34-683018310	£28.33	£33.99	ADD
35 - Makita SPRING WASHER UV380--35-680145250	£2.49	£2.99	ADD
36 - Makita CIRCLIP UV380--36-680245240	£2.49	£2.99	ADD
37 - Makita BEARING UV380--37-680203680	£4.16	£4.99	ADD
38 - Makita WHEEL UV380--38-683008790	-	-
39 - Makita WASHER UV380--39-680144460	£2.49	£2.99	ADD
40 - Makita NUT UV380--40-680142030	£2.49	£2.99	ADD
41 - Makita WHEEL COVER BLACK UV380--41-680023500	£9.16	£10.99	ADD
42 - Makita BELT COVER, BLACK UV380--42-680035500	£26.66	£31.99	ADD
43 - Makita SCREW UV380--43-681017300	£1.66	£1.99	ADD
44 - Makita NUT UV380--44-680144450	£2.49	£2.99	ADD
45 - Makita SCREW UV380--45-680152560	£2.49	£2.99	ADD
46 - Makita GRASS FLAP ROD UV380--46-682021910	£4.16	£4.99	ADD
47 - Makita SCREW UV380--47-680145990	£2.49	£2.99	ADD
48 - Makita GRASS FLAP UV380--48-684018300	£11.66	£13.99	ADD
49 - Makita SPRING UV380--49-682019770	£4.99	£5.99	ADD
50 - Makita LEFT HANDLE SUPPORT UV380--50-683008010	£5.83	£6.99	ADD
51 - Makita RIGHT HANDLE SUPPORT UV380--51-683008000	£5.83	£6.99	ADD
52 - Makita SUPPORT UV380--52-683018380	£4.99	£5.99	ADD
53 - Makita CABLE CLIP UV380--53-680446340	£3.33	£3.99	ADD
54 - Makita BAR UV380--54-683018360	£15.83	£18.99	ADD
55 - Makita PIN UV380--55-681021908	-	-
56 - Makita LEVER UV380--56-684018390	£5.83	£6.99	ADD
57 - Makita BEARING HOLDER UV380--57-684018480	-	-	No Longer Available
58 - Makita SCREW UV380--58-681022110	£2.49	£2.99	ADD
59 - Makita CABLE CLIP UV380--59-680446330	£1.66	£1.99	ADD
60 - Makita CLAMPING NUT UV380--60-682008490	£4.16	£4.99	ADD
61 - Makita WASHER UV380--61-680340860	-	-
62 - Makita SCREW UV380--62-680184540	£2.49	£2.99	ADD
63 - Makita LOWER HANDLE UV380--63-683018410	£29.99	£35.99	ADD
64 - Makita UPPER HANDLE UV380--64-683021960	£52.49	£62.99	ADD
65 - Makita SWITCH UV380--65-682022160	-	-	No Longer Available
66 - Makita SCREW UV380--66-680101740	£1.66	£1.99	ADD
67 - Makita SCREW UV380--67-681024440	£2.49	£2.99	ADD
68 - Makita ENGINE UV380--68-680028770	£504.99	£605.99	ADD
69 - Makita CLAMP UV380--69-682016350	£2.49	£2.99	ADD
70 - Makita MOTOR BRACKET CPL UV380--70-680035480	£42.49	£50.99	ADD
71 - Makita MOTOR COVER UV380--71-680069340	£44.16	£52.99	ADD
72 - Makita PLASTIC WASHER UV380--72-680035590	£4.99	£5.99	ADD
73 - Makita STRAIN RELIEFT CABLE UV380--73-680409570	£4.99	£5.99	ADD
74 - Makita NUT UV380--74-680146410	£2.49	£2.99	ADD
75 - Makita WASHER UV380--75-680145480	£2.49	£2.99	ADD
76 - Makita CAPACITOR UV380--76-680247600	£50.83	£60.99	ADD
77 - Makita CROSSBAR UV380--77-683024310	£10.83	£12.99	ADD
78 - Makita CLIP UV380--78-682017440	£2.49	£2.99	ADD
79 - Makita SCREW UV380--79-681024450	£2.49	£2.99	ADD
80 - Makita BUSH UV380--80-682025460	£3.33	£3.99	ADD
81 - Makita WASHER UV380--81-680145480	£2.49	£2.99	ADD
82 - Makita SCREW UV380--82-680140510	£1.66	£1.99	ADD
83 - Makita INSERT INSULATING MOTOR SCREWS UV380--83-680035580	£4.16	£4.99	ADD
84 - Makita INSULATING CAP UV380--84-680035600	£3.33	£3.99	ADD
85 - Makita INSULATING CAP UV380--85-680035610	£3.33	£3.99	ADD
101 - Makita GRASS BAG UV380--101-682043180	-	-
101 - Makita FRAME UV380--101-683018550	£29.99	£35.99	ADD
102 - Makita H.H. SCREW UV380--102-680172960	£2.49	£2.99	ADD
113 - Makita SIDE PROTECTION UV380--113-680075380	-	-
114 - Makita SCREW UV380--114-680147470	£2.49	£2.99	ADD
115 - Makita BOLT WASHER UV380--115-680147740	£1.66	£1.99	ADD
116 - Makita SELF-LOCKING NUT UV380--116-680140270	£1.66	£1.99	ADD
