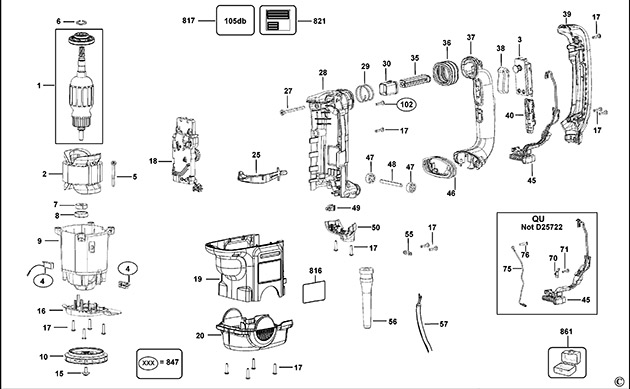

DeWalt D25712K Type 1 Rotary Hammer Spare Parts

D25712K

	(Ex VAT)	Inc VAT
1 - DeWalt ARMATURE 230V D25712K-1-1-489251-00	£111.66	£133.99	ADD
1 - DeWalt ARMATURE 120V D25712K-1-1-489252-00	£111.66	£133.99	ADD
2 - DeWalt FIELD 230V D25712K-1-2-489254-00	£35.83	£42.99	ADD
2 - DeWalt FIELD 115V D25712K-1-2-489255-00	£37.49	£44.99	ADD
3 - DeWalt SWITCH D25712K-1-3-587274-00	£34.16	£40.99	ADD
4 - DeWalt BRUSH PAIR 230V D25712K-1-4-489256-00	£15.83	£18.99	ADD
4 - DeWalt BRUSH PAIR 115V D25712K-1-4-489257-00	£19.16	£22.99	ADD
5 - DeWalt SCREW D25712K-1-5-330019-30	£1.66	£1.99	ADD
6 - DeWalt RING D25712K-1-6-577746-00	£1.66	£1.99	ADD
7 - DeWalt BEARING D25712K-1-7-577745-00	£8.33	£9.99	ADD
8 - DeWalt SLEEVE INSULATING D25712K-1-8-590191-00	£1.66	£1.99	ADD
9 - DeWalt HOUSING MOTOR D25712K-1-9-N053063-02	£29.16	£34.99	ADD
10 - DeWalt FAN SA D25712K-1-10-1006393-00	£12.49	£14.99	ADD
10 - DeWalt FAN SA D25712K-1-10-N542569	£12.49	£14.99	ADD
15 - DeWalt SCREW D25712K-1-15-324119-02	£1.66	£1.99	ADD
16 - DeWalt [NO LONGER AVAILABLE] BAFFLE FAN D25712K-1-16-N029959	-	-	No Longer Available
17 - DeWalt SCREW D25712K-1-17-330065-08	£1.66	£1.99	ADD
18 - DeWalt GACC MODULE 230V D25712K-1-18-N053977	£125.83	£150.99	ADD
18 - DeWalt GACC MODULE 115V D25712K-1-18-N053978	£125.83	£150.99	ADD
19 - DeWalt MOTOR COVER D25712K-1-19-N022762-00	£15.83	£18.99	ADD
20 - DeWalt END CAP D25712K-1-20-N027971	£14.16	£16.99	ADD
25 - DeWalt LEVER SA D25712K-1-25-N081352	£7.49	£8.99	ADD
26 - DeWalt CLIP D25712K-1-26-1007484-00	-	-	No Longer Available
27 - DeWalt SCREW D25712K-1-27-1005672-00	£1.66	£1.99	ADD
28 - DeWalt SUPPORT PLATE D25712K-1-28-N026163-00	£18.33	£21.99	ADD
29 - DeWalt SPRING D25712K-1-29-1007569-00	£1.66	£1.99	ADD
30 - DeWalt BUSH D25712K-1-30-1007567-00	£1.66	£1.99	ADD
35 - DeWalt STOP D25712K-1-35-1007566-00	£9.99	£11.99	ADD
36 - DeWalt BELLOWS D25712K-1-36-1007565-00	£4.16	£4.99	ADD
37 - DeWalt SWITCH HANDLE D25712K-1-37-1006579-00	£9.16	£10.99	ADD
38 - DeWalt TRIGGER D25712K-1-38-587114-01	£1.66	£1.99	ADD
39 - DeWalt HANDLE COVER D25712K-1-39-1006580-00	£14.99	£17.99	ADD
40 - DeWalt TRIGGER LOCK-ON D25712K-1-40-N019514	£23.33	£27.99	ADD
45 - DeWalt SET OF LEAD WIRES D25712K-1-45-N041833	£24.16	£28.99	ADD
46 - DeWalt BELLOWS D25712K-1-46-1008678-00	£3.33	£3.99	ADD
47 - DeWalt BUSH D25712K-1-47-N038214	£1.66	£1.99	ADD
48 - DeWalt [NO LONGER AVAILABLE] PIN D25712K-1-48-N062047	-	-	No Longer Available
49 - DeWalt LENS D25712K-1-49-N030728	£2.49	£2.99	ADD
50 - DeWalt COVER D25712K-1-50-1008391-00	£2.49	£2.99	ADD
55 - DeWalt CORD CLAMP D25712K-1-55-821070	£1.66	£1.99	ADD
56 - DeWalt CORD PROTECTOR D25712K-1-56-323091-01	£1.66	£1.99	ADD
57 - DeWalt CORDSET D25712K-1-57-324438-90	£46.66	£55.99	ADD
57 - DeWalt CORDSET D25712K-1-57-582319-42	£34.16	£40.99	ADD
58 - DeWalt TORX SCREW D25712K-1-58-324007-11	£1.66	£1.99	ADD
100 - DeWalt DETENT D25712K-1-100-326467-00	£1.66	£1.99	ADD
101 - DeWalt MICRO SWITCH D25712K-1-101-N019533	£15.83	£18.99	ADD
102 - DeWalt TORX SCREW D25712K-1-102-324007-11	£1.66	£1.99	ADD
103 - DeWalt FILTER D25712K-1-103-488067-00	£1.66	£1.99	ADD
104 - DeWalt COVER GEARCASE D25712K-1-104-N027968	£9.99	£11.99	ADD
105 - DeWalt O RING D25712K-1-105-323711-56	£1.66	£1.99	ADD
106 - DeWalt O RING D25712K-1-106-323711-48	£1.66	£1.99	ADD
107 - DeWalt ECCENTRIC D25712K-1-107-586032-00	£1.66	£1.99	ADD
108 - DeWalt SPRING D25712K-1-108-323395-32	£2.49	£2.99	ADD
109 - DeWalt SLIDER D25712K-1-109-N027969	£4.16	£4.99	ADD
110 - DeWalt SELECTOR D25712K-1-110-586038-00	£1.66	£1.99	ADD
111 - DeWalt [NO LONGER AVAILABLE] COVER-TOP D25712K-1-111-585168-02	-	-	No Longer Available
112 - DeWalt [NO LONGER AVAILABLE] PISTON KIT D25712K-1-112-488689-00	-	-	No Longer Available
112 - DeWalt PISTON KIT D25712K-1-112-N079389	-	-	No Longer Available
113 - DeWalt RETAINER D25712K-1-113-N027970	£1.66	£1.99	ADD
116 - DeWalt CLIP D25712K-1-116-N029957	£1.66	£1.99	ADD
117 - DeWalt O RING D25712K-1-117-584703-00	£4.99	£5.99	ADD
118 - DeWalt CRANKSHAFT D25712K-1-118-488687-00	£76.66	£91.99	ADD
118 - DeWalt CRANKSHAFT D25712K-1-118-N090947	£99.99	£119.99	ADD
118 - DeWalt CRANKSHAFT D25712K-1-118-N513280	£99.16	£118.99	ADD
119 - DeWalt O RING D25712K-1-119-323711-26	£1.66	£1.99	ADD
120 - DeWalt HOUSING SA D25712K-1-120-N079379	£191.66	£229.99	ADD
130 - DeWalt O RING D25712K-1-130-577744-07	£1.66	£1.99	ADD
131 - DeWalt SLIDER D25712K-1-131-586034-00	£2.49	£2.99	ADD
132 - DeWalt CYLINDER SA D25712K-1-132-N079394	£64.99	£77.99	ADD
135 - DeWalt BUSH D25712K-1-135-584715-00	£3.33	£3.99	ADD
136 - DeWalt O RING D25712K-1-136-584706-00	£3.33	£3.99	ADD
137 - DeWalt RAM D25712K-1-137-489180-00	£23.33	£27.99	ADD
139 - DeWalt BUSH D25712K-1-139-478650-00	£2.49	£2.99	ADD
140 - DeWalt SPRING D25712K-1-140-584726-00	£2.49	£2.99	ADD
150 - DeWalt SLEEVE D25712K-1-150-489181-01	£44.99	£53.99	ADD
151 - DeWalt BEVEL GEAR D25712K-1-151-N079396	£84.16	£100.99	ADD
152 - DeWalt SPACER D25712K-1-152-479974-00	£1.66	£1.99	ADD
153 - DeWalt GEAR D25712K-1-153-488688-00	£10.83	£12.99	ADD
154 - DeWalt BEARING,BALL D25712K-1-154-577745-02	£7.49	£8.99	ADD
155 - DeWalt BEARING,NEEDLE D25712K-1-155-586301-00	£9.99	£11.99	ADD
156 - DeWalt BEARING BRASS BUSH D25712K-1-156-489239-00	£4.16	£4.99	ADD
157 - DeWalt SEAL D25712K-1-157-586022-00	£2.49	£2.99	ADD
158 - DeWalt Authentic BEARING D25712K-1-158-330003-39	£3.33	£3.99	ADD
159 - DeWalt SEAL D25712K-1-159-327141-08	£5.83	£6.99	ADD
160 - DeWalt COVER GEARCASE D25712K-1-160-N079386	£36.66	£43.99	ADD
161 - DeWalt PIN D25712K-1-161-586392-00	£2.49	£2.99	ADD
162 - DeWalt SEAL D25712K-1-162-586403-00	£1.66	£1.99	ADD
165 - DeWalt CLUTCH SA D25712K-1-165-N079392	£189.16	£226.99	ADD
192 - DeWalt RETAINER D25712K-1-192-488097-00	£4.99	£5.99	ADD
193 - DeWalt SPRING D25712K-1-193-488096-00	£1.66	£1.99	ADD
194 - DeWalt AXLE D25712K-1-194-586436-00	£2.49	£2.99	ADD
195 - DeWalt COUNTERWEIGHT D25712K-1-195-490613-00	£32.49	£38.99	ADD
196 - DeWalt RETAINER D25712K-1-196-488098-00	£4.99	£5.99	ADD
200 - DeWalt SEAL D25712K-1-200-487238-01	£8.33	£9.99	ADD
201 - DeWalt RING D25712K-1-201-487205-00	£1.66	£1.99	ADD
202 - DeWalt WASHER D25712K-1-202-487241-00	£9.99	£11.99	ADD
203 - DeWalt RUBBER D25712K-1-203-487244-00	£4.16	£4.99	ADD
204 - DeWalt SLEEVE D25712K-1-204-487236-00	£8.33	£9.99	ADD
205 - DeWalt LOCKING RING D25712K-1-205-579784-00	£24.16	£28.99	ADD
206 - DeWalt SPRING D25712K-1-206-487218-00	£1.66	£1.99	ADD
207 - DeWalt KEY D25712K-1-207-489672-00	£7.49	£8.99	ADD
208 - DeWalt BUSH D25712K-1-208-487249-00	£9.99	£11.99	ADD
209 - DeWalt GUIDE BUSH D25712K-1-209-590377-00	£1.66	£1.99	ADD
210 - DeWalt SPRING D25712K-1-210-487216-00	£1.66	£1.99	ADD
220 - DeWalt GUIDE D25712K-1-220-584696-00	£3.33	£3.99	ADD
221 - DeWalt COVER D25712K-1-221-585167-01	£7.49	£8.99	ADD
223 - DeWalt SCREW D25712K-1-223-949886-32	£1.66	£1.99	ADD
224 - DeWalt LIP SEAL D25712K-1-224-327141-07	£3.33	£3.99	ADD
225 - DeWalt BEARING SET D25712K-1-225-488679-00	£23.33	£27.99	ADD
226 - DeWalt RING D25712K-1-226-488787-00	£1.66	£1.99	ADD
227 - DeWalt HOUSING FRONT D25712K-1-227-488678-00	£44.99	£53.99	ADD
228 - DeWalt BUSH D25712K-1-228-589096-00	£2.49	£2.99	ADD
229 - DeWalt DAMPER D25712K-1-229-589223-00	£1.66	£1.99	ADD
230 - DeWalt BUSH D25712K-1-230-584727-00	£2.49	£2.99	ADD
240 - DeWalt O RING D25712K-1-240-488546-00	-	-	No Longer Available
250 - DeWalt SPINDLE SA [No Longer Available] D25712K-1-250-488676-00	£158.33	£189.99	ADD
251 - DeWalt SEAL D25712K-1-251-N014007	£10.83	£12.99	ADD
252 - DeWalt O RING D25712K-1-252-1005597-00	£3.33	£3.99	ADD
253 - DeWalt BEARING D25712K-1-253-488685-00	£23.33	£27.99	ADD
254 - DeWalt BEAT PIECE D25712K-1-254-488681-00	£35.83	£42.99	ADD
255 - DeWalt WASHER D25712K-1-255-488680-00	£9.99	£11.99	ADD
256 - DeWalt O RING D25712K-1-256-577744-06	£8.33	£9.99	ADD
257 - DeWalt BUSH D25712K-1-257-488686-00	£18.33	£21.99	ADD
260 - DeWalt HANDLE SA D25712K-1-260-N083965	£68.33	£81.99	ADD
261 - DeWalt CLAMPING INSERT D25712K-1-261-N021312	£5.83	£6.99	ADD
262 - DeWalt HANDLE D25712K-1-262-N114828	£37.49	£44.99	ADD
263 - DeWalt LOCKING RING D25712K-1-263-326553-00	£4.99	£5.99	ADD
264 - DeWalt CLAMP D25712K-1-264-479333-00	£10.83	£12.99	ADD
265 - DeWalt BUSH D25712K-1-265-326552-00	£7.49	£8.99	ADD
266 - DeWalt PIN D25712K-1-266-N079374	£1.66	£1.99	ADD
800 - DeWalt GREASE 80 GMS D25712K-1-800-578970-04	£54.99	£65.99	ADD
800 - DeWalt GREASE 150 GMS D25712K-1-800-578970-06	£54.99	£65.99	ADD
816 - DeWalt [NO LONGER AVAILABLE] BRAND LABEL D25712K-1-816-N061824	-	-	No Longer Available
817 - DeWalt LABEL D25712K-1-817-487395-01	£1.66	£1.99	ADD
821 - DeWalt RATING PLATE D25712K-1-821-N049498	£9.99	£11.99	ADD
821 - DeWalt RATING PLATE D25712K-1-821-N049499	£3.33	£3.99	ADD
836 - DeWalt S.T.CIRCLIP REMOVER D25712K-1-836-559651-99	£789.16	£946.99	ADD
836 - DeWalt S.T.CIRCLIP REMOVER D25712K-1-836-559652-99	£70.83	£84.99	ADD
837 - DeWalt S.T.BEARING EXTRACTOR D25712K-1-837-559653-99	£11.66	£13.99	ADD
838 - DeWalt S.T.BEARING EXTRACTOR D25712K-1-838-559657-99	£58.33	£69.99	ADD
840 - DeWalt S.T.SEAL FITTING TOOL D25712K-1-840-559659-99	£63.33	£75.99	ADD
845 - DeWalt S.T.SUPPORT JIG D25712K-1-845-559656-99	£197.49	£236.99	ADD
847 - DeWalt SERVICE KIT 230V D25712K-1-847-N082644	£124.99	£149.99	ADD
847 - DeWalt SERVICE KIT 120V D25712K-1-847-N082645	£121.66	£145.99	ADD
861 - DeWalt KITBOX D25712K-1-861-N072214	£110.83	£132.99	ADD
